Cable Connectors & Lugs

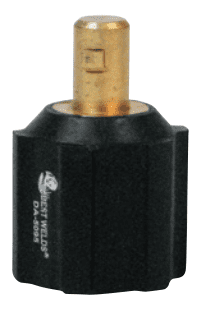

Cable Adapters

Features:
• Adapter from European to American connections.
• Allows interconnection to most other types of US cable connectors.
• Allows complete flexibility.
Connection Type: Camlock
Cable Cap.: 1/0 - 3/0

SKU	Type
900-DA-5095	Adapter from European to American

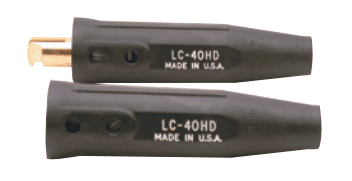

Cable Connectors

Features:
• Designed to efficiently conduct current through detachable-type connection.
• Cam-action design allows lock-in with a twist and pulls the two halves tightly together.
• Metal parts are precision machined from heavy brass extrusion; resists rust and corrosion.
• Moulded Rubber Connector covers have good resistance to heat, cold, abrasion, ozone, oils and solvents.
• Tapered ends lock out moisture, oil, and dirt.
• Male/female connectors are interchangeable with popular like-size competitor models.
Connection Type: Ball Point

SKU	Type	Style	Cable Cap.
900-2-MBP	1 Male and 1 Female Cable Connectors	Male/Female	3/0 - 1/0
900-2-MBP-1	Male Cable Connector	Male	1/0 - 2/0
900-LC-40M	LC40	Male	1/0 - 4/0
900-LC-10	LC10	Male/Female	#1 - 1/0
900-LC-40	LC40	Male/Female	1/0 - 2/0

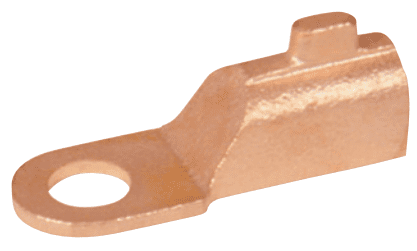

Cable Lugs - Hammer On

Features:
• More robust than a tubular lug.
• No soldering required.
• Heavy-duty cast copper for higher amperage.

SKU	Cable Cap.
900-BW-HOL1020	2/0 AWG - 1/0 AWG
900-BW-HOL3040	4/0 AWG - 3/0 AWG

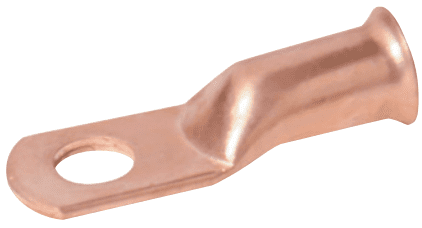

Solder On Lugs

Features:
• Precision made from copper tubing.
• Extra long barrel for easy soldering or possible connection.
• Easy to use, flared-end for easy cable access.

SKU	Cable Cap
900-L-1020	1/0 - 2/0
900-L-62	1/0 - 2/0

Terminal Lugs

Features:
• HD Cast Cu Lug.
• Angle head enables easy connection with male connector.
• For use with 2-MBP connector.
Connection Type: Camlock

SKU	Type
900-2-AF	HD Cast Cu Lug

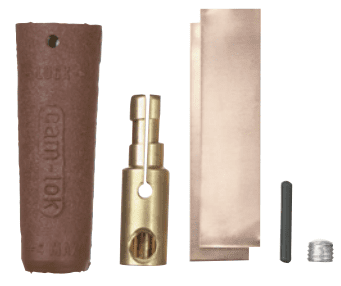

Cooper Cable Connectors

Features:
• Reinforced thermoplastic construction.
• No moving contact surfaces, eliminating arcing or burning.
• Superior electro-mechanical connections.
• Accepts a wide range of cable sizes.
Connection Type: Connector Red Male 8-4
Cable Cap.: #4 AWG - #8 AWG

SKU	Type	Style
627-E1010-61	Single Pole Cable Connector	Male Plug

F Series E1012 Plugs

Features:
• Reinforced thermoplastic construction.
• No moving contact surfaces, eliminating arcing or burning.
• Accepts a wide range of cable sizes.
Cable Cap.: 3/0 - 1/0

SKU	Type	Style	Connection Type
627-E1012-71	Cam-Lok™ Single Pole Connector	F Series E1012 Plug	Set Screw Female Plug
627-E1012-63	Cam-Lok™ Single Pole Connector	F Series E1012 Plug	Set Screw Male Plug

Lug Connectors

Features:
• Provides a positive, vibration-proof connection.
• Superior electro-mechanical connections.
Connection Type: Connector Red Female 2-3/0
Cable Cap.: - #2-3/0 AWG

SKU	Type	Style
627-A201317-1	Female Terminal Connector	Angle

Insulated Cable Lugs

Features:
• Cable lugs give you completely insulated welding machine terminal connections.
• They also give you quick-connect convenience.
• Simple and safe to use.
Connection Type: Terminal Cover

SKU	Type	Style
138-14746	Angled Cable Lug	ULB-45 Uni-Trik

Quik-Trik* Cable Connectors

Features:
• Camlock and locking bar draw together for virtually unbreakable connection.
• Form-fitted rubber jacket insulator protects against moisture, oil and dirt.
• Large dome-nose screw for high-conductivity connection.
Includes: Form-fitted rubber jacket insulator
Connection Type: Single Dome-Nose
Cable Cap.: 2/0 AWG - 1/0 AWG

SKU	Style
138-14733	Male/Female
138-14737	Female
138-14739	Male

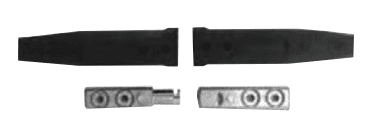

Cable Connectors

Features:
• Cam action design of male half connector pulls the two halves together.
• Connector covers are molded form a special heat- and cold-resistant material.
• Covers have no metal liner to rust or corrode.
• Metal parts are precision machined with heavy specially shaped brass extrusion.

SKU	Connection Type	Cable Cap.
380-05060	Double Oval-Point Screw	4/0 - 3/0
380-05040	Single Oval-Point Screw	4/1/00
380-05041	Single Oval-Point Screw	4/1/00
380-05043	Single Oval-Point Screw	4/1/00
380-05050	Single Oval-Point Screw	2/0 - 1/0
380-05051	Single Oval-Point Screw	2/0 - 1/0
380-05053	Single Oval-Point Screw	2/0 - 1/0
380-05056	Single Oval-Point Screw	2/0 - 1/0

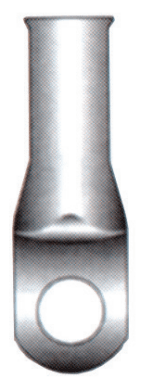

Cable Lugs

Features:
• Made from copper tubing.
• Extra long barrels for easy soldering or attaching by the swedg-on process.
• Stud holes made especially for welding machines with plenty of clearance.
• Flared ends make it easy to insert the cable in the lug.

SKU	Cable Cap.
380-07010	1-2
380-07020	2/0 - 1/0
380-07030	4/0 - 3/0

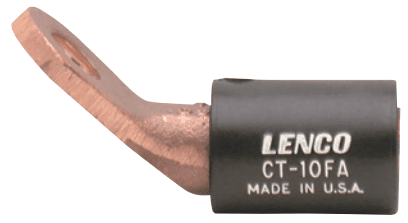

Connector Terminals

Features:
• Add on cable.
• Take off cable.
• Change polarity.

SKU	Type	Style
380-08010	Terminal Connector	Angle
380-08030	Terminal Connector	Angle

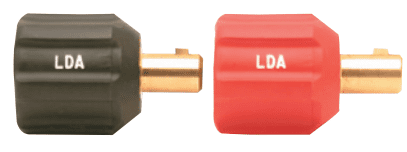

International DINSE Type Machine Plug Adapters

Features:
• Interchangeable with M.K.
• Product (042-465).
• Simple and safe.

SKU	Type	Includes	Connection Type
380-05335	Dinse Male Adapter; Dinse Female Adapter	(1) 05330 Black One Piece Adapter; (1) 05331 Red One Piece Adapter	Dinse Male Adapter; Dinse Female Adapter
380-05330	Dinse Male Adapter	(1) 05330 Black One Piece Adapter	Dinse Male Adapter

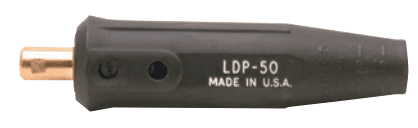

International DINSE Type Machine Plugs

Features:
• Single oval-point screw cable connection.
• Male .508 (12.9mm) diameter.
Connection Type: Single-Oval-Point Screw
Cable Cap.: 4/1/00

SKU	Type
380-05303	Dinse Plug

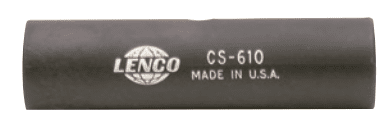

Mechanical Cable Splicers

Features:
• Made from a special brass extrusion.
• Large oval-point steel screws on each end of the splicers make it easy to splice cables in the shop or in the field.
• Tough glass filled nylon sleeve insulates the splicer.
Connection Type: Single Oval-Point Screw

SKU	Cable Cap.
380-06010	6/1/00

Cable Connectors

Features:
• Provides a positive cam action which optimizes interface between connector halves.
• Equipped with heat-and oil-resistant covers.

SKU	Connection Type	Cable Cap.
358-9425-1100	Single Ball-Point	1-Apr
358-9425-1110	Single Ball-Point	1-Apr
358-9425-1200	Single Ball-Point	3/0 - 1/0
358-9425-1210	Single Ball-Point	3/0 - 1/0
358-9425-1220	Single Ball-Point	3/0 - 1/0
358-9425-1400	Double Ball-Point	4/0 - 3/0
358-9425-1410	Double Ball-Point	4/0 - 3/0
358-9425-1140	Single Ball-Point	4/1/00

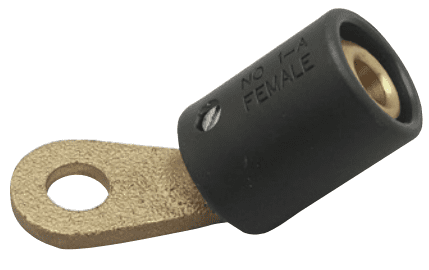

Terminal Connectors

Features:
• Helps improve cutting performance.
• OEM quality.
Connection Type: Female Terminal Connector

SKU	Type
358-9510-1100	Female Terminal Connector
358-9510-1110	Female Terminal Connector

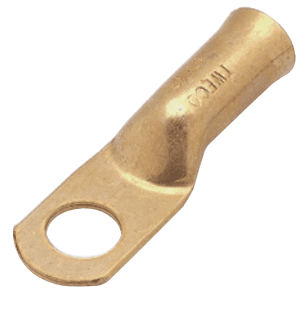

TwecoLugs® Crimp/Solder Lugs

Features:
• Safe and simple.
• Crimp or solder power cable lug.

SKU	Type	Style	Connection Type	Cable Cap.
358-9520-1104	Lug Cable Connector	T-62	Female Plug	2-Jun
358-9520-1105	Lug Cable Connector	T-120	Female Plug	2/0 - 1/0
358-9520-1103	Lug Cable Connector	T-46	—	4-Jun
358-9520-1107	Lug Cable Connector	T-3040	—	4/0 - 3/0

WeldSkill® Cable Connectors

Features:
• A positive cam action locking design which optimizes interface between connector halves.
• Thermoplastic Elastomer covers having a V rating of 0.
• Heat- and oil-resistant covers.
• Furnished with zinc plated cover and ball-point screws.
Cable Cap.: 3/0 - 1/0

SKU	Type
358-9425-1225	Cable Connector
358-9425-1226	Cable Connector

Cable Covers

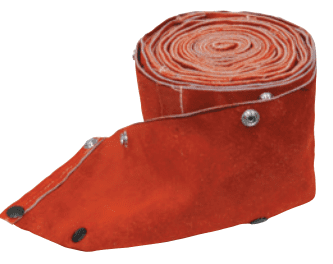

Cable Covers with Snaps

Features:
• Convenient snaps secure the cover to the cable assembly.
• Sewn with durable Kevlar thread for added strength.
• Can also be used for extra protection on welding and cutting torches.
Material: Leather
Applications: TIG
Resistance: Heat

SKU	Size Group	Length
900-2038CC	Small	20 ft

Cable Covers with Zipper

Features:
• Non-conductive zipper with an overlap flap protects the zipper from weld splatter.
• Special “snug-straps” serve as a cinching mechanism at both ends of the cable cover.
• Tabs secure the cover to the cable assembly.
Closure Type: Zipper
Material: Black Nylon
Applications: TIG; MIG
Resistance: Abrasion; Chemical; Ultraviolet Light; Tear

SKU	Size Group	Length	Wt.
900-WC-3-22	Small	22 ft	1.41 lb
900-WC-4-22	Large	22 ft	1.8 lb

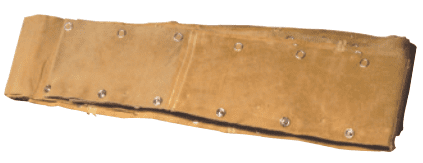

TIG Cable Covers

Features:
• Kevlar® stitching prevents wear and tear due to heat.
• Durable select shoulder split cowhide.
Closure Type: Snap
Material: Leather
Resistance: Heat

SKU	Size Group	Length
900-Q-19	Large	22 ft

Centering Heads

Features:
• Aids in setting of center lines, establishing angles and marks for butt-ins, location points inside pipes and tanks, laying out keyways, and measuring declivity.
• The Y-type head is fitted with an adjustable dial bubble protractor (DSL).
• Use a tapping hammer to operate the hardened centering pin.
Head Type: Y-Type

SKU	Pipe Cap.	Head Width	Type
430-14776	1 in - Larger	8 in	#7 Jumbo Centering Head; DSL
430-14775	1/2 in - 4 in	4 in	#6 Standard Centering Head; DSL

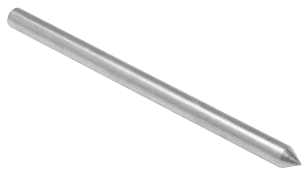

Replacement Pin for Centering Head

Features:
• Hardened steel replacement pin for use with Contour® centering head.
• Suitable for marking but not to be used as a center punch.

SKU	Head Type
430-14798	#6 Standard Centering Head

Magnetic Centering Heads with Vial

Features:
• One piece Y-shaped body design with magnetic legs.
• Built-in dial with 2-1/2° increments that turns 360°.
• Hardened center punch marks set position by taping with a hammer.
• Used to establish and mark a centerline at any angle around circumference on a pipe or tank or as a protractor level.
• Excessive heat can damage magnets.
• Keep magnets away from sensitive electronic devices.
Head Type: Y-Shaped

SKU	Pipe Cap.	Type
496-53025-M	1 in - Larger	Small
496-53076-M	6 in - Larger	Medium
496-53085-M	12 in	Large

Cutting & Burning Guides

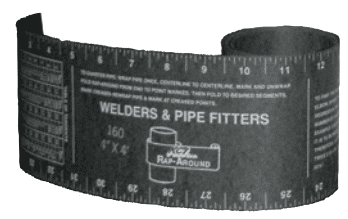

Rap-Arounds

Features:
• Has a tough edge to protect from fraying and splitting which extends the life of the product.
• Clear vinyl container for protection in between jobs.
Resistance: Abrasion; Heat

SKU	Size Group	Width	Length	Pipe Capacity
900-RA160	Medium	4 in	4 ft	3 in - 6 in
900-RA170	Large	4 in	6 ft	3 in - 10 in

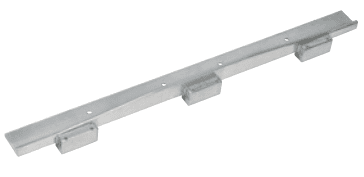

Burning Guides

Features:
• Use with a burning torch or straight edge.
• Base has three 30-pound pull cast-in magnets.
• Withstands heat and spatter.
Length: 24 in
Resistance: Heat and Spatter

SKU	Size Group	Width
430-14791	#28	2 in

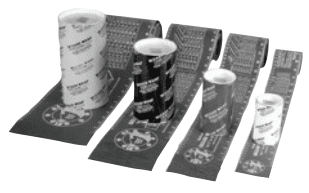

Wrap-A-Rounds

Features:
• Feature metric scale and pitch chart.
• Resists heat and cold.

SKU	Size Group	Width	Length	Resistance	Pipe Capacity
430-14752	Medium	3.88 in	4 ft	Heat-and Cold-Resistant	3 in - 6 in
430-14753	Large	3.88 in	6 ft	Heat-and Cold-Resistant	3 in - 10 in
430-14764	Large	3.88 in	6 ft	Heat-and Cold-Resistant	3 in - 10 in
430-14763	—	—	—	—	—
430-14766	—	—	—	—	—
430-14754	X-Large	5 in	7 ft	Heat-and Cold-Resistant	4 in - 12 in
430-14767	X-Large	5 in	9 ft	Heat-and Cold-Resistant	6 in - 16 in
430-14756	XX-Large	5 in	9 ft	Heat-and Cold-Resistant	6 in - 16 in

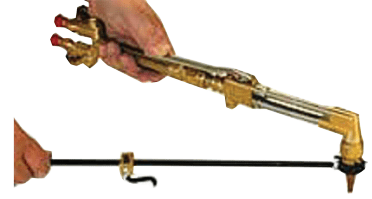

Circle Wiz Cutting Attachments

Features:
• For use with conventional torches to cut small to medium holes.
• Made with a universal brass bushing to adapt to any size or make of cutting torch, for larger circles buy the Chariot Cutting Guide 24219.

SKU	Cutting Diam
496-CW-300	5/8 in - 12 in

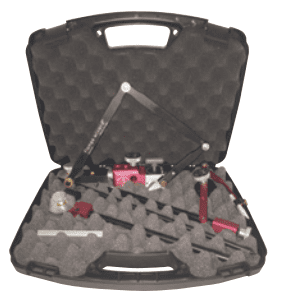

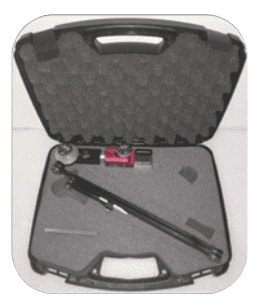

Combo Cases

Features:
• Two complete tools in one case: Miter Marker Arm Assembly #MSA505, Multi-Hole Image
Tower Assembly #MHA515.
• The Miter Marker Arm Assembly #MSA505 allows you to telescope out over existing welds to layout angles or change the angles of pipe-fittings to meet special needs.
• Marking arm is its own 360° rotating shaft with its leveling system built in.
• The Multi-Hole Image Tower Assembly #MHA515 allows layout of elongated holes in bulkheads for pipe at any angle.

SKU	Pipe Capacity
496-MMC505	1 1/2 in - 18 in

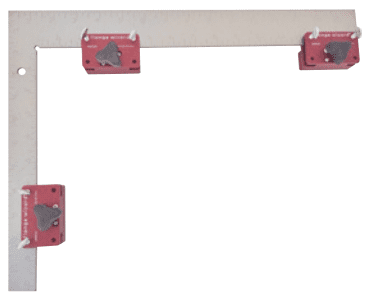

Magnetic Blocks Sets

Features:
• Set of two on/off magnetic blocks.
• Can be attached to any standard square or straight edge.
• Adjustable thumb screws allow you to adjust blocks on straight edges or squares.
Resistance: Heat

SKU	Width
496-MSB202	1/8 in

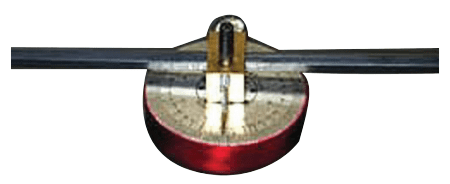

Magnetic Circle Layout & Burning Guides

Features:
• As a circle layout tool with sliding soapstone holder and 360 degree scale on the magnetic base.
• Will cut circles up to 30” in diameter.
• As a circle burning guide use this same tool to cut a round plate.

SKU	Cutting Diam
496-28439	4 in - 30 in

Magnetic Torch Guides

Features:
• Torch guide is composed of straight edge rail and uses magnetic blocks.
• Blocks are slotted on three sides and can be positioned any place along the stainless cutting rail to accommodate any cutting job.
• Utilizes newest on/off magnet technology.
Resistance: Heat

SKU	Length
496-MSG230	24 in
496-MSG230-24	24 in

Master Markers with On/Off Magnet

Features:
• Features newest on/off magnet technology.
• Unique design allows you to telescope out over existing welds to layout angles or change the angles of pipe fittings.
• Designed to accommodate 8 in to 48 in beams or 48 in structural beams.
• Contains 360° rotating shaft with a built-in leveling vial.
• Constructed of anodized aluminum.
Resistance: Rust; Corrosion; Moisture

SKU	Pipe Capacity
496-MML510	8 in - 48 in

Miter Markers

Features:
• Features newest on/off magnet technology.
• Unique design allows you to telescope out over existing welds to layout angles or change the angles of pipe fittings.
• Designed to accommodate 1 1/2 inch to 18 inch pipe.
• Contains 360° rotating shaft with a built-in leveling vial.
• Constructed of anodized aluminum Comes with sturdy polypropylene storage case.
• Simplifies the process of making structural beam layouts and marking angles or saddles on pipe.
Resistance: Rust; Corrosion; Moisture

SKU	Pipe Capacity
496-MMS505	1 1/2 in - 18 in

Multi-Purpose Chariot Cutting Guides

Features:
• Will assist you in cutting straight, irregular shapes, and holes.
• Plated steel construction at heat stress points.
• Universal bushing fits all conventional torches.

SKU	Cutting Diam
496-24219	5/8 in - 39 in

Multi-Use Magnetic Angle Burning Guides

Features:
• Magnetic base is for use with conventional or plasma torch to assist in making excellent angle or straight cuts every time.
• Can be used as a protractor or multi-angle tri-square.
• Guide will hold any standard square as well as most straight edges.

SKU	Length
496-ABG750	16 in

Plasma Cutting Guides

Features:
• Straight cuts.
• Cuts holes.
• Chamfer edges.
• Has wheels for stability.
Cutting Diam: 5/8 in - 36 in

SKU	Width
496-PG-601-1.007	—
496-PG-601-1.200	—
496-PG-601-1.070	2.875 in

Wizard Burning Guide Kits

Features:
• Assortment of burning guide and accessory tools.
• Sturdy lockable case with snapping latches to protect tools when not in use.
Resistance: Heat

SKU	Cutting Diam
496-8910	5/8 in - 30 in

Wizard Wraps

Features:
• Wizard wrap, made from a non-asbestos, heat resistant material, has a nice thick edge for easier more accurate marking and helps keep your soapstone from slipping.
• 36” tape measure printed on the medium & large Wizard-limits the need for an extra tape measure.
• Circumference & Quartering scale printed on every wrap-limits the need for calculation.

SKU	Size Group	Width	Length	Resistance	Pipe Capacity
496-WW-16	Small	2 5/8 in	30 in	Heat	1 in - 6 in
496-WW-17	Medium	3 7/8 in	60 in	Heat	2 in - 16 in
496-WW-17A	Large	5 1/4 in	120 in	Heat	6 in - 30 in
496-WW-18A	—	7 in	—	—	—
496-WW-19	Extra Large	7 in	180 in	Heat	12 in - 48 in

Standoff Guides

Features:
• Consistent standoff improves cut quality and maximizes overall performance.
• Helps maintain a consistent height off the work piece.
• Specifically designed to optimize torch standoff on Custmaster 1Torch series plasma cutters.

SKU
365-9-8281

Cylinder & Caps

Disposable Butane Cylinders

Features:
• Ideal for light or detailed soldering.
• For use with BernzOmatic® Micro Torches.
Inlet Connection: Universal
Capacity Vol.: 5 oz

SKU	Type	Gas Type
189-1764293	Disposable Cylinder	Butane

Propane Cylinders

Features:
• Ideal for general soldering.
• Reliable.
Capacity Vol.: 16.40 oz

SKU	Type	Gas Type
189-327774	Refillable Cylinder	Propane

Cylinder Caps

Features:
• Sturdy cylinder cap with outstanding thread quality.
• Easy and quick installation and removal.

SKU	Gas Type	Wt.
900-BSW-1957	High Pressure	2.15 lb
900-BSW-1955	Acetylene	2.12 lb

Disposable Cylinders

Features:
• Fits most standard propane torches and other propane appliances.
• Contains a composition of propylene.
Capacity Vol.: 16 oz

SKU	Gas Type
328-QLM-PRO	MAPP

MAP-Pro™ Gas Replacement Cylinders

Features:
• Gas replacement cylinder is ideal for HVAC, hobbyist, and light fabrication.
• Non-refillable, disposable cylinder.
• Can be used with TurboTorch® dual hand torches.
Inlet Connection: CGA 600
Capacity Vol.: 14.1 oz

SKU	Type	Gas Type
341-0916-0122	Non-Refillable; Disposable	MAP-Pro

Map-Pro Hand Torch Cylinders

Features:
• Ideal for medium to heavy soldering and brazing.
• Flame temperature in air is 3600 degrees F.

SKU	Gas Type
870-332477	Propane

TX 9 Propane Cylinders

Features:
• Ideal for general soldering.
• Flame temperature in air is 3450 degrees F.
Capacity Vol.: 14.1 oz

SKU	Gas Type
870-304182	Propane

Cylinder Pliers & Wrenches

Tank Wrenches

Features:
• Forged tank wrenches fit most valve stems and gas connections.
• Socket-holes are deep, smooth, and precisely sized for solid connections.
• Larger handles for firm grip and better leverage.
Material: Steel

SKU	Opening Size	Length	Used With
900-00W5	3/16 in	3.19 in	Acetylene Valves
900-W1013	7/8 in; 1 1/8 in	8.5 in	Regulators; Torches; Commercial Acetylene Cylinders

Cylinder Wrenches

Features:
• Used with D and E cylinders.
• Includes security chain.
Material: Metal

SKU	Used With
312-MCW-2BC	D and E Cylinders

Dry Rod Oven Parts

Repair Parts - Heating Element Kits

Features:
• Keeps electrode oven operating at top performance level.
• Tubular metal sheet twin heating elements are easily accessed for replacement.

SKU	Used With
382-1250500	DryRod Type 300 Oven

Repair Parts - Locking Power Cords

Features:
• Locks into base of oven for a secure fit.
• cord not hard-wired for easy replacement.

SKU	Used With
382-1257540	DryRod Portable Ovens

Dry Rod Ovens

Electrode Ovens

Features:
• Includes external thermostat control.
• Each oven is tested and heated to rated temperature before shipping.
Temp. Range: 175 °F - 300 °F
Chamber Size: 3 in Dia x 19.5 in Depth
Voltage: 110 V
Phase: Single
Cord Length: 6 ft
Includes: Analog Thermostat
Insulation Thickness: 1 in

SKU	Capacity Wt.	Size Electrode Handled
900-BW-ELECTRODE-OVEN-ET	10 lb	18 in

Rod Ovens

Features:
• 5 ft heavy-duty power cord.
• Handles 10 in - 18 in size electrodes.
• 1 in glass fibre batt insulation.
Temp. Range: - 300 °F
Voltage: 120/230 V
Phase: Single
Cord Length: 5 ft
Digital Thermometer: Preset Thermostat
Insulation Thickness: 1 in

SKU	Capacity Wt.	Size Electrode Handled	Chamber Size	Includes	Watts
380-01910	10 lb	18 in	3.5 in Dia x 19 in Depth	Removable Rod Holding Basket	300 W
380-01950	50 lb	18 in	6 in Dia x 19 in Depth	Removable Divider	500 W

DryRod® Portable Electrode Ovens

Features:
• Removable locking cord allows easy replacement.
• Spring latch tightly secures an insulated lid for maximum efficiency.
Test & Approvals: CE; ETL; cETL
Phase: Single
Cord Length: 10 ft
Insulation Thickness: 1 1/2 in

SKU	Capacity Wt.	Size Electrode Handled	Chamber Size	Digital Thermometer	Watts
382-1205500	10 lb	14-18 in	2.88 in Dia x 19 3/4 in Depth	No	60 W
382-1205510	20 lb	18 in	3 7/8 in Dia x 19 3/4 in Depth	Yes	70 W
382-1205522	50 lb	18 in	8 in Dia x 19 3/4 in Depth	No	300 W
382-1205520	50 lb	18 in	8 in Dia X 20 in Depth	Yes	300 W

DryRod® Type 300 Bench Electrode Ovens

Features:
• Circular oven chamber promotes airflow and consistent heating.
• Thermostatic control.
Test & Approvals: CE; ETL; cETL
Temp. Range: 100 °F - 550 °F
Chamber Size: 18 in Dia x 19 in Depth
Phase: Single
Cord Length: 10 ft
Insulation Thickness: 2 in
Watts: 1,000 W

SKU	Capacity Wt.	Size Electrode Handled	Voltage	Digital Thermometer	Wt.
382-1200200*	400 lb	18 in	120 V; 240 V	No	105 lb
382-1200201	400 lb	18 in	120/240 V	Yes	115 lb

*382-1200200–Thermometer not included.

Ground Clamps

MGC Magnetic Ground Clamps

Features:
• For heavier application.
• Heavy-duty pads come with classic rail profiles and a range of clamp openings that will meet most needs.
• Liquid aluminum paste can be shaped, brushed or sprayed.
• Dries to solid aluminum overnight and can be drilled, tapped, milled or ground.
• Thinner solvent for lab metal for painting/spraying.
• Ground clamps only need base surface metal for clamping.

SKU	Amps
013-MGC-2	250
013-MGC-1	250

Ground Clamps

Features:
• Contoured handle lever for easy jaw opening.
• Large contact area assures positive grounding.
• Conductor body holds the cable securely.

SKU	Amps	Cable Cap.	Jaw Opening	Throat Depth
900-TGC-500	200 A	#2	1 in	2.64 in
900-TGC-200	200 A	1/0	2 in	3.5 in
900-GC-300	300 A	1/0	1 5/8 in	—
900-LGC-300	300 A	1/0-3/0 AWG	1.5 in	3 in
900-TGC-300	300 A	3/0	2 in	3.86 in
900-LGC-500	500 A	2/0-4/0 AWG	1.5 in	3 1/2 in

Magnetic Ground Clamps

Features:
• Large contact area for optimum electrical contact.
• Superior gripping power.
• Insulated to prevent annealing.

SKU	Amps	Cable Cap.
900-MGC-300	300 A	1-1/0
900-MGC-500	500 A	2/0-4/0

Steel Ground Clamps

Features:
• Galvanized steel plated.
• Large hex screw cable connection assures safe cable connection every time.
• Pure copper braided shunts allows both jaws to carry welding current.

SKU	Amps	Cable Cap.	Jaw Opening	Throat Depth
900-EG-300	300 A	1/0	1.5 in	4.57 in
900-EG-500	500 A	3/0	2 in	6.2 in

Ground Clamps

Features:
• Large contact areas, high-clamping pressure and long-levered handles for easy jaw opening.
• Clamps have fully insulated pivots and springs.
• The cable jacket is held securely inside the conductor body with a cable bar for improved holding ability and longer cable life.

SKU	Amps	Jaw Opening
138-14730	200 A	1 1/4 in
138-14731	300 A	1 5/8 in
138-14732	500 A	2 in

“G” Ground Clamps

Features:
• Reduce voltage drop.
• The design maximizes surface contact area which provides cool and efficient operation.
Jaw Opening: 3 3/8 in
Throat Depth: 3 1/8 in

SKU	Amps	Cable Cap.
380-02060	600 A	3/0 - 4/0

Economy Ground Clamps

Features:
• Reduces energy costs.
• Extends cable life.
• Allows ground location to be easily changed.
Jaw Opening: 2 in

SKU	Amps
380-02040	300 A
380-02050	500 A

Insulated Spring Clamps

Features:
• Tough brass hinge pin is durable and allows both jaws to carry current.
• Enclosed heavy-duty spring assures a powerful bite on the work.
• Insulation on top and bottom jaws provides extended spring life.

SKU	Amps	Cable Cap.	Jaw Opening
380-02021	300 A	1/0 - 2/0	1 1/2 in
380-02031	500 A	3/0 - 4/0	2 in

MIG-300/MIG-600 Ground Clamps

Features:
• Designed especially for the MIG welding process.
• Powerful bite and swivel pad allow for low resistance ground connections.
• The 5/16 in copper coated steel T-handle makes it easy to apply maximum pressure.
Jaw Opening: 2 in

SKU	Amps	Cable Cap.	Throat Depth
380-02075	300 A	1/0 - 2/0	1 1/8 in
380-02070	600 A	3/0 - 4/0	2 1/8 in
380-02081	600 A	3/0 - 4/0	2 1/8 in

Quality Ground Clamps

SKU	Amps	Cable Cap.	Throat Depth
380-02020	300 A	1/0 - 2/0	—
380-02030	500 A	3/0 - 4/0	3.25 in

On/Off Magnetic Ground Clamps

Features:
• Convenient on/off magnetic ground clamps easily attach to flat or round surfaces.
• Grounds instantly and is quick and easy to connect and disconnect.
• Reusable - saves welders time and money.

SKU	Amps
474-8100552	800 A

Rotary Ground Clamps

Features:
• Rotary head turns with the pipe—puts an end to ground lead twist, tangle and wear.
• Provides quick, positive ground for roll-out welding of pipe and fittings—eliminates weld pinholes caused by poor grounding.
• Makes up ground leads three ways—lug, clamp-on and bare cable.

SKU	Amps
432-780435	400

Ground Clamps

Features:
• Designed primarily to work in conjunction with the Tweco Roto-Ground device.
• May also be used for other high amperage grounding applications.
• Clamp is quickly attached or moved from one rotating weldment or fixture to the other without removing the Roto-Ground from it.
• Saves welding downtime.

SKU	Amps	Cable Cap.	Jaw Opening	Throat Depth
358-9205-1120	200 A	Ball Point - 1/0	1 in	3 in
358-9205-1230	300 A	1/2 in Stud Connection	2 in	1 3/4 in
358-9205-1130	300 A	Ball Point - 3/0	1 1/2 in	4 in
358-9210-1150	500 A	1/2 in Cap Screw	2 1/2 in	1 3/8 in
358-9205-1250	500 A	1/2 in Stud Connection	2 in	1 3/4 in
358-9205-1150	500 A	Ball Point - 4/0	2 in	5 1/4 in
358-9210-1202	600 A	Tweco Male Plug	2 1/2 in	1 3/8 in

Heat Barriers

Bloc-It® Heat Absorbing Pastes

Features:
• Effectively absorbs surface heat.
• Protects adjoining surfaces that may be damaged by excessive heat.
• Safe to use: non‑toxic, no asbestos, harmless to skin, and odorless.
• Easy to clean: wipe off with cloth or wash with water.
• Typical uses: protects rubber and plastic components in ball, dielectric, and solenoid valves during soldering.
• Protects painted or finished surfaces from adjacent soldering, brazing or welding.
Applicable Materials: Rubber, Plastic, Steel, Copper, Aluminum

SKU	Capacity Wt.
434-11511	10 oz

Cool Gel® Heat Barrier Sprays

Features:
• Helps prevent heat damage to components and surrounding materials during soldering, brazing and welding.
• Protects painted and finished surfaces from discoloration due to adjacent torch operations.
• Unique gelled formula sticks to surfaces without dripping or running off.
• Clear, non‑staining gel leaves no residue eliminating clean‑up.
• Safe, non‑toxic, harmless to skin and odorless.
• Reduces danger of fire to surrounding surfaces such as rubber and plastic seals and gaskets.
Applicable Materials: Rubber; Plastic; Copper; Aluminum; Steel

SKU	Capacity Wt.
434-11513	16 oz
434-11509	32 oz

Heat Tint Removal Systems

HTR-30 Heat Tint Removers

Features:
• Effective in chemically removing heat tint and metal discoloration cause by high temperatures within the weld zone on stainless steel.
• High‑percentage hydrofluoric acid formula requires strict adherence to label directions for safe use and disposal.

SKU	Capacity Vol.
368-790-06	19.40 oz

Spoon Applicator Replacement Boots

Features:
• Designed for Dynaflux Heat Tint Removal systems.
• Boot cover slips over the spoon applicator.
• Constructed of flame‑resistant Nomex material.

SKU	Includes
368-HTR120-3	(6) Boots

Rod Holders

200 Rod Bags

Features:
• Constructed of heavy-duty barktan strap leather.
• Heavy-duty steel rivets and hardwood bottom.
• Includes leather divider for organization and belt loop.
Color: Tanned
Resistance: Heat; Abrasion

SKU	Capacity Wt.	Material
902-200	10 lb	Saddle Leather

75 Rod Bags

Features:
• Belt loop.
• Double leather bottom.
• Sewn and riveted.
Color: Brown
Resistance: Heat; Abrasion

SKU	Capacity Wt.	Material
902-75	5 lb	Side Split Cowhide

Rod Bags

Features:
• Double leather construction.
• Kevlar® stitching.
• Holds up to five pounds rods.
Color: Brown
Resistance: Heat; Abrasion

SKU	Capacity Wt.	Material
902-Q-14	5 lb	Leather

Flame-Resistant Electrode Bags

Features:
• Made of flame‑resistant No. 4 canvas.
• Flame resistant, hard‑leather bottom.
• Tunnel loop for sliding over belt.
• Meets the performance requirement of NFPA ‑701.
• Assembled in USA of U.S. and imported components.
Color: Black

SKU	Material
409-5471FR	#4 Canvas

Safetube® Rod Containers

Features:
• Protects electrodes from dirt and moisture.
• Cap requires only a quarter turn for removal.
• Pressure fitted O‑ring maintains a watertight seal.
Color: Yellow
Resistance: Dirt; Water; Dust; Grease

SKU	Capacity Wt.	Material
382-1205441	10 lb	HDPE plastic

Lincoln Electrodes® Canisters

Features:
• Holds up to 10lbs of either 12in or 14in electrodes.
• Withstands temperatures up to 225 degrees Fahrenheit.
Color: Red
Resistance: Atmospheric Moisture

SKU	Capacity Wt.	Material
384-LE100-24	10 lb	HIPE

Polyethylene Canisters

Features:
• Great for storage and inventory control of welding electrodes, rods and filler metals.
• Features threaded cap with neoprene seal to provide airtight protection for electrodes and other materials.
• High‑impact polyethylene construction ensures that canister can be reused for many years.
Resistance: Atmospheric Moisture

SKU	Capacity Wt.	Material	Color
384-SM100-48	10 lb	Polyethylene	Black
384-RG100-24	10 lb	Polyethylene	Blue
384-RG200-24	10 lb	Polyethylene	Blue
384-RG300-12	10 lb	Polyethylene	Blue
384-LE300-12	10 lb	Polyethylene	Red
384-RG100-12HT	10 lb	Polyethylene/Steel	Blue

Rod Guard® Canisters

Color: Gray

SKU	Material
384-RG301-4	Steel

Spark Lighter & Flints

Lightnin’ Bug® Torch Lighters

Features:
• Multi‑spark discharge.
• Ignites almost all industrial fuel gases, such as, oxy‑acetylene, natural gas, propane, methane, and propylene.
• Never needs flints, batteries or recharging.
Wt.: 1.83 lb

SKU	Type	Quantity
900-LIGHTNINBUG	Spark Lighter	10 per box

SL-3F Spark Lighters

Features:
• Triple flint lighter.
• Consistent, reliable sparking.
• Long-lasting.

SKU	Type	Quantity
900-SL-3F	Spark Lighter	5 per pack

SL-E Spark Lighters

Features:
• Single flint lighter.
• Consistent, reliable sparking.
• Long-lasting.

SKU	Type	Quantity
900-SL-E	Spark Lighter	5 per pack

Flints

Features:
• Economically priced and designed for any of the Shurlite® family of flint lighters.
• Guaranteed to fit perfectly on Shurlite® lighters.
• Guaranteed to remain seated in the flint holder.
• Larger size for longer life.

SKU	Type	Quantity	Wt.
322-3021X	Single Flint Renewal	10 per card	0.02 lb
322-3001X	Single Flint Renewal	200 per box	0.01 lb
322-3011X	Single Flint Renewal	5 per card	0.01 lb
322-5003X	Tri-Flint Renewal	1 per card	0.05 lb
322-5012X	Tri-Flint Renewal	4 per card	0.05 lb

Spark Lighters

Features:
• It is constructed using a round cup design, and allows the user to replace the flint when necessary, with our renewal flint.
• Triple‑flint lighter is a quality lighter made for the demands of the welding industry.
• It has a strong frame and with three large flints for dependable ignition under all working conditions.
• Allows user to replace flint when necessary.
• Strong frame and rugged design.

SKU	Type	Quantity	Wt.
322-1501	Flat Lighter	10 per box	0.02 lb
322-1501B	Flat Lighter	100 per carton	0.12 lb
322-710	Shoot-a-Lite Lighter	1 per card	0.24 lb
322-730	Shoot-a-Lite Lighter	1 per card	0.24 lb
322-4501	Tri-Flint Lighter	1 each	0.26 lb
322-5021	Tri-Flint Lighter	1 per card	0.22 lb
322-5011	Tri-Flint Lighter	1 per card	0.26 lb
322-4501B	Tri-Flint Lighter	100 per box	0.23 lb
322-3011	Universal Round Lighter	1 per card	0.17 lb
322-3021	Universal Round Lighter	1 per card	1.13 lb
322-3001	Universal Round Lighter	10 per box	0.22 lb
322-3001B	Universal Round Lighter	100 per carton	0.23 lb

Tip Cleaners

Tip Drill Sets

Features:
• For cleaning welding tip and a variety of other fuel orifices and injectors.
• Knurled aluminum handle.
• Removable cap.
Dia.: 0.0635 in; 0.055 in; 0.0465 in; 0.042 in; 0.04 in; 0.038 in; 0.036 in; 0.033 in; 0.031 in; 0.028 in; 0.025 in; 0.0225 in
Size Group: 52; 54; 56; 58; 60; 62; 64; 66; 68; 70; 72; 74

SKU	Material	Includes
100-TD-3	Carbon Steel	(12) Steel Drills Even Size Group 52-74

Tip Cleaners

Features:
• Constructed of stainless steel.
• Rust‑proof.
• Tapered ends for easy cleaning.
• Includes case with file.
Dia.: 0.014; 0.018; 0.021; 0.024; 0.028; 0.032; 0.035; 0.037; 0.039; 0.042; 0.048; 0.055; 0.062
Size Group: #6 thru #25
Used With: Welding Tips

SKU	Material	Length
900-KTC	Stainless Steel	King
900-STC	Stainless Steel	Standard

King Tool Tip Drills

Features:
• For cleaning welding tips and a variety of other fuel orifices and injectors.
• Drills store neatly in pin vise handle.
• Made in USA.
Size Group: 52‑74

SKU	Includes
422-KTDC	(12) Drills

Magnum Tip Drill Set

Features:
• Longer, uniform length drills.
• Organized, indexed pack shows drill numbers and decimal diameters.
• Made in USA.
Length: 1 7/8 in
Size Group: 52‑74 (Even Numbers)

SKU	Material	Includes
422-KTD01	Stainless Steel	Pin Vise; Indexed Carry Case

Tip Cleaner Kits

Features:
• Uniform ridges wipe and polish the orifice wall.
• Tapered ends allows smooth easy entry without scratching.
• Attractive aluminum case with a contained spool assembly.
• Smooth leader pilot.
• Tangle‑free closed loops.

SKU	Includes	Size Group
326-SP-1	(13) Cleaners; File	26-Jun
326-STANDARD	(13) Cleaners; File	26-Jun
326-STANDARD-IMP	(13) Cleaners; File	26-Jun
326-KING	(13) X-Long Cleaners; File	26-Jun
326-SP-4	(13) X-Long Cleaners; File	26-Jun
326-STANDARD-PLUS	(21) Cleaners; File	26-Jun
326-MASTER	22 Cleaners; File	Jun-45

Tip Re-Surfacing Tools

Features:
• All aluminum housing and shaft.
• Thin tempered cutter.
• Flicks debree and re‑surfaces tip.
Dia.: 5/8 in
Length: 2 3/8 in
Size Group: 26‑Jun
Used With: Welding Tips

SKU	Material	Includes
326-SP-2000	Stainless Steel	(13) Cleaners; File

Water Circulators & Coolants

Coolant Fluids

Features:
• Specially formulated for use in welding circulator and re‑circulator systems.
• Recommended for all plasma, mig, tig, resistance welding systems, and general industrial applications.
• Low conductivity.
Capacity: 1 gal

SKU	Temp Range	Package Type	Color
905-16-25501	19 °F; -7 °C	Bottle	Blue
905-16-25502	6 °F; -14 °C	Bottle	Clear

Welding Blankets, Curtains, & Rolls

Welding & Spark Deflection Paper

Features:
• Deflection paper helps protect vertical surfaces from sparks and spatter.
• Adhesive backing allows for simple installation.
• Re‑positionable to allow for adjustments and repeat uses.
Material: Flame‑Retardant Paper
Color: Brown

SKU	Length	Width
405-051131-05916	150 ft	24 in

Curtain Frames

Features:
• Freestanding, portable curtain frame is easy to assemble and can be used individually or in multiple units to form various configurations.
• Providing sturdiness and strength, square steel tubing and bolted bracket system prevent slipping and twisting.
• Combined with Best Welds safety fabrics, curtain frames provide protection for welding areas, machine shops, grinding and other safety applications.
Material: Steel
Includes: 1 in Square Steel Tubing; Bolted Brackets; 24 in Platform “T” legs; Lacing Ties

SKU	Length	Width
902-CURTAIN-FRAME	6 ft	6 ft

Roll Goods

Features:
• Protects against light sparks and spatter.
• Grommeted and hemmed with fiberglass thread.
Test & Approvals: Approved FM4950 1.4.3. Vertical applications with light‑moderate exposures resulting from chipping, grinding, heat treating, sand blasting, and light horizontal welding
Material: Fiberglass
Includes: Non‑Coated Plain Fiberglass

SKU	Length	Width
902-RG-2025-60	50 yd	60 in

Welding Blankets

SKU	Length	Width	Color	Includes
902-AC2300-24-6X6BLK	6 ft	6 ft	Black	Acrylic Coating
902-2025-18-6x6	6 ft	6 ft	White	Non-Coated Plain Fiberglass
902-AC2300-24-6X6	6 ft	6 ft	Yellow	Acrylic Coating
902-AC2300-24- 6X8BLK	6 ft	8 ft	Black	Acrylic Coating
902-2025-18-6x8	6 ft	8 ft	White	Non-Coated Plain Fiberglass
902-AC2300-24-6X8	6 ft	8 ft	Yellow	Acrylic Coating
902-2025-18-10X10	10 ft	10 ft	White	Non-Coated Plain Fiberglass

Welding Curtains

Features:
• Heavy-duty PVC designed to filter far/near UV radiation and blue light.
• Transparent curtains providing UV and blue light protection when visibility is necessary.
• Curtains are grommeted across top and in each corner.
• Hemmed with high temperature thread.
Includes: PVC Formula to Stop UV and Blue Light

SKU	Length	Width	Color
902-CURTAIN-6X8-GRN	6 ft	8 ft	Green
902-CURTAIN-6X8-ORG	6 ft	8 ft	Orange

See-Thru Orange Welding Curtains

Features:
• Filters 100% of far/near U.V. radiation and blue light.
• Arc image dispersed throughout the curtain.
• Puts light back into welding booth.
• For low to high amperage.
• Made from 14 mil transparent vinyl material.
• Ready to hang.
Material: Vinyl

SKU	Length	Width
138-36292	6 ft	6 ft
138-36307	8 ft	6 ft

Stur-D-Screen Frames

Features:
• Single‑panel frame allows for a variety of configurations to fit multiple work environments.
• Square 19‑guage steel tubing, bolted corner clamps, and platform “T” legs reduce slipping and twisting off the unit.
• Black powder‑coated enamel finish.
• Pre‑drilled for caster installation.
Material: Steel
Includes: Square Steel Frame; Lacing Ties; Platform “T” Legs; Brackets

SKU	Length	Width
138-36336	6 ft	6 ft
138-36338	8 ft	6 ft

Weld-O-Glass Roll Goods

Features:
• Approved for use in vertical applications with light‑moderate exposures resulting from chipping, grinding, heat treating, sand blasting and lilght horizontal welding.
• Prevents sparks from escaping a confined area.
Material: Polyurethane Coated Fiberglass

SKU	Length	Width
138-36149	50 yd	60 in

Welding Blankets

SKU	Length	Width
138-37192	10 ft	10 ft

Welding Cable & Hose Reels

Hose Reels

Features:
• Professional grade heavy-duty steel construction.
• Durable proprietary CPC™ powder coat finish.
• CNC robotically spun and ribbed discs with rolled edges provide strength, safety, and durability.
• Ideal solution for managing bulky twin line welding hose.
Test & Approvals: Meets R.M.A and C.G.A Type V.D Grade R Specifications
Includes: 18” Inlet Assembly; Adjustable Check Ball; 50 ft hose

SKU	Hose O.D.	Hose Length
170-SHW-N-150	17/32 in	50 ft

Twin-Line Welding Hose Reels

Features:
• Dual ported brass swivel is machined from solid and offers both connections from the same side of reel.
• Brake assembly provides adjustable friction to brake or lock the drum.
• Designed for Twin‑Line R‑Grade Oxy‑Acetylene welding hose.
• Durable proprietary CPC™ powder coat finish.
• Made in the U.S.A..
Hose O.D.: 17/32 in
Hose Length: 100 ft

SKU	Type	Hose Type	Wt.	Includes
170-112W-1-100	Hand Crank	Welding Hose	37 lb	Hose
170-112WL-1-100	Hand Crank	Welding Hose (not included)	18 lb	N/A

Welding Cables & Power Cables

Non UL EPDM Welding Cables

Features:
• Heat, abrasion, tear resistant, moisture, and oil resistant.
• Used for secondary voltage resistance welding cable leads, National Electrical Code Article 630 electric welders, and temporary power industrial applications.
Temp Range: ‑58 °F ‑ 221 °F
Jacket Material: Extra Flexible EPDM
Number of Conductors: 1
Voltage: 600 V
Insulation: EPDM
Conductor Material: Bare Copper

SKU	Cable/Wire Description	Amps	Insulation Thickness
911-1X100-BOXED	1 AWG x 100 ft	240 A	0.084 in .08 in
911-1X50-BOXED	1 AWG x 50 ft	240 A	0.084 in .08 in
911-1/0X100-BOXED	1/0 AWG x 100 ft	285 A	0.085 in .08 in
911-1/0X50-BOXED	1/0 AWG x 50 ft	285 A	0.085 in .08 in
911-2X100-BOXED	2 AWG x 100 ft	205 A	0.070 in .08 in
911-2X50-BOXED	2 AWG x 50 ft	205 A	0.070 in .08 in
911-2/0X100-BOXED	2/0 AWG x 100 ft	325 A	0.084 in .08 in
911-2/0X50-BOXED	2/0 AWG x 50 ft	325 A	0.084 in .08 in
911-4X100-BOXED	4 AWG x 100 ft	150 A	0.060 in .06 in
911-4X50-BOXED	4 AWG x 50 ft	150 A	0.060 in

SEOOW Power Cables

Features:
• Color coded conductors for easy identification.
• Chemical characteristics of PVC with low temperature flexibility.
• Seoprene® Thermoplastic Elastomer (TPE) jacketed cords combine lightweight flexibility with mechanical toughness.
Style: Multi‑Conductor; Stranded Conductor
Temp Range: ‑58° F ‑ 221° F
Jacket Material: TPE
Insulation Thickness: 0.06 in
Voltage: 600 V
Insulation: PVC
Conductor Material: Copper

SKU	Cable/Wire Description
911-8/3X250	8/3 AWG x 250 ft
911-8/4X250	8/4 AWG x 250 ft

Welding Cable

Features:
• Custom lengths available.
• Custom assemblies available.
• Resistant to oil, chemicals and solvents.
Temp Range: ‑50 °C ‑ 105 °C
Voltage: 600 V
Insulation: EPR
Conductor Material: 30 AWG Stranded Copper

SKU	Cable/Wire Description	Insulation Thickness
911-1-250	1 AWG x 250 ft	0.084 in
911-1/0X100	1/0 AWG x 100 ft	0.082 in
911-1/0-250	1/0 AWG x 250 ft	0.082 in
911-1/0X50	1/0 AWG x 50 ft	0.082 in
911-2-250	2 AWG x 250 ft	0.065 in
911-2/0-250	2/0 AWG x 250 ft	0.085 in
911-4-250	4 AWG x 250 ft	0.064 in

Welding Cable Kits

Features:
• Chemical and abrasion resistant.
• Sequentially marked every foot.
• Ultra flexible cable.
• Made in USA.
Temp Range: ‑58 °F ‑ 221 °F
Insulation Thickness: 0.08 in
Voltage: 600 V
Insulation: EPDM
Conductor Material: Copper

SKU	Cable/Wire Description	Includes	Style
911-2/0-50-LC40	2/0 AWG x 50 ft	Anchor LC-40 Black Male/Female Connector AB-LC40L; Welding Cable	Welding Cable
LC40 Connectors
911-2/0-100-LC40	2/0 AWG x 100 ft	1 Male Connector; 1 Female Connector; Welding Cable	—

Welding Cables Cut and Fitted

Features:
• Pre‑cut and assembled, which saves on time and labor.
• Tough jacket resists abrasion and chemicals.
• Quality fittings make for a longer lasting assembly.
Temp Range: ‑50 °C ‑ 221 °F
Insulation Thickness: 0.08 in
Voltage: 600 V
Insulation: EPDM
Conductor Material: 30 AWG Stranded Copper

SKU	Cable/Wire Description	Includes
911-2/0-50-2MPC	2/0 AWG x 50 ft	1 Male Connector; 1 Female Connector; Welding Cable

Welding Cables with Foot Markings

Features:
• Convenient welding cables are designed with foot markings printed on cable jacket so you can cut to the precise length needed without measuring.
• Flexible bare copper wire stranding for easy usage.
• Tough jacket resists abrasion and chemicals.
Style: Welding Cable with Foot Markings
Temp Range: ‑58 °F ‑ 221 °F
Jacket Material: TPE
Voltage: 600 V
Insulation: EPDM
Conductor Material: Copper

SKU	Cable/Wire Description	Insulation Thickness
911-1-500	1 AWG x 500 ft	0.06 in
911-2-500	2 AWG x 500 ft	0.06 in
911-2/0-500	2/0 AWG x 500 ft	0.08 in
911-3/0-250	3/0 AWG x 250 ft	0.08 in
911-4-500	4 AWG x 500 ft	0.06 in
911-4/0-250	4/0 AWG x 250 ft	0.08 in

Whip Cables

Features:
• Class M stranding provides the ultimate in flexibility.
• EPR insulation provides outstanding cut and abrasion resistance.
• Resistant to oil, chemicals, water and solvents.
Temp Range: ‑50 °C ‑ 105 °C
Insulation Thickness: 0.084 in
Voltage: 600 V
Insulation: EPR
Conductor Material: Copper

SKU	Cable/Wire Description
911-1/0-500	1/0 AWG x 500 ft
911-2-500-RED	2 AWG x 500 ft

Welding Clamps, Spreaders & Holders

WMS Series Magnetic Squares

Features:
• Fast, simple set‑up.
• 90/45 pre‑set angles.
• Ferrite magnet.
Length: 3‑3/4 in
Height: 4‑3/8 in

SKU	Capacity Wt.
013-WMS-5	112 lb

Multi-Purpose Magnetic Holders

Features:
• Enables fast and accurate holding of any ferrous object.
• Can be utilized as double‑sided holder for welding and assembly work.
• Will hold sheets or tubes at 45°, 90° and 135° angles.
• Compact design allows use in tight places.

SKU	Capacity Wt.	Length	Width	Height
900-M-061	45 lb	4 7/10 in	14/50 in	3 2/5 in
900-M-063	80 lb	6.3 in	4 in	0.63 in
900-M-065	95 lb	9 in	5 in	0.88 in

POP-IT® Flange Spreader Tools

Features:
• Lightweight, easy‑to‑use, durable, and delivers an incredible amount of force.
• Simply insert the toes and turn the ratchet handle.
Length: 9.8 in
Width: 3.7 in
Height: 11.4 in

SKU	Spreading Cap.	Capacity Wt.
306-P95-525	1/16 in - 5 1/4 in	10,000 lb

MagSquare Holders

Features:
• Turns all the way off and stays clean.
• Machined at 90°.
• Magnetic grip on five sides and strong on three sides.
• Pipe notch.
• Use MagSquares to mount workholding jigs.
• Pre‑tapped holes on all sides for mounting.

SKU	Capacity Wt.	Length	Width	Height
474-8100494	165 lb	1.90 in	1.20 in	2.25 in
474-8100238	400 lb	2.17 in	1.62 in	3.55 in
474-8100099	1000 lb	4.25 in	2.83 in	5.8 in
474-8100106	600 lb	5.031 in	2.535 in	4.17 in

Mini Angle Welding Magnets

Features:
• On/Off Mini Angle When off, metal chips fall off.
• Offers 75/105º and 90º angles.
• Strong hold ‑ powered by 80 lb (36 kg) Magswitch.
• Workholding tool that offers 45/135° + 60/120°+ 75/105° + 90° angles.
• Vertical breakaway of 150lbs/67 kg on 1/2” steel.
• Includes a ground connection for dual use ‑ rated to 300 amp.
Test & Approvals: ISO 9001:2008

SKU	Capacity Wt.
474-8100352	90 lb

Mini Multi-Angle Welding Magnets

Features:
• Features patented Magswitch® technology for complete on/off control so steel dust just falls off and you don’t waste time cleaning them or getting metal burrs in your fingers.
• Offers several common angles like 45°, 75°, 90°, 105° and 135°.
• Incredibly strong and powered by Magswitch magnet.
Test & Approvals: ISO 9001:2008

SKU	Capacity Wt.	Length	Width	Height
474-8100350	80 lb	2.8 in	1.2 in	2 1/2 in
474-8100351	150 lb	3 1/2 in	1.6 in	3.4 in

Multi-Angle 400 Magvise

Features:
• Doubles as a work holding angle featuring several common angles, and a quick connect/disconnect magvise for small parts fabrication.
Length: 2.925 in
Width: 2.184 in
Height: 3.8 in

SKU	Capacity Wt.
474-8100438	400 lb

Pivot Angle 200

Features:
• 200 lb grip magnets on each axis.
• Accommodates angles; no helping hands required.
• Indicators in 5 degree increments.
Length: 9.36 in
Width: 3.549 in

SKU	Capacity Wt.
474-8100367	200 lb

Welding Hose & Compressed Gas Fittings

Hose Repair Kits

Features:
• Designed and outfitted to allow timely hose repair in the shop or in the field.
• Display card with the fitting numbers and the compartment location is on both the outside and inside of the case lid for added convenience in selecting and reordering.

SKU	Gas Type	Pressure	Hose I.D.
331-CK-26SP	Fuel	—	1/4 in
331-CK-5SP	—	200 psi	—

Quick Connector Sets

Features:
• Built‑in automatic reset check valve prevents reverse flow of gases by cutting off the gases under back pressure.
• Before disconnection, gas must be shut off at regulators.
• Color codes provide speed and safety.
• QC‑RHF‑A has A‑Connection.
Connection Type: Male/Female
Pressure: 29 psi; 145 psi

SKU	Gas Type
331-QC-HHPRSP	Oxygen
331-QC-HTPRSP	Fuel Gases
331-QC-RHPRSP	Fuel Gases

Barbed Hose Nipples

Features:
• Made from brass to ensure functionality and durability.
• Can accommodate up to 200 psi of pressure.
Pressure: 200 PSIG

SKU	Size	Connection Type	Hose I.D.
312-17	B-Size	Nipple	1/4 in
312-18	B-Size; 3/16 in ID X 1 15/32 in Length	Male	3/16 in
312-20	B-Size	Nipple	3/8 in
312-C-17	C-Size	—	1/2 in
312-C-18	C-Size	—	1/2 in
312-D-18	D-Size	Nipple	3/4 in

Brass Hose Adaptors

Features:
• Made from brass to ensure functionality and durability.
• Can accommodate up to 200 psi of pressure.
• Threads have been manufactured to the highest standards to ensure a tight and secure fitting.
Pressure: 200 PSIG

SKU	Gas Type	Size	Connection Type	Thread Direction
312-103	Oxygen	A-Size; B-Size	Male/Female	RH
312-104	Acetylene/F. Gases	A-Size; B-Size	Male/Female	LH
312-105	Oxygen	B-Size; A-Size	Male/Female	RH
312-106	Acetylene/F. Gases	B-Size; A-Size	Male/Female	LH
312-123	Oxygen	B-Size	Male/Female Swivel	RH
312-253	Oxygen	B-Size	Male/Male	RH
312-254	Acetylene/F. Gases	B-Size	Male/Male	LH
312-541	—	—	NPT Thread/Barb	—
312-543	—	1/4 in (NPT)	NPT Thread/Barb; Male	RH
312-555	—	—	Female/Hose Barb	—

Brass Hose Ferrules

Features:
• Made from brass to ensure functionality and durability.
• Brass hose ferrules provide fast and semi‑permanent attachment of hose barbs and most low pressure general purpose hoses.

SKU	Size
312-3588	0.562 in ID X 0.75 in Length
312-4750	0.478 in ID X 0.686 in Length
312-7322	0.500 in ID X 1 in Length
312-7323	0.525 in ID X 1 in Length
312-7325	0.562 in ID X 1 in Length
312-7326	0.593 in ID X 1 in Length
312-7327	0.625 in ID X 1 in Length
312-7328	0.656 in ID X 1 in Length
312-7329	0.687 in ID X 1 in Length
312-769	0.450 in ID X 0.562 in Length

Brass Hose Splicers

Features:
• Made from brass to ensure functionality and durability.
• Can accommodate up to 200 psi of pressure.
Connection Type: Barb/Barb
Pressure: 200 PSIG

SKU	Hose I.D.
312-44	1/4 in
312-45	3/16 in
312-47	3/8 in
312-48	1/2 in
312-54	1/4 in

Brass SAE Flare Tubing Connections

Features:
• Brass SAE flare tubing connections, pressures to 500 psig (3,400 kPa).
Connection Type: Male/Male
Pressure: 500 psig

SKU	Gas Type	Size
312-F-12	Oxygen	1/4 in
312-F-32	Oxygen	3/8 in

Chain & Plug Assemblies

Features:
• One and two‑piece assemblies provide gas‑tight sealing.
• CGA nut and blind nipple (plug) combination.
Connection Type: Male
Thread Direction: RH

SKU	Gas Type	Pressure
312-922	Inert Gas	200 psi
312-992	Nitrogen; Argon; Helium	3,000 psi

Flexible Pigtails

Features:
• Core consists of Teflon (polytetrafluoroethylene) with two outer reinforcing jackets of stainless steel braid (Teflon is inert to most chemicals and solvents, except molten alkali metals and fluorine at elevated temperatures and pressures).
• Teflon withstands temperatures from ‑65 °F (54C) through +450 °F (232C).
Connection Type: Female Brass
Pressure: 3,000 psi

SKU	Size
312-PF-4-24	24 in
312-PF-4-36	36 in
312-PF-4-48	48 in
312-PF-4-72	—

Hose Couplers

Features:
• Made from brass to ensure functionality and durability.
• Utilize hose couplers as a connector on the end of a hose to connect it with another hose or with a tap or a hose appliance.
Connection Type: Male/Male
Pressure: 200 psi

SKU	Gas Type	Size	Thread Direction
312-30	Oxygen	B-Size; B-Size	RH
312-31	Acetylene/F. Gases	B-Size; B-Size	LH
312-C-30	Oxygen	C-Size; C-Size	RH

Hose Nuts

Features:
• Made from brass to ensure functionality and durability.
• Can accommodate up to 200 psi of pressure.
Connection Type: Female
Pressure: 200 PSIG

SKU	Gas Type	Size	Thread Direction
312-7	Oxygen	B-Size	RH
312-8	Fuel Gas	B-Size	LH
312-C-7	Oxygen	C-Size	RH
312-D-7	Oxygen	D-Size	RH

Hose Repair Kits

Features:
• Convenient plastic case is durable and includes a full color label and description chart.
• Hose repair kits may include crimping tool, nuts, couplers, splicers, nipples and ferrules.

SKU	Size	Hose I.D.
312-CK-1	A-Size; B-Size	3/16 in; 1/4 in
312-CK-20	A-Size; B-Size	3/16 in; 1/4 in
312-CK-22	A-Size; B-Size	1/4 in
312-CK-24	B-Size	3/16 in; 1/4 in
312-CK-26	B-Size	1/4 in
312-CK-3	A-Size; B-Size	3/16 in; 1/4 in; 3/8 in
312-CK-5	B-Size	3/16 in; 1/4 in
312-CK-6	B-Size	5/16 in; 3/8 in

Inert Arc Adaptors

Features:
• Made from brass to ensure functionality and durability.
• Can accommodate up to 200 psi of pressure.
Connection Type: Male/Female
Pressure: 200 PSIG

SKU	Gas Type	Size	Thread Direction
312-AW-15	Water	B-Size	LH
312-AW-15A	Inert Gas	B-Size	RH

Inert Arc Hose & Torch Adapters

Features:
• Made from brass to ensure functionality and durability.
• Can accommodate up to 200 psi of pressure.
Pressure: 200 PSIG

SKU	Size	Connection Type	Thread Direction
312-AW-403	B-Size	Male/Male	RH to RH
312-AW-407	B-Size	Male/Female	RH to RH
312-AW-409	B-Size	Male/Male	RH to RH
312-AW-427	B-Size	Male/Male	RH

Inert Arc Hose Couplers

Features:
• Made from brass to ensure functionality and durability.
• Can accommodate up to 200 psi of pressure.
Connection Type: Female/Female
Pressure: 200 PSIG

SKU	Size	Thread Direction
312-AW-430	B-Size	RH to RH
312-AW-430B	B-Size	RH
312-AW-431	B-Size	LH to LH

Inert Arc Nipples

Features:
• Made from brass to ensure functionality and durability.
• Can accommodate up to 200 psi of pressure.
• Use these arc nipples to repair or make a new hose to attach to the shielding gas
(or cooling) lines.
Connection Type: Barb
Pressure: 200 PSIG

SKU	Size	Hose I.D.
312-AW-16	B-Size	1/8 in
312-AW-17	B-Size	1/4 in
312-AW-18	B-Size	3/16 in
312-AW-19	B-Size	3/8 in
312-AW-20	B-Size	5/16 in

Inert Arc Nuts

Features:
• Made from brass to ensure functionality and durability.
• Can accommodate up to 200 psi of pressure.
Connection Type: Male

SKU	Gas Type	Size	Thread Direction	Pressure
312-AW-14	Water	B-Size	LH	200 PSI
312-AW-14A	Inert Gas	B-Size	RH	—

Inert Gas Hose Repair Kits

Features:
• Mini Kit for the assembly and repair of 1/4” I.D gas hose.
• Contains B size inert fittings.
• Kit includes nuts, couplers, splicers, nipples and ferrules.

SKU	Gas Type
312-CK-30	Inert Gas

Male NPT Outlet Adapters for Manifold Piplelines

Male NPT Outlet Adapters for Manifold Pipelines

Features:
• Made from the highest quality material to ensure functionality and durability.
• Provides a reliable seal during welding applications.
Connection Type: Female/Male
Pressure: 3,000 PSIG

SKU	Gas Type
312-B-70	Argon; Helium; Nitrogen
312-B-71	Argon; Helium; Nitrogen
312-B-72	Argon; Helium; Nitrogen

Manifold Block Assemblies

Features:
• Durable welding accessory for manifold needs.
• Use with any pigtails having CGA connections.
Connection Type: Female Outlets
Thread Direction: RH
Pressure: 3,000 PSIG

SKU	Gas Type
312-MB-70	Argon; Helium; Nitrogen

Manifold Coupler Tees

Features:
• Made from the highest quality material to ensure functionality and durability.
• Provides a reliable seal.

SKU	Gas Type	Connection Type	Thread Direction	Pressure
312-T-15	POL Acetylene	Male	LH	500 PSIG
312-T-62	Oxygen	Female	RH	3,000 PSIG
312-T-92	Argon; Helium; Nitrogen	Male	RH	3,000 PSIG

Non-Corrosive Gas Flow Valves

Features:
• Made from brass to ensure functionality and durability.
• Use these reliable non corrosive gas flow valves with all non‑corrosive gases including oxygen.
• Can withstand elevated pressures.

SKU	Gas Type	Size	Connection Type	Thread Direction	Pressure
312-205	Oxygen	B-Size	Male	RH	200 PSIG
312-206	Acetylene/F. Gases	B-Size	Male	LH	200 PSIG
312-207	Oxygen	B-Size	—	—	200 PSIG
312-208	Fuel Gas; Acetylene	B-Size	Male	LH	200 PSIG
312-211	All Non-Corrosive Gases	—	Male	—	3,000 PSIG
312-215-AR	Inert Gas	5/8 in - 18	Female	RH	200 PSIG
312-217	All Non-Corrosive Gases	1/4 in	Male/Female	RH	3,000 PSIG
312-218-D	All Non-Corrosive Gases	1/4 in	Female	RH	3,000 PSIG

Phase Separators

Features:
• For use with cryogenic transfer hoses.
• Speeds filling and controls splashing

SKU	Connection Type
312-F-62	Female

Pipe Thread Bushings

Features:
• Pipe thread bushings, female to male.
• Withstands pressures to 3000 psig (20,700 kpa).
Connection Type: Female/Male
Pressure: 3,000 PSIG

SKU	Gas Type	Size
312-BB-4-8HP	Oxygen	1/4 in; 1/2 in

Pipe Thread Couplings

Features:
• Made from the highest quality material to ensure functionality and durability.
• Can withstand elevated pressures.
Connection Type: Female/Female

SKU	Pressure
312-BF-4HP	3,000 PSIG

Pipe Thread Crosses

Features:
• Pipe thread crosses, 1/4 in NPT four‑way female.
• Withstands pressures to 3000 psig (20,700 kpa).
Connection Type: Female
Pressure: 3,000 PSIG

SKU	Gas Type	Size
312-BCR-4HP	Oxygen	1/4 in

Pipe Thread Elbows

Features:
• Made from high‑quality material to ensure functionality and durability.
• Can withstand elevated pressures.
• Not susceptible to rust and corrosion.
Pressure: 3,000 PSIG

SKU	Connection Type
312-BEL-4HP	Female/Female
312-BL-4HP	Female/Male

Pipe Thread Hex Nipples

Features:
• Made from the highest quality material to ensure functionality and durability.
• Use to connect other welding hose and compressed gas fittings.
Connection Type: Male

SKU	Pressure
312-B-4HP	3,000 PSIG

Pipe Thread Tees

Features:
• Made from high‑quality material to ensure functionality and durability.
• Can withstand elevated pressures.
• Used to join poly pipe together.
Pressure: 3,000 PSIG

SKU	Connection Type
312-BFT-4HP	3-Way Female
312-BST-4HP	Female x Male

Regulator Outlet Bushings

Features:
• Made from the highest quality material to ensure functionality and durability.
• Used to reduce an outlet in a fitting or to connect a pipe to a larger outlet.
Connection Type: Male/Male
Pressure: 200 PSIG

SKU	Gas Type	Size	Thread Direction
312-144	Oxygen	B-Size	RH
312-32	Oxygen	B-Size	RH
312-33	Fuel Gas	B-Size	LH
312-C-32	Oxygen	C-Size	RH

Stainless Steel Flexible Pigtails

Features:
• 100% tested and cleaned for oxygen.
• Individually poly bagged.
Connection Type: Both Female

SKU	Pressure
312-PF2-4-12	3,000 PSIG
312-PF2-4-18	3,000 PSIG
312-PF2-4-24	3,000 PSIG
312-PF2-4-36	3,000 PSIG
312-PF2-4-48	3,000 PSIG
312-PF2-4-60	3,000 PSIG
312-PF2-4-72	3,000 PSIG

Valved “Y” Connections

Features:
• Precision shut off valves.
• For use of two cutting and/or welding torches at once.
Pressure: 200 PSIG

SKU	Gas Type	Size	Connection Type	Thread Direction
312-111	Oxygen	B-B	Female/Male	RH
312-112	Acetylene/F. Gases	B-B	Female/Male	LH
312-411	Inert Gas	B-B	Male/Female	RH

Y Connections

Features:
• Made from brass to ensure functionality and durability.
• Can accommodate up to 200 psi of pressure.
Pressure: 200 PSIG

SKU	Gas Type	Size	Connection Type	Thread Direction
312-101	Oxygen	B-Size; B-Size	Female/Male	RH
312-102	Acetylene/F. Gases	B-Size; B-Size	Female/Male	LH
312-401	Inert Gas	5/8 in - 18; 5/8 in - 18	Male/Female	RH

Welding Hoses

Grade T Welding Hoses

Features:
• Red line compatible with commonly used fuel gasses including acetylene, hydrogen, natural gas, propane, and propylene.
• Cover is resistant to abrasion, flame, mild chemicals, oil, and ozone.
• Grade T is the only grade of welding hose recognized by the CGA of oxy‑fuel gas welding applications.
Gas Type: Acetylene; Hydrogen; Natural Gas; Propane; Propylene

SKU	Grade	Pressure	Hose I.D.	Length
907-TH-1731V250	T	200 psi	1/4 in	25 ft
907-TH-1741V250	T	200 psi	1/4 in	50 ft
907-TH-1941V250	T	200 psi	3/8 in	50 ft

Single Line Welding Hose Kit

Features:
• Open steam vulcanization curing process does not require pin pricking and offers improved cover and reinforcement adhesions for longer hose life.
• This process also allows for brighter and more vibrant cover colors.
• Custom hose kit made in house.
Test & Approvals: Meets ARPM IP‑7‑2011
Hose I.D.: 1/2 in
Length: 50 ft
Gas Type: Oxygen

SKU	Grade	Pressure
907-1/2X2-GRN-50-CC	R	200 psi

Single Line Welding Hoses

Features:
• Open steam vulcanization curing process does not require pin pricking and offers improved cover and reinforcement adhesions for longer hose life.
• Superior ozone resistance.
• Non‑staining coupling ensures that brass fitting will not discolor.
• 90% of reels are one‑piece reels.
• Multiple length reels will be limited to max of 3 pcs and all pcs will be in 50 ft increments.
• Made in the USA

SKU	Grade	Pressure	Hose I.D.	Length	Gas Type
907-1/4X1-BLK-10-ARGON	R	200 psi	1/4 in	10 ft	Argon
907-1/4X1-GRN-10-ARGON	R	200 psi	1/4 in	10 ft	Argon
907-1/4X1-GRN-6-ARGON	R	200 psi	1/4 in	6 ft	Argon
907-1/4X1-BLK-6-ARGON	R	200 psi	1/4 in	6 ft	Argon
907-1/4X1-BLK-25-ARGON	R	200 psi	1/4 in	25 ft	Argon
907-1/4X1-GRN-25-ARGON	R	200 psi	1/4 in	25 ft	Argon
907-1/4X1-BLK-50-ARGON	R	200 psi	1/4 in	50 ft	Argon
907-1/4X1-BLK-100-ARGON	R	200 psi	1/4 in	100 ft	Argon
907-1/2X2-GRN-RL	R	200 psi	1/2 in	500 ft	Oxygen; Acetylene
907-1/4X2-GRN-RL	R	200 psi	1/4 in	750 ft	Acetylene Only
907-1/4X1-GRN-RL	R	200 psi	1/4 in	800 ft	Oxygen
907-1/4X1-BLK-ARGON-RL	BW	200 psi	1/4 in	800 ft	Inert Air

Single Line Welding Hoses With Argon Fittings

Features:
• Open steam vulcanization curing process does not require pin pricking and offers improved cover and reinforcement adhesions for longer hose life.
• Non‑staining coupling ensures that brass fitting will not discolor.
• 90% of reels are one‑piece reels; multiple length reels will be limited to max of 3 pcs and all pcs will be in 50 ft increments.
Hose I.D.: 1/4 in

SKU	Grade	Pressure	Length
907-1/4X1-GRN-50-ARGON	R	200 psi	50 ft
907-1/4X1-GRN-100-ARGON	R	200 psi	100 ft

Twin Welding Hoses

Features:
• Open steam vulcanization curing process does not require pin pricking and offers improved cover and reinforcement adhesions for longer hose life.
• Non‑staining coupling ensures that brass fitting will not discolor.
• Made in the USA.
Test & Approvals: ARPM IP‑7‑2011

SKU	Grade	Pressure	Hose I.D.	Length
Gas Type: Acetylene Only
907-LB1004	R	200 psi	1/4 in	100 ft
907-LB124	R	200 psi	1/4 in	12 ft
907-LB254	R	200 psi	1/4 in	25 ft
907-LB504	R	200 psi	1/4 in	50 ft
907-LB1/4-TWIN-RL	R	200 psi	1/4 in	800 ft
907-LB1003	R	200 psi	3/16 in	100 ft
907-LB123	R	200 psi	3/16 in	12.5 ft
907-LB123-A-B	R	200 psi	3/16 in	12.5 ft
907-LB253	R	200 psi	3/16 in	25 ft
907-LB503	R	200 psi	3/16 in	50 ft
907-LB3/16-TWIN-RL	R	200 psi	3/16 in	800 ft
907-LB1008	R	200 psi	3/8 in	100 ft
907-LB258	R	200 psi	3/8 in	25 ft
907-LB508	R	200 psi	3/8 in	50 ft
Gas Type: All Fuel Gases
907-T1004	T	200 psi	1/4 in	100 ft
907-T254	T	200 psi	1/4 in	25 ft
907-T504	T	200 psi	1/4 in	50 ft
907-TR1/4-TWIN-RL	T	200 psi	1/4 in	800 ft
907-T1003	T	200 psi	3/16 in	100 ft
907-T123	T	200 psi	3/16 in	12.5 ft
907-T253	T	200 psi	3/16 in	25 ft
907-T1008	T	200 psi	3/8 in	100 ft
907-T258	T	200 psi	3/8 in	25 ft
907-T508	T	200 psi	3/8 in	50 ft
907-TR3/8-TWIN-RL	T	200 psi	3/8 in	700 ft not sold in contiunuous lengths

Welding Hose Assembly

Features:
• Hose assembly includes hose and fittings
Hose I.D.: 1/2 in
Length: 100 ft

SKU	Grade
907-1/2X2-GRN-100-CC	R

Acetylene Hoses

Features:
• Made of quality single ply fabric reinforced Grade R hose.

SKU	Pressure	Length
328-HA3-12	200 psi	12 ft

Cryogenic Transfer Hoses

Features:
• Cleaned for oxygen service.
• Exceptional flexibility, hose resists kinking.
• Machined CGA stainless steel end connections.
• Constructed of 316 stainless steel for all wetted parts.
• Use in cyro‑biological and medical systems, and gas filling plants.
Gas Type: Nitrogen; Argon

SKU	Pressure	Length
312-WMH-2-14	500 PSIG	48 in
312-WMH-2-16	500 PSIG	72 in

Welding Umbrellas

Heavy Duty Construction Umbrellas

Features:
• Strong, black, powder‑coated aluminum frame.
• Reinforced seams are built to last.
• Convenient tilt function.

SKU	Height	Color	Material
160-UM7ACC	7 ft	Camo (Brown/Olive)	Acrylic Coated Canvas
160-UM7VB	6 1/2 in	Blue	Vinyl
160-UM7VBX	7 ft	Blue	Vinyl
160-UM7VR	7 ft	Red	Vinyl
160-UM7VY	6 1/2 in	Yellow	Vinyl
