View the Quality Welding Steel Supplies

ARC GOUGING

Arc Gouging Electrodes

DC Copperclad Flat Electrodes

Features:
• Specially designed for close tolerance metal removal and scarfing applications.
• Excellent for general gouging applications, removing weld crowns, repairing or making dies, removing temporary welded dogs, and scarfing billets.
Thickness: 3/16 in
Length: 12 in
Model Type: DC

SKU	Amps	Coating	Dia.	Width
358-3509-9003	250 A - 300 A	Copper	(flat 3/8 in wide)	3/8 in
358-3503-3003	300 A - 500 A	Copper	Flat 3/8 in wide	5/8 in

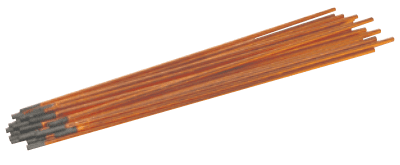

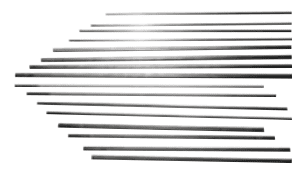

DC Copperclad Gouging Electrodes

Features:
• A high grade, all‑purpose copperclad pointed gouging electrode.
• Its controlled copper coating improves electrical conductivity (for more efficient, cooler operation) and helps maintain electrode diameter at the point of the arc.
Length: 12 in
Model Type: DC

SKU	Amps	Coating	Dia.
358-2204-3003	300 A - 400 A	Copper	1/4 in
358-2203-3003	200 A - 250 A	Copper	3/16 in
358-2206-3003	450 A - 600 A	Copper	3/8 in
358-2205-3003	350 A - 450 A	Copper	5/16 in

DC Copperclad Gouging Electrodes

Features:
• Highly resistant to breakage, heat and oxidation.

SKU	Dia.	Width	Thickness	Length
900-24-084-003X	1/2 in	1/2 in	1/2 in	17 in
900-22-043-003X	1/4 in	1/4 in	1/4 in	12 in
900-22-023-003X	1/8 in	1/8 in	1/8 in	12 in
900-22-033-003X	3/16 in	3/16 in	3/16 in	12 in
900-22-063-003X	3/8 in	3/8 in	3/8 in	12 in
900-22-053-003X	5/16 in	5/16 in	5/16 in	12 in

Arc Gouging Torch Parts

Angle-Arc® Gouging Torch Parts

Features:
• Genuine manufacturer replacement parts.
• Manufactured to the highest quality available.
• Keeps your Angle‑Arc torch running like new.
Applications: Manual Gouging Torch

SKU	Type	For Model	Wt.
358-9437-8368	Head Assembly	K4000	0.02 lb
358-9410-4016	Valve Bonnet	K2000, K3000, K4000, K5000	0.11 lb

Arc Gouging Torch Parts

Features:
• Durable construction.
• Fully interchangeable with other gouging torch brands

SKU	Type	For Model
900-GT94-105-014	Insulating Boot	K3000; K4000
900-GT94-433-183	Insulator & Screw	K4000

Arc Gouging Torches & Cables

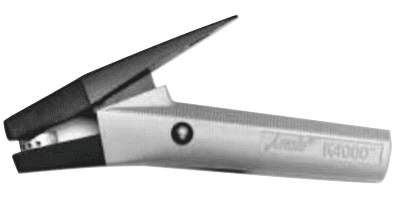

Angle-Arc® K4000 Gouging Torches

Features:
• Natural 15 degree torch angle for greater operator comfort.
• Positive grip handle for greater operator feel and ease in positioning torch.
• Durable front insulators; high‑impact and heat‑resistant protecting the torch metal part.
Accepts Flat Carbons: 5/32 in ‑ 5/8 in
Accepts Pointed Carbons: 3/8 in ‑ 5/32 in; 5/8 in ‑ 3/16 in ‑ 1/2 in
Amps: 1,000 A

SKU	Includes	Cable Length
358-6108-2008	Cable Assembly; Torch	7 ft

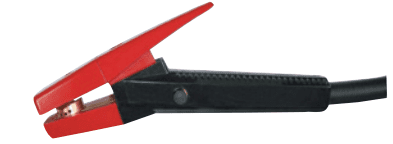

Gouging Torches With Cables

Features:
• Sturdy gouging torch with cable is made with durable construction.
• Fully interchangeable with other gouging torch brands.
• Heavy-duty construction, yet lightweight for everyday usage.
Accepts Flat Carbons: 3/8 in ‑ 5/8 in
Accepts Pointed Carbons: 5/32 in ‑ 1/2 in

SKU	Includes	Cable Length
900-GT61-082-008	Torch & Cable assembly	7 ft

EXOTHERMIC CUTTING

Exothermic Rods

Slice® Exothermic Cutting Rods-Flux Coated

Features:
• The Arcair® SLICE systems can cut, burn or pierce virtually any metallic, non‑metallic or composite material.
• Specially designed flux coated cutting rod, patented single piece construction maintains the balance necessary to sustain the exothermic reaction.
Quantity: 25 per carton

SKU	Dia.	Length
358-4204-9002	1/4 in	22 in

Slice® Exothermic Cutting Rods-Uncoated

Features:
• The Arcair® SLICE systems can cut, burn or pierce virtually any metallic, non‑metallic or composite material.
• Cutting rods can sustain the burn with and without constant electrical power once ignited.
• One piece patented construction maintains the balance necessary to sustain the exothermic reaction.
Type: Electrode Rod
Quantity: 25 per carton

SKU	Dia.	Length
358-4304-9002	1/4 in	22 in
358-4304-9005	1/4 in	44 in
358-4304-9009	3/8 in	36 in

FILLER METALS

Mig/Tig Welding Wires

ER308L TIG Welding Rods

Features:
• Used for welding types 304, 304L, 308 and 308L stainless steels.
• Very similar to type 308 but has a carbon content held to a max of 0.03% to avoid carbide precipitation.
• Can also be used for welding types 321 and 347 stainless steels.
Test & Approvals: AWS A5.9/A5.9M:2006; AWS/ASME SFA A5.9
Dia.: 3/32 in

SKU	Tensile Strength	Material
900-308L332x36x10	84 kpsi	Stainless Steel

ER308L Welding Wires

SKU	Tensile Strength	Material	Dia.	Wt.
900-308L030X10	84 kpsi	Stainless Steel	0.030 in	10 lb
900-308L035X10	84 kpsi	Stainless Steel	0.035 in	10 lb
900-308L035X30	84 kpsi	Stainless Steel	0.035 in	30 lb

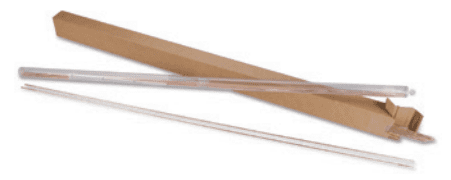

ER316L TIG Welding Rods

Features:
• Used for welding types 316 and 316L stainless steels.
• Maximum carbon content of 0.03% to reduce the possibility of formation of intergranular carbide precipitation.
• Primarily used for welding low carbon molybdenum bearing austenitic alloys.
Test & Approvals: AWS A5.9/A5.9M:2006; AWS/ASME SFA A5.9

SKU	Tensile Strength	Material	Dia.
900-316L18X36x10	55 ksi	Stainless Steel	1/8 in
900-316L332X36x10	55 ksi	Stainless Steel	3/32 in

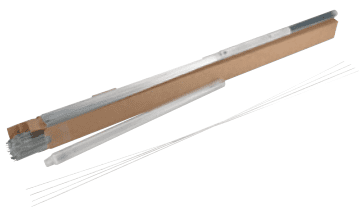

ER4043 TIG Welding Rods

Features:
• One of the oldest and most widely used welding and brazing alloys.
• Contains silicon additives, which result in improved fluidity (wetting action) of the weld pool.
• Also produces a weld less sensitive to cracking.
• Can be used to weld various grades of aluminum.
Test & Approvals: AWS A5.10/A5.10M:1999; AWS/ASME SFA A5.10

SKU	Tensile Strength	Material	Dia.
900-4043-18X36X10	29 kpsi	Aluminum; Aluminum Alloy	1/8 in
900-4043-332X36X10	29 kpsi	Aluminum; Aluminum Alloy	3/32 in

ER4043 Welding Wires

SKU	Tensile Strength	Material	Dia.
900-4043-030X1	29 kpsi	Aluminum; Aluminum Alloy	0.030 in
900-4043-035X1	29 kpsi	Aluminum; Aluminum Alloy	0.035 in

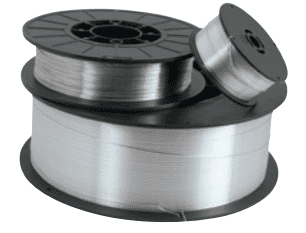

ER5356 Welding Wires

Features:
• General‑purpose type aluminum alloy which is typically chosen for its relatively high shear strength.
• Offers excellent corrosion resistance when exposed to salt water.
• Should be considered for welding 5000 series aluminum base metals.
Test & Approvals: AWS A5.10/A5.10M:1999; AWS/ASME SFA A5.10
Dia.: 0.035 in

SKU	Tensile Strength	Material
900-5356-035X1	38 kpsi	Aluminum; Aluminum Alloy

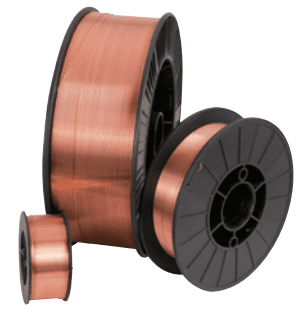

ER70S-6 Premium Welding Wires

Features:
• Mild steel welding wire that contains high levels of manganese and silicon which produces high quality welds when used on dirty, oily or rusty steel.
• The high silicon content increases the fluidity of the weld pool, creating a smoother bead appearance resulting in minimal post‑weld grinding.
• Engineered to provide porosity‑free, x‑ray quality welds at the highest tensile strength of all the plain carbon steel wires.
Test & Approvals: AWS A5.18:05; CSA W48:14

SKU	Tensile Strength	Dia.	Wt.
900-70S6023X12S	85,000 psi	0.023 in	12 lb
900-70S6030X12S	85,000 psi	0.030 in	12 lb
900-70S6035X12S	85,000 psi	0.035 in	12 lb
900-70S6030X33S	85,000 psi	0.030 in	33 lb
900-70S6035X33S	85,000 psi	0.035 in	33 lb
900-70S6045X33S	85,000 psi	0.045 in	33 lb
900-70S6030X44S	85,000 psi	0.030 in	44 lb
900-70S6035X44S	85,000 psi	0.035 in	44 lb
900-70S6045X44S	85,000 psi	0.045 in	44 lb

ER70S-6 Welding Wires

Features:
• High quality welds when used on dirty, oily, or rusty steel.
• Creates a smooth bead appearance resulting in minimal post‑weld grinding.
• Provides porosity free, x‑ray quality weld.
Test & Approvals: ASME; SFA; AWS A5.18

SKU	Tensile Strength	Dia.	Wt.
900-70S6023x11	550 MPa	0.023 in	11 lb
900-70S6030x11	550 MPa	0.030 in	11 lb
900-70S6035x11	550 MPa	0.035 in	11 lb
900-70S6030x33	550 MPa	0.030 in	33 lb
900-70S6035X33-BOX	550 MPa	0.035 in	33 lb
900-70S6035X33-PLT	550 MPa	0.035 in	33 lb
900-70S6045X33-BOX	550 MPa	0.045 in	33 lb
900-70S6035X44-BOX	550 MPa	0.035 in	44 lb
900-70S6035X44-PLT	550 MPa	0.035 in	44 lb
900-70S6045X44-BOX	550 MPa	0.045 in	44 lb
900-70S6045X44-PLT	550 MPa	0.045 in	44 lb
900-70S6035X550	550 MPa	0.035 in	550 lb
900-70S6045X550	550 MPa	0.045 in	550 lb

Flux Core - DS 7100 ULT Welding Wires

Features:
• Wider parameter range.
• Less welding fumes.
• Low spatter levels.
Dia.: .045 in

SKU	Tensile Strength
537-248000044	70,000 ksi

Solder Alloys & Fluxes

Bridgit® Lead-Free Solder

Features:
• Nickel‑bearing Bridgit® is the strongest lead‑free solder developed for use on potable water systems.
• Bridgit® caps like no other lead‑free solder and allows its operator to fill both tight and loose, nonconcentric connections with ease.
• The strength of a Bridgit® joint far exceeds the burst pressure of copper tubing.
Test & Approvals: Meets ASTM B32

SKU	Capacity Wt.
348-BRGT61	1 lb

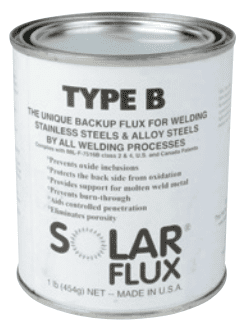

Fluxes

Features:
• Complex chemical compound in the form of a very fine powder.
• Designed to be mixed with alcohol and brushed onto the weld joint.
• Formulated to shield the back of the weld joint from oxygen, dissipate heat and unwanted oxides.
• Cleans the surface of the metal.
• Aids in the flow of filler metal over base metal.
• Forms a protective barrier to prevent re‑oxidation and heat scale.
Applicable Materials: Stainless Steel; Precipitation Hardening Steel; Chrome‑Moly Steel; Other Alloy Steels with Nickel content below 25%

SKU	Capacity Wt.
348-S0FB01	1 lb

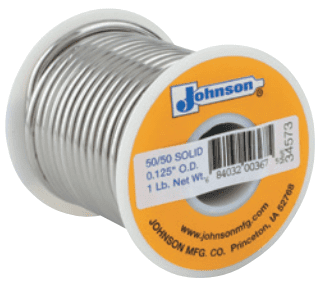

Wire Solders

Features:
• Tin/lead solders are excellent where pre‑placement of solder is required for furnace and/or automatic soldering applications.
Caution: Lead‑bearing solders are not to be used in potable water systems.
Test & Approvals: Specification: ASTM B32, Sn40A

SKU
348-40R61
348-60R11
348-60R31
Common Lead-bearing Solder
348-505061
Lead-free Tin-antimony Solder
348-95561

Regular Flux Pastes

Features:
• All‑weather super detergent action cleans as it solders.
• Non‑acid, non‑toxic and lead free.
• Contains no zinc chloride.
• Use with all common soft solders including tin‑silver, 96/4, 94/6, 95/5, 50/50, 40/60 and 60/40.
• 61 for use with potable water.
• Water soluble for faster flushing from pipe lines.
Test & Approvals: Meets Mil. Spec Mil‑F‑4995 Type II; Meets ASTM B813
Applicable Materials: Brass; Copper; Galvanized Iron; Lead; Malleable Iron; Nickel; Silver; Steel; Terne Plate; Tin; Zinc

SKU	Capacity Wt.	Flash Point
434-22107	1 lb	400 °F

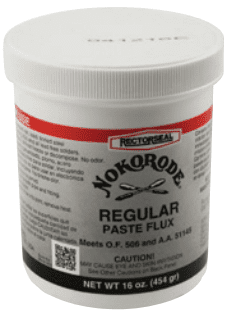

NOKORODE Regular Paste Flux

Features:
• Cleans and fluxes in one operation saving time and money.Flows smoothly into even the smalles cavity. Low scorching, lead free and acid free.
Applicable Materials: Copper, Zinc, Tin, Lead, Nickel

SKU	Flash Point	Capacity Wt.
622-14030	>399 degree F	1 lb

Welding/Brazing Alloys & Fluxes

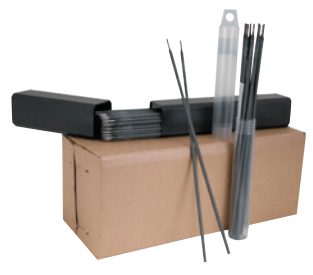

99 Nickel Welding Wires

Features:
• Designed for welding gray iron castings to themselves as well as joining them to mild steel.
• Can also be used to repair castings.
• A preheat and interpass temperature of at least 350 °F is required during welding.
Tensile Strength: 58‑84 ksi

SKU	Material	Dia.
900-99NI18X1	99 Nickel	1/8 in

E71T-11 Flux Cored Welding Wires

Features:
• Limited multi‑pass, all position, flux cored welding wire designed to weld carbon steel.
• Shielding gas is not required.
• Produces smooth arc action, low spatter, full slag coverage, and easy slag removal.
Length: 8 1/8 in
Tensile Strength: 70 ksi

SKU	Material	Dia.
900-71T11030X10	E71T-11 Alloy	1/8 in
900-71T11035X10	E71T-11 Alloy	1/8 in

E71T-GS Flux Cored Welding Wires

Features:
• All position, single pass, flux cored welding wire designed to weld carbon steel.
• Shielding gas is not required.
• Produces smooth arc action, low spatter, full slag coverage, and easy slag removal.

SKU	Material	Dia.	Packing Type	Tensile Strength	Wt.
900-71TGS030X2	E71T-GS Alloy	.030 in	Carton	70,000 psi	2 lb
900-71TGS035X2	E71T-GS Alloy	.035 in	Carton	70,000 psi	2 lb
900-71TGS030X10	E71T-GS Alloy	.030 in	Carton	70,000 psi	10 lb
900-71TGS035X10	E71T-GS Alloy	.035 in	Carton	70,000 psi	10 lb
900-71TGS035X33	E71T-GS Alloy	.035 in	Spool	86,400 psi	33 lb

Brazing Alloys - Phos/Copper

Features:
• Primarily used to join copper to copper, copper to brass, and brass to brass.
• Serve as “self‑fluxing” agents in joining copper to copper.
• Not recommended for brazing steel or nickel alloys.

SKU	Material	Dia.	Length
348-15620F1	Silver; Phosphorus	1/8 in	20 in

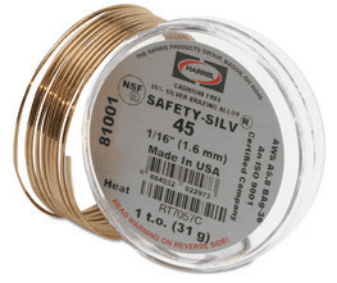

Brazing Alloys - Silver

Features:
• J.W. Harris silver brazing alloys are produced with stringent control of chemical composition and precise wire size.
• Most Harris standard stock silver brazing alloys are available in coils, bare rod in straight lengths and flux coated in straight lengths.
Test & Approvals: Meets AWS A5.8 BAg‑5

SKU	Material	Dia.	Wt.
348-4531	Silver	1/16 in	1 oz
348-4535	Silver	1/16 in	5 oz

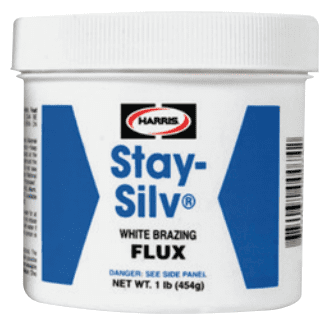

Brazing Fluxes

Features:
• An all‑purpose, low‑temperature flux for use in silver brazing.
• Minimizes the oxidation that may form on both the brazing filler metal and the materials being joined.
Test & Approvals: Meets AWS A5.31, Class FB3A; AMS 3410; Fed. Spec. O‑F‑499, Type B

SKU	Material	Temp. Range	Wt.
348-SSWF5	—	1,100 °F - 1,600 °F	5 lb
348-SSBF1	—	1,100 °F - 1,800 °F	1 lb
348-SSWF1	Copper; Brass; Stainless Steel	1,100 °F - 1,600 °F	1 lb
348-SSBF5	Copper; Brass; Stainless Steel	1,100 °F - 1,800 °F	5 lb

GAS CUTTING & WELDING

Check Valves

Features:
• Machined high quality brass with stainless steel operating spring and valve disc.
• Prevents reverse flow at point of origin.
• Easy to install.
Test & Approvals: Meets or Exceeds CGA and OSHA Requirements.; UL Listed

SKU	Connection Type	Pressure	Material
312-CV-7R	Male/Female	125 PSIG	Brass/Stainless Steel
312-CV-8L	Male/Female	50 PSIG	Brass/Stainless Steel
312-WE-60	Male/Female	50 PSIG; 125 PSIG	Brass/Stainless Steel

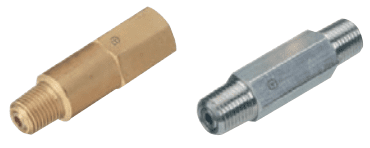

Inline NPT Check Valves

Features:
• Heavy-duty check valves are designed for high performance in demanding applications.
• All styles feature low/open/close pressures.
• Check valve seat material is durable Ethylene Propylene (EPDM).
• For use in high pressure pigtail assemblies.
Material: Brass

SKU	Thread Size	Connection Type	Pressure
312-CV-4M	1/4 in (NPT)	Male/Male	3,000 PSIG

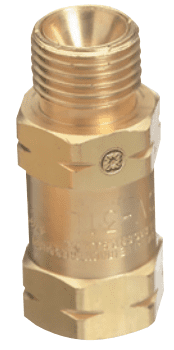

Regulator Bushing Adaptors

Features:
• Easily mounts on outlet bushing on a regulator having a B‑Size outlet.
• This model has the same flow capacity as the torch ‑ type (1200 SCFH at 50 PSIG) when installed on a regulator.
• Check valve is easily seen and is less subject to contamination, abuse and damage.
Test & Approvals: Meets or Exceeds CGA and OSHA Requirements.; UL Listed
Pressure: 50 PSIG

SKU	Connection Type
312-CV-31L	Female/Male

Cutting Machines

BHA-2 Adjustable Head Attachments

Features:
• Adds flexibility to machine cutting torches by allowing bevel cuts without changing the position of the torch.
• Setting Angle: between 0° to 90° at either side of vertical.

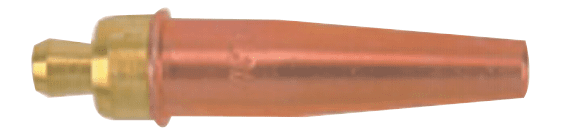

Uses Cutting Tip: Series 1

SKU
341-0383-0012

Flash Arrestors

Flashback Arrestor Components

Features:
• Color‑coded for gas service to provide added safety.
• Internal check valves designed to prevent reverse flow and accidental mixing of oxygen and fuel gases.
• Torch and regulator models provide downstream and upstream protection.
• 10” maximum cutting capacity.
Test & Approvals: UL Listed
Thread - TPI or Pitch: 9/16 in ‑ 18

SKU	Gas Type	Style
312-FA-230P	Fuel Gas	Regulator Adaptor
312-FA-200P	Fuel Gas	Torch
312-FA-100P	Oxygen	Torch

Flashback Arrestor Sets

Features:
• Color‑coded for gas service to provide added safety.
• Internal check valves designed to prevent reverse flow and accidental mixing of oxygen and fuel gases.
• Torch and regulator models provide downstream and upstream protection.
• 10 in maximum cutting capacity.
Test & Approvals: UL Listed
Thread - TPI or Pitch: 9/16 in ‑ 18 TPI

SKU	Style	Used With
312-FA-30	Regulator Adaptor	FA-230P Fuel Gas; FA-130P Oxygen
312-FA-10	Torch Style	FA-200P Fuel Gas; FA-100P Oxygen

Outfits

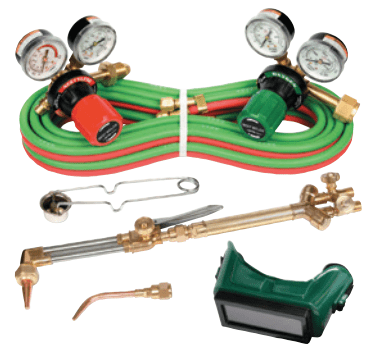

G250 Series Cutting and Welding Outfits

Features:
• Features G250 regulator.
• Contains built‑in flashback arrestors and check valves.
• With color‑coded knobs.
Welding Range: ‑ 3 in
Type: Medium‑Duty Cutting and Welding Outfit

SKU	Gas Type	Cutting Cap.	Includes
900-0384-2706	Acetylene; Oxygen	3/8 in - 5 in	CA270-V Cutting Attachment; WH270FC-V Welding Handle; 0-3-101 Cutting Tip; 0-UM-250 Welding Nozzle; G250-150-540 Oxygen Regulator; G250-15-510 Fuel Gas Regulator; 3/16 in x 20 ft RM Hose; Goggles; Striker
900-0384-2705	Acetylene	3/8 in - 5 in	CA270-V Cutting Attachment; WH270FC-V Welding Handle; 0-3-101 Cutting Tip; 0-UM-250 Welding Nozzle; G250-150-540 Oxygen Regulator; G250-15-510 Fuel Gas Regulator

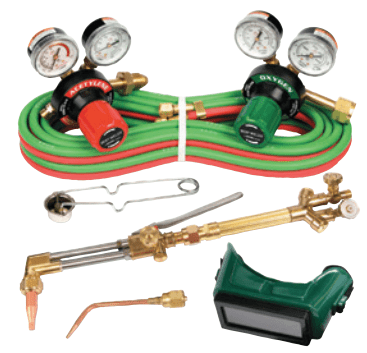

G350 Series Cutting and Welding Outfits

Features:
• Features G350 regulator.
• Contains built‑in flashback arrestors and check valves.
• With color‑coded knobs.
Welding Range: ‑ 3 in
Type: Heavy‑Duty Cutting and Welding Outfit

SKU	Gas Type	Cutting Cap.	Includes
900-0384-2704	Acetylene; Oxygen	3/8 in - 6 in	CA370-V Cutting Attachment; WH370FC-V Welding Handle; 1-1-101 Cutting Tip; 2-UM-350 Welding Nozzle; G350-150-540 Oxygen Regulator; G350-15-510 Fuel Gas Regulator; 1/4 in x 25 ft RM Hose; Goggles; Striker
900-0384-2703	Acetylene; Oxygen	3/8 in - 6 in	CA370-V Cutting Attachment; WH370FC-V Welding Handle; 1-1-101 Cutting Tip; 2-UM-350 Welding Nozzle; G350-150-540 Oxygen Regulator; G350-15-510 Fuel Gas Regulator

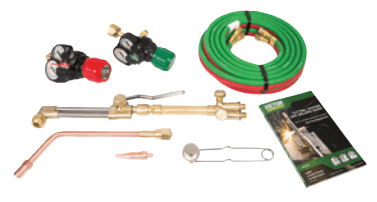

Contender EDGE™ 2.0 Cutting, Heating and Welding Outfits

Features:
• Cuts up to 8 in.
• (203.2 mm) and welds up to 3 in.
• (76.2 mm) with accessories.
Welding Range: ‑ 3 in
Includes: CA 2460+ Cutting Attachment; Cutting Tip; Goggles; Heating Nozzle; Hose; Striker; Tip Cleaner; (2) EDGE 2.0 Regulator; WH 315FC+ Welding Handle; Welding Nozzles

SKU	Gas Type	Cutting Cap.
341-0384-2130	Acetylene; Oxygen	8 in

Air-Propane Torch Outfits

Features:
• Quiet, adjustable brush flame.
• Screw‑in design fits Goss AP‑1 handle.
Test & Approvals: UL Listed regulator
Welding Range: ‑ 4 in
Includes: AP‑1 Handle; BP‑5 Tip; EP‑70G Regulator; HEF‑10 Hose; MP‑1 Lighter

SKU	Gas Type
328-KP-105	Propane

Feather Flame® Air-Acetylene Torch Outfits

Features:
• Economical soldering kit.
• Adjustable feather flame tips.
• Screw‑in design handle and tips.
• Kits matched to different tip & tank sizes.
Test & Approvals: UL Listed regulator & hose
Welding Range: 2 in ‑ 4 in
Includes: Regulator; HA3‑12 Hose; AA‑1 Handle; MP‑1 Lighter; MA‑2 Wrench; BA‑3 Tip

SKU	Gas Type
328-KA-1H	Acetylene (B)

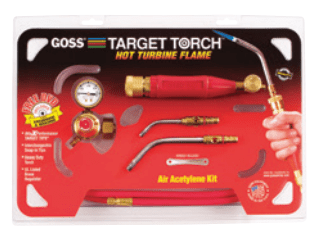

Target Torch™ Air-Acetylene Outfits

Features:
• Very hot turbine flame.
• Adjustable flame feature.
• Tips have a filter and removable orifice.
• Interchangeable with other quick disconnect style tips and equipment.
• Made of heavy gauge stainless steel and brass.
Test & Approvals: UL Listed Regulator
Welding Range: GA‑3 Soft Solder ‑ 1/4 in; Silver Braze ‑ 1/8 in, GA‑11 Soft Solder ‑ 1‑1/2 in; Silver Braze ‑ 7/8 in ‑ GA‑3 Soft Solder 1 in; Silver Braze ‑ 1/2 in; GA‑11 Soft Solder ‑ 3 in; Silver Braze ‑ 1‑1/2 in
Includes: GA‑3 and GA‑11 Tips; GG‑4 Handle; HA3‑12 ft Hose; MA‑2 Wrench; Regulator
Type: Hot Turbine Flame

SKU	Gas Type
328-KX-3B	Acetylene

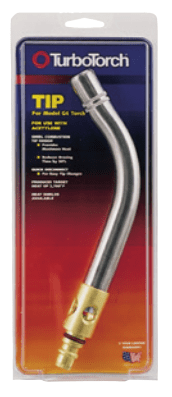

Torch Kit Swirls

Features:
• Features Extreme Swirl Technology which generates more heat for faster brazing times and less gas consumption, combined with a traditional manual lighting torch.
• Tips feature quick disconnect couplings.
• Color coded “O” rings for gas identification.
Gas Type: Acetylene

SKU	Includes
341-0386-0335	AR-B Regulator; G-4 Rear Valve Handle; AH-12 Hose; A-3 Tip; A-11 Tip; “B” Tank Connection; Instruction Manual
341-0386-0338	AR-B Regulator; G-4 Rear Valve Handle; AH-12 Hose; A-5 Tip; “B” Tank Connection; Instruction Manual

Cutter Select Medalist 250 Outfit

Features:
• Built‑in check valves.
• One cutting attachment for all fuel gases (with proper tip).
• Designed to be durable, comfortable, and easy to use.
Welding Range: 5/64 in ‑ 1 1/4 in
Includes: G250 series regulators; torch handle with flashback arrestors and check valves; cutting attachment; cutting tips; welding nozzle
Type: Medium Duty

SKU	Gas Type	Cutting Cap.
341-0384-2540	Oxygen; Acetylene	1/2 in; 5 in

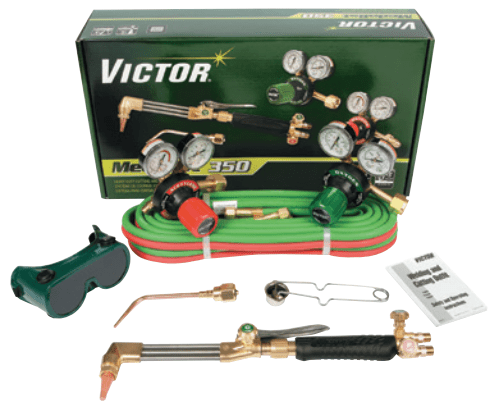

Cutter Select Medalist 350 Outfit

Features:
• Built‑in check valves.
• Features one cutting attachment for all fuel gases (with proper tip).
• Durable heavy‑duty construction.
Includes: G350 series regulators; torch handle; cutting attachment; welding nozzle; cutting tip; R‑M grade hose; striker and soft sided go

SKU	Gas Type	Cutting Cap.
341-0384-2690	Oxygen; Acetylene	5/8 in; 1 in

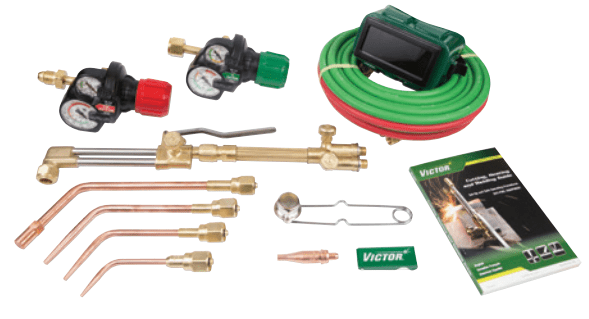

Journeyman EDGE 2.0 Cutting, Heating and Welding Outfits

Features:
• Comes with everything you need to get started.
• Cuts up to 8 in, welds up to 3 in. with accessories.
• Up to 1,118,000 BTUs/hour heating.
• ESS42 Series regulators.
• WH 315FC+ torch handle with built‑in flash arrestors and check valves.
Welding Range: ‑ 8 in Cuts; 3 in Welds
Includes: CA 2460+ Cutting Attachment; Cutting Tip; Goggles; Heating Nozzle; Hose; Striker; Tip Cleaner; Two EDGE 2.0 Regulator; WH 315FC+ Welding Handle; Welding Nozzles
Type: Cutting, Heating and Welding Outfit

SKU	Gas Type	Cutting Cap.
341-0384-2101	Acetylene; Carbon Dioxide; Hydrogen/Methane; Nitrogen Inert Gas; Oxygen; Propane LP Gas Air	8 in

Journeyman II EDGE 2.0 Cutting and Welding Outfits

Features:
• Extra heavy‑duty welding and cutting outfit for industrial and commercial use.
• Comes with everything you need to get started.
• This heavy‑duty outfit cuts up to 8 in and welds up to 3 in with accessories.
Welding Range: 3/4 in Cuts; 1/8 in Welds ‑ 8 in Cuts; 3 in Welds
Includes: CA 2460+ Cutting Attachment; Cutting Tip; Goggles; Hose; Striker; Tip Cleaner; Two EDGE 2.0 Regulator; WH 315FC+ Welding Handle; Welding Nozzles

SKU	Gas Type	Cutting Cap.
341-0384-2111	Acetylene; Carbon Dioxide; Hydrogen/Methane; Nitrogen Inert Gas; Oxygen; Propane LP Gas Air	8 in

Journeyman® 450 Heavy Duty Cutting and Welding System

Features:
• Reverse flow check valves and patented built in flashback arrestors.
• Die‑forged brass body and housing cap.
• One cutting attachment for all fuel gases.
Welding Range: 3/4 in Cuts; 1/2 in Welds ‑ 8 in Cuts; 3 in Welds
Includes: SR Series Regulators; Torch Handle with Flashback Arrestors and Check Valves; Cutting Attachment; Cutting Tips; Welding Nozzle

SKU	Gas Type	Cutting Cap.
341-0384-0807	Oxygen; Acetylene	2 in

Performer® Edge™ 2.0 Welding & Cutting Outfits

Features:
• Cuts up to 6 in (152.4 mm) and welds up to 1/4 in (6.4 mm) with accessories.
• ESS32 Series regulators.
• CA1350 cutting attachment.
Welding Range: 1/2 in Cuts; 1/4 in Welds ‑ 1.25 in Cuts; 6 in Welds
Includes: (2) EDGE 2.0 Regulators; CA1350 Cutting Attachment; Cutting Tip; Goggles; Heating Nozzle; Hose; Striker; Tip Cleaner; WH100FC Welding Handle; Welding Nozzle

SKU	Gas Type	Cutting Cap.
341-0384-2125	Acetylene; Natural Gas; Propane	6 in

Quick Connects

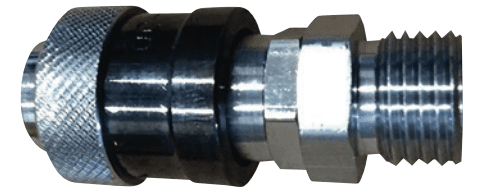

Quick Connectors® B Fitting Halves

Features:
• Click‑in and click‑out design eliminates time consuming hand threading and ensures pressure‑tight connections.
• Color coded for fast, efficient, and safe handling.
• Built‑in check valves prevent the reverse flow of gases.
Material: High‑Grade Material
Used With: Hose to Torch

SKU	Connection Type	Gas Type
331-QC-HTX-FSP	Female Plug	Oxygen
331-QC-HTF-MSP	Male Plug	Fuel
331-QC-HTX-MSP	Male Plug	Oxygen

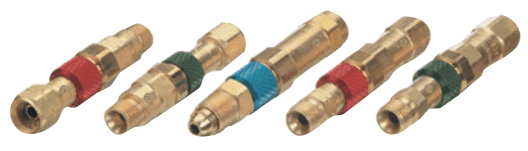

Quick Connect Components

Features:
• Brass construction provides long service life.
• Cycle tested over 100,000 operations indicting a service life of 10 to 12 years of comparable use.
• Non‑interchangeable oxygen and fuel gas connectors prevent accidental gas mixing.
• Instant closure on reverse flow check values with total shutoff at only 10 oz. of back pressure.
Material: Brass

SKU	Connection Type	Gas Type
312-QDB205	—	Fuel Gas
312-QDB301	—	Inert Gas
312-QDB303	Female	Inert Gas
312-QDB201	Female Socket	Fuel Gas
312-QDB101	Female Socket	Oxygen/Inert Gas
312-QDB302	Hose to Machine	Inert Gas
312-QDB105	Male	Oxygen/Inert Gas
312-QDB100	Male Plug	Oxygen/Inert Gas
312-QDB300	Regulator to Machine	Inert Gas
312-QDB200	Torch to Hose	Fuel Gas

Quick Connect Sets

Features:
• Brass construction provides long service life.
• Non‑interchangeable oxygen and fuel gas connectors.
• Instant closure on reverse flow check valves.
• Spring‑loaded locking mechanism responds to fingertip action and achieves a gas‑tight connection.
• Double seal socket connection on second seal.
Test & Approvals: Exceed CGA Flow Specifications
Gas Type: Fuel Gas; Oxygen/Inert Gas

SKU	Connection Type	Includes
312-QDB20	Hose to Hose	QDB21; QDB22
312-QDB30	Regulator to Hose	QDB31; QDB32
312-QDB10	Torch to Hose	QDB11; QDB12

Quick Connects

Features:
• Brass construction provides long service life.
• Non‑interchangeable oxygen and fuel gas connectors.
• Instant closure on reverse flow check valves.
Test & Approvals: Exceed CGA Flow Specifications
Material: Brass

SKU	Connection Type	Gas Type
312-QDB12	QDB100 - Male Plug; QDB101 - Female Socket; Torch to Hose	Oxygen/Inert Gas
312-QDB22	QDB105 - Male Plug; QDB101 - Female Socket; Hose to Hose w/Check Valve	Oxygen/Inert Gas
312-QDB32	QDB105 - Male Plug; QDB106 - Female Socket; Regulator to Hose	Oxygen
312-QDB11	QDB200 - Male Plug; QDB201 - Female Socket; Torch-to-Hose	Fuel Gas
312-QDB31	QDB205 - Male Plug; QDB206 - Female Socket; Regulator-to-Hose w/Check Valve	Fuel Gas
312-QDB33	QDB300 - Male Plug; QDB301 - Female Socket; Regulator-to-Hose	Inert Gas
312-QDB34	QDB302 - Male Plug; QDB303 - Female Socket; Hose to Machine	Inert Gas

Quick Connects to Hose Set

Features:
• DURABLE BRASS CONSTRUCTION.
• Cannot be disconnected by means of a straight pull without rotary motion.
• Color coded for fuel gas, oxygen and inert gas.
• Demand valve prevents gas flow when disconnected.
• Easy to grip knurled collar.
• Flow capacity 1100 SCFH at 125 PSI inlet.
• Reverse flow check valves.
Test & Approvals: OSHA Compliant; UL Listed

SKU	Connection Type	Gas Type
312-QDB73	Hose to Regulator	Inert Gas
312-QDB40	Torch to Hose	Oxygen/Fuel Gas

Regulator & Flowmeter Parts

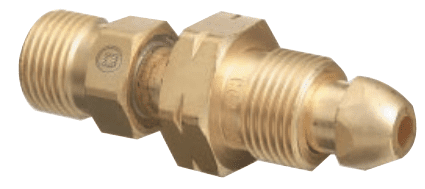

Brass Cylinder Adaptors

Features:
• Use a brass cylinder adaptor to connect a regulator to a cylinder or other equipment when different CGA threads on the mating parts make a direct connection impossible.
• Adaptors should not be used as permanent installations.

SKU	Gas Type	CGA No.
312-15	Acetylene	CGA-300 Commercial Acetylene
312-322	Acetylene	CGA-300 Commercial Acetylene
312-815	Nitrogen	CGA-580 Nitrogen
312-806	Carbon Dioxide; Nitrogen	CGA-320 Carbon Dioxide; CGA-580 Nitrogen
312-810	Carbon Dioxide; Nitrogen	CGA-320 Carbon Dioxide; CGA-580 Nitrogen
312-324	Acetylene	CGA-200 “MC” Acetylene; CGA-510 POL Acetylene
312-306	Acetylene	CGA-200; CGA-520
312-51	Acetylene	CGA-300 Commercial Acetylene; CGA-510 POL Acetylene
312-61	Acetylene	CGA-300 Commercial Acetylene; CGA-510 POL Acetylene
312-316	Acetylene	CGA-300 Commercial Acetylene; CGA-520 “B” Tank
312-319	Acetylene	CGA-300 Commercial Acetylene; CGA-520 “B” Tank
312-317	Acetylene	CGA-510 POL Acetylene; CGA-520 “B” Tank
312-314	Acetylene	CGA 200; CGA 520
312-320	Acetylene	CGA 500; CGA 200
312-315	Acetylene	CGA-510; CGA-520
312-828	Air; Nitrogen	CGA 346; CGA 580
312-808	Hydrogen; Nitrogen	CGA 350; CGA 580

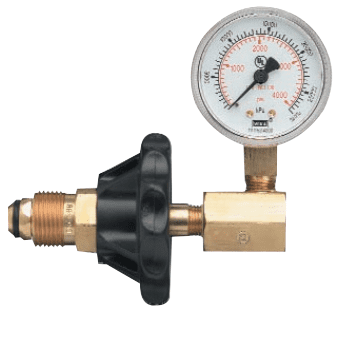

Cylinder Pressure Testing Gauges

Material: Brass

SKU	Gas Type	CGA No.
312-G-584H	Nitrogen	CGA-580
312-G-544H	Oxygen	CGA-540

Regulator Inlet Nipples

Features:
• Utilize this brass regulator inlet nipple for various gas regulators with a 1/4 NPT connection.
• The inlet nipple provides fast and semi permanent connection, however not as permanent installations.
• They are made up of a brass material for maximum durability.

SKU	Gas Type	Thread Size	Length	CGA No.
312-15-8CV	Acetylene (POL); Air; Argon; Helium; Medical Mixtures; Nitrogen	1/4 in (NPT)	2 1/2 in	CGA-500; CGA- 510; CGA-580; CGA-590
312-15-4	Acetylene (POL); Air; Argon; Helium; Medical Mixtures; Nitrogen	1/4 in (NPT)	3 1/2 in	CGA-500; CGA- 510; CGA-580; CGA-590
312-15-3SF	Acetylene (POL); Air; Argon; Helium; Medical Mixtures; Nitrogen	1/4 in (NPT)	3 in	CGA-500; CGA- 510; CGA-580; CGA-590
312-15-3	Acetylene (POL); Air; Argon; Helium; Medical Mixtures; Nitrogen	1/4 in (NPT)	3 in	CGA-510
312-SS-15-3	Acetylene (POL); Argon; Helium; Industrial Air; Nitrogen	1/4 in (NPT)	3 in	CGA-510; CGA- 580; CGA-590
312-615-3	Argon; Helium; Nitrogen; Acetylene (POL); Industrial Air	1/4 in (NPT)	3 1/2 in	CGA-510; CGA- 580; CGA-590
312-15-8	Argon; Helium; Nitrogen; Air; Acetylene (POL); Medical Mixtures	1/4 in (NPT)	2 1/2 in	CGA-580; CGA- 510; CGA-500; CGA-590
312-CO-4	Carbon Dioxide (CO2)	1/4 in (NPT)	2 1/2 in	CGA-320
312-CO-3	Carbon Dioxide (CO2)	1/4 in (NPT)	2 in	CGA-320
312-SS-60-3	Inert Gas	1/4 in (NPT)	2 1/2 in	CGA-677
312-680-3SF	Inert Gases; Flammable Gases; Air	1/4 in (NPT)	3 in	CGA-680; CGA- 695; CGA-702
312-66-SF	Oxygen	1/4 in (NPT)	2 1/2 in	CGA-540
312-63-CV	Oxygen	1/4 in (NPT)	2 in	CGA-540
312-69	Oxygen	1/4 in (NPT)	3 in	CGA-540

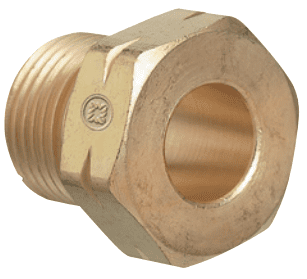

Regulator Inlet Nuts

Features:
• Machined to CGA specifications.
• Designed to accommodate a full range of gas service requirements.
• Easy to install.

SKU	Gas Type	Material	CGA No.
312-15-2	Acetylene (POL)	Brass	CGA-510
312-92	Argon; Helium; Nitrogen	Brass	CGA-580
312-692P	Argon; Helium; Nitrogen	Plastic	CGA-580
312-SS-92	Argon; Nitrogen; Helium	Stainless Steel	CGA-580
312-CO-2	Carbon Dioxide (CO2)	Brass	CGA-320
312-93	Industrial Air	Brass	CGA-590
312-SS-60-2	Inert Gas	Stainless Steel	CGA-677
312-680-2	Inert Gases	Brass	CGA-680
312-62	Oxygen	Brass	CGA-540

Regulator Inlet Replacement O-Rings

Features:
• CGA No: CGA‑510; CGA‑580; CGA‑590
Material: Viton

SKU	Gas Type
312-615-0	Acetylene (POL); Argon; Nitrogen; Helium; Industrial Air

Regulator Inlet Washers

Features:
• For use with regulator nuts and nipples.
• Designed to fit a full range of gas service requirements.

SKU	Gas Type	Material	CGA No.
312-CO-5	Carbon Dioxide (CO2)	Fiber	CGA-320
312-CO-6	Carbon Dioxide (CO2)	PTFE Fluorocarbon Resin	CGA-320
312-CO-6N	Carbon Dioxide (CO2), Non- Corrosive Gases	Nylon	CGA-320, CGA- 330
312-665	Refrigerant Gases, Mixtures	PTFE Fluorocarbon Resin	CGA-660, CGA- 670

Regulator Springs

Material: Brass
CGA No.: CGA‑320

SKU	Gas Type
312-RP320125	Carbon Dioxide

Replacement Tilt Valve

Features:
• Replacement tilt valve for balloon fillers.
• Brass construction with durable rubber tip.

SKU	Material
312-RPB-5-1V	Rubber

Regulators & Flowmeters

Flow Gauge Regulators

Features:
• Get an accurate regulation of gas flow with this light duty regulator.
• Features include an easy read flow gauge.
• It provides a reliable performance in commercial, industrial and laboratory applications.
Inlet Connection: CGA 580
Inlet Pressure: 4,000 psi

SKU	Gas Type	Flow Range
331-190AR-50	Argon Ar/CO2 MIX	0-50 psi
331-190AR-50-6HSP	ARGON	50 psi

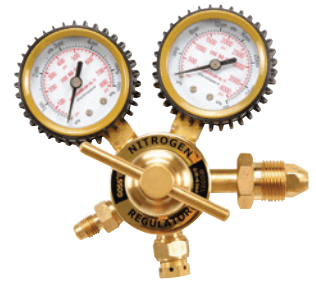

450 PSI Nitrogen Regulators

Features:
• Heavy-duty regulator that delivers the pressure and volume most requested by professionals.
• Maximum outlet pressure of 450 PSIG.
• Quality Forged and Machined Brass.

SKU	Gas Type	Inlet Connection	Outlet Pressure
328-EN-450F	Nitrogen	CGA 580	450 PSI

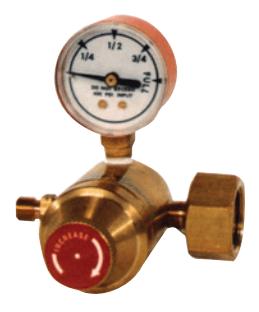

Air-Acetylene Regulators

Features:
• UL listed regulators manufactured of solid brass and made for rugged use.
• Specially designed conical seat and a neoprene diaphragm.
• The inlets have filters to prevent dirt from entering the regulator.

SKU	Wt.
328-EA-1G	1 1/2 lb

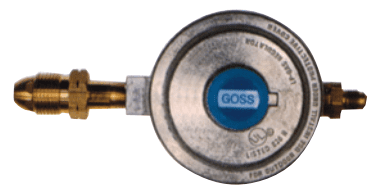

Propane Regulators

Features:
• All brass regulators used with propane torches and furnaces.
• Use only with vapor withdrawal cylinders.
• UL listed with POL inlet spud and nut.

SKU	Wt.	Outlet Pressure
328-EP-60-3	1.13 lb	11 inH2O
328-EP-70G	3.71 lb	60 psi

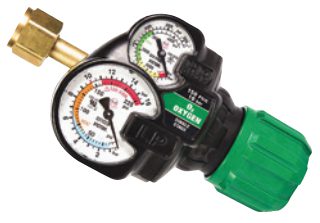

EDGE™ Series 2.0 Regulators

Features:
• Heavy‑duty, high‑capacity single stage cylinder regulators feature new and improved gauge designs that incorporate larger faced delivery gauge (low pressure) with high contrasted colored face for easy setting.
• Enhanced color‑coded knob designs provide more comfortable operations.
• Fully enclosed, highly visible modular gauges for more clarity with robust metal gauge guard.
• Consistent pressure and flow delivery.
• High resistance to oxygen related fires and SLAM knob absorbs impact in the event of a cylinder fall.

SKU	Length	Flow Range	Inlet Connection
341-0781-3602	6 in	2 - 15 psi	CGA 510
341-0781-3628	4 in	0-15 psi	CGA 510
341-0781-3627	4 in	0-60 psi	CGA 540
341-0781-3601	—	5 - 150 psig	CGA 540

G350 Single Stage Regulators

Features:
• Ergonomic color‑coded adjustment knob.
• High contrast gauge face.
• High strength alloy bonnet.

SKU	Wt.	Gas Type	Flow Range	Inlet Connection	Inlet Pressure	Outlet Pressure
341-0781-9420	3.55 lb	Acetylene	0-15 psi	CGA-510	15 psig	15 psig
341-0781-9415	3.55 lb	Oxygen	2-150 psi	CGA-540	150 psig	150 psig

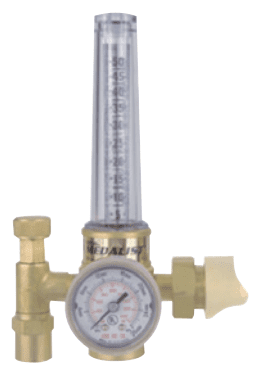

HRF 1400 Medalist™ Flowmeters

Features:
• For measuring and regulating gas flow.
• Made in the U.S.A..
Test & Approvals: UL Listed
Gas Type: Argon; Argon/CO2
Flow Range: Up to 50 CFH Argon, Up to 38 CFH Co2
Inlet Connection: CGA 580

SKU	Inlet Pressure	Outlet Pressure
341-0781-2723	3,000 psig	25 psig

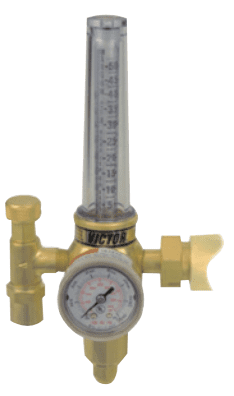

HRF 2400 Single Stage Regulators/Flowmeters

Features:
• MIG/TIG applications.
• Internal self reseating relief (not designed to protect downstream apparatus).
• Back pressure compensated.
• Lexan flowmeter tube and cover.
Test & Approvals: UL Listed; Conforms to CGA E‑4
Gas Type: Argon; Argon/CO2; Helium
Flow Range: 10 ‑ 50 SCFH Argon; 20 ‑ 150 Helium

SKU	Inlet Connection	Inlet Pressure	Outlet Pressure
341-0781-2731	CGA 580	3,000 psig	25 psig

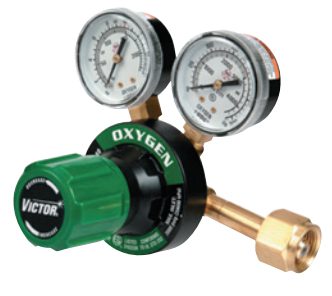

Medium Duty G Series

Features:
• Easy‑to‑read high contrast gauges for clarity.
• Color‑coded knobs indicate gas type.
• Designed for better comfort when adjusting gas pressure.
• High Strength alloy bonnet with nearly twice the yield strength of brass.
• Lower profile regulator with less knob stickout.
Flow Range: 1‑15 psig

SKU	Gas Type	Inlet Connection	Inlet Pressure	Outlet Pressure
341-0781-9405	Acetylene	CGA 510	400 psig	150 PSIG
341-0781-9400	Oxygen	CGA 540	3,000 psig	150 psig

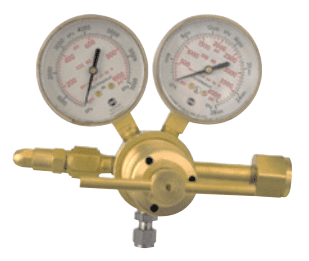

SR 4 High Pressure Single Stage Piston Regulators

Features:
• May be panel mounted.
• All SR 4 series regulators have a swaged lock type stainless steel outlet fitting.
• Cartridge type seat assembly with PCTFE seat.
• Delrin® cap bushing for smooth adjustments.
• External adjustable relief valves on F and G range models.
• Hydrogen models have ventable relief valves.
Test & Approvals: UL Listed; Conforms to CGA E‑4
Gas Type: Inert Gas
Flow Range: 200 ‑ 3000 psig

SKU	Inlet Pressure	Outlet Pressure	Inlet Connection
341-0781-1448	3,000 psig	3,000 psig	CGA 580

SR 450 Series Single Stage Heavy Duty Regulators

Features:
• Medium to high gas service capacity.
• Single stage design.
• Stem type seat mechanism.
• Delrin® cap bushing for smooth adjustments.
• External self reseating relief valve not designed to protect downstream apparatus.
Test & Approvals: UL Listed; Conforms to CGA E‑4
Inlet Pressure: 3,000 psig

SKU	Wt.	Gas Type	Flow Range	Inlet Connection	Outlet Pressure
341-0781-0584	5-1/8 lb	Acetylene	2 - 15 psig	CGA 510	15 psig
341-0781-0527	5-1/8 lb	Air; Oxygen; Inert Gas	5 - 125 psig	CGA 540	125 psig

Deluxe Balloon Inflators

Features:
• Heavy-duty all brass piston design.
• Replaceable rubber tilt valve for simple, fast inflation of latex balloons.
• Replaceable brass quick tie hook for use with latex balloon sealing discs.
• Filtered throughout to trap foreign matter and extend regulator life.
Gas Type: Helium

SKU	Inlet Connection	Inlet Pressure
312-RPB-6HG	CGA 580	3,000 psi

Economy Balloon Inflators

Features:
• Horizontal one‑piece design with all brass piston construction.
• Replaceable Viton® O‑Ring.
• Hand tight design provides leak‑free connection.
• Replaceable rubber tilt valve.
Gas Type: Helium

SKU	Inlet Connection	Inlet Pressure
312-R125	CGA 580	3,000 psi

Economy Balloon Inflators with Gauge

SKU	Inlet Connection	Inlet Pressure
312-R125G	CGA 580	3,000 psi

Flow Gauge Regulators

Features:
• Dual scale flow gauge calibrated for Argon/Carbon Dioxide services.
• Durable Neoprene diaphragm maintains consistent flow rates.
• Protective inlet filtering system extends regulator life.
• KEL‑F® seat assembly.
Test & Approvals: UL Listed
Gas Type: Argon

SKU	Inlet Connection	Inlet Pressure
312-REB-3-FG	CGA 580	3,000 psi

M1 Series Flow Gauge Regulators

Features:
• Chrome‑plated brass body with all brass high‑pressure chamber.
• Internal reseating relief valve protects against overpressurization.
• Standard DISS 1240 outlet connection and plastic swivel hose barb.
Test & Approvals: UL Listed; Tested to CGA Standards which Include Ignition Testing
Gas Type: Oxygen
Flow Range: 2 ‑ 15 LPM
Inlet Pressure: 3,000 psi

SKU	Length	Wt.	Inlet Connection	Outlet Pressure
312-M1-540-15FG	2 in	1 lb	CGA-540 Nut and Nipple	120 PSIG
312-M1-870-15FG	—	2.98 lb	CGA-870 Yoke	50 PSIG

M1 Series Preset Pressure Gauge Regulators

Features:
• Chrome‑plated brass body with all brass high‑pressure chamber.
• 1100 SCFH air maximum rated flow at 2000 psi.
• Internal reseating relief valve protects against overpressurization.
• DISS gas specific outlets.

SKU	Gas Type	Inlet Connection	Inlet Pressure	Outlet Pressure
312-M1-326-P	Nitrous Oxide	CGA-326	2,000 psi	100 PSI
312-M1-540-P	Oxygen	CGA-540 Nut and Nipple	3,000 psi	50 psi

M1 Series Pressure Gauge Regulators

Features:
• Chrome‑plated brass body with all brass high‑pressure chamber.
• 2000 SCFH air maximum rated flow at 2000 psi.
• Internal reseating relief valve protects against overpressurization.
• Dual scale pressure gauge: psi and kPa.
• DISS gas specific outlets.
Test & Approvals: UL Listed
Gas Type: Oxygen
Inlet Connection: CGA‑540 Nut and Nipple

SKU	Outlet Pressure	Inlet Pressure
312-M1-540-PG	100 psi	4,000 psi

Manifold Blocks

Features:
• Hex Block Manifold.
• NPTF Outlets.

SKU	Material
312-MB-6	Brass

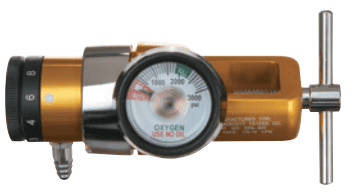

OPA Series Compact Click-Style Regulators

Features:
• Dial‑in flow control.
• Hose barb outlet.
• Compact aluminum body with brass inlet chamber.
• Internal reseating relief valve protects against overpressurization.
• OPA series designed for pediatric, homecare, hospital and emergency applications.
Test & Approvals: Tested to CGA Standards which Include Ignition Testing
Gas Type: Oxygen
Flow Range: 1/4, 1/2, 1, 2, 3, 4, 6, 8, 10, 15 LPM
Inlet Connection: CGA‑870 Yoke

SKU	Inlet Pressure	Outlet Pressure
312-OPA-820	3,000 psi	500 psi

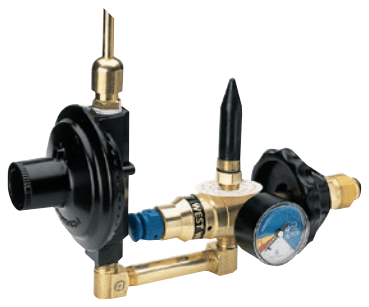

$Professional Foil-Latex Balloon Inflators$

Professional Foil/Latex Balloon Inflators

Features:
• Large hand tight connection permits easy attachment to a cylinder.
• Versatile brass push valve provides fast inflation of balloons.
• Durable, large brass tip inflates 9” to 40” latex balloons.
• Easy‑to‑use replaceable ribbon cutter.
• Color‑coded cylinder contents gauge clearly indicates gas level.
• Tapered foil tip allows for easy insertion into foil balloons.
• Quick tie hook makes balloon tying more efficient.
Gas Type: Helium
Inlet Pressure: 3,000 psi

SKU	Wt.	Flow Range	Inlet Connection	Outlet Pressure
312-RPB-62HGV	1.18 lb	—	—	—
312-BR4HG	3.96 lb	38-85 PSIG	CGA 580	N/A

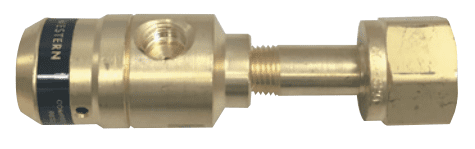

Regulators

Features:
• Compact and lightweight design.
• Easy‑to‑use handtight connection; no wrench required.
• Durable and easy‑to‑read contents gauge.

SKU	Wt.	Gas Type	Outlet Pressure
312-RP320100	0.98 lb	CO2	100 PSIG
312-RP320150	0.98 lb	CO2	150 PSIG
312-ACU-200	1.38 lb	CO2/Argon	20 psi

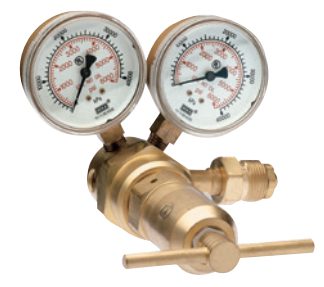

RS Series High Delivery Pressure Regulators

Features:
• Machined brass body and bonnet resists corrosion and extends service life.
• Dependable brass piston design.
• KEL‑F™ seat assembly withstands high service pressures.
• Dual inlet filtering extends regulator life.
• Outlet 180° opposed to inlet.
Gas Type: Inert Gas
Flow Range: 2,850 SCFH Nitrogen

SKU	Inlet Connection	Inlet Pressure	Outlet Pressure
312-RS-11-20	CGA 580	3,000 psi	1,500 psi; 2,000 psi

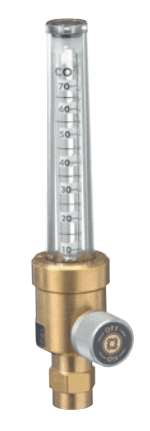

RWS Series Flowmeters

Features:
• Durable flow tube with large, easy‑to‑read gradients and shatter‑resistant cover.
• Dual calibrated.
• Sensitive, easily adjusted needle valve.
• Protective inlet filter extends flowmeter life.
• Made in the U.S.A.
Gas Type: Argon/CO2
Flow Range: 0 ‑ 70 SCFH
Inlet Connection: 1/8 in NPT F

SKU	Inlet Connection	Outlet Pressure
312-RWS-2-13	1/8 in NPT F	50 PSIG

VN Series HVAC Nitrogen - Purging Regulators/Flowmeters

Features:
• Hybrid design—regulator and flowmeter all in one.
• Easy‑to‑read nitrogen cylinder content gauge with preset flow rates.
• Heavy‑duty brass body designed for rugged field use.
• No adaptors needed.
Inlet Connection: CGA‑580

SKU	Length	Wt.	Flow Range	Inlet Pressure	Outlet Pressure
312-VN-250	5 1/2 in	2 lb	0-35 CFH	2200 psi	250 psi
312-VN-500	5 1/2 in	2 lb	0-35 CFH	2200 psi	500 psi
312-VN-650	5-1/2 in	2 lb	25-35 CFH	3,000 psi	650 psi

Tips & Nozzles

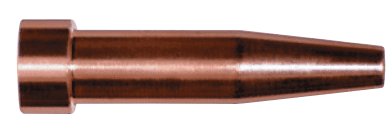

Harris® Style Replacement Tips - 6290 Series

Features:
• Durable two‑piece copper tip.
• Designed for general hand cutting.
• For acetylene‑oxygen torches.
• Fits Harris® 42, 62, 72, 72A, 73, 73A,142, 880 and 85 series torches.
Head Type: Cutting Torch

SKU	Tip Size Symbol	Gas Type
900-6290-1	1	Acetylene-Oxygen
900-6290-2	2	Acetylene-Oxygen
900-6290NX-2	2	Propane-Oxygen or Natural Gas-Oxygen

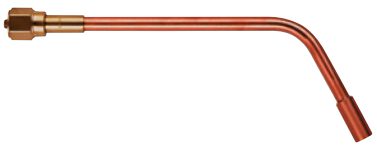

Victor® Style Heating Tip - MFA Series

Features:
• Heating tip for acetylene‑oxygen, propylene‑oxygen, or MapPro‑Oxygen torches.
• Multiflame nozzle for preheating and straightening.
• Fits 300 series torches.
Material: Copper
Gas Type: Acetylene‑Oxygen
Process: Preheating; Straightening
Used With: Acetylene‑Oxygen
Head Type: Cutting Torch

SKU	Type	Tip Size Symbol
900-MFA-8	Heating Tip	8

Victor® Style Replacement Tip - 1-101 Series

Features:
• Durable copper construction replacement tip.
• Designed for hand and machine cutting.
• Fits Torches: 2460, CA 1060, ST, SST, 1400C machine torches.
Material: Copper
Gas Type: Acetylene‑Oxygen
Process: Hand or Machine Cutting
Used With: Acetylene‑Oxygen
Head Type: Cutting Torch

SKU	Tip Size Symbol	Wt.
900-1-101-0	0	0.21 lb
900-1-101-00	0	0.22 lb
900-1-101-1	1	0.22 lb
900-1-101-2	2	0.21 lb
900-1-101-3	3	0.23 lb
900-1-101-4	4	0.23 lb
900-1-101-5	5	0.21 lb

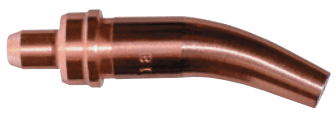

Victor® Style Replacement Tip - 1-118 Series

Features:
• For use with acetylene‑oxygen torches.
• For gouging, scarfing and deseaming.
• Fits 2460, CA 1060, ST, SST, 1400C torches.
Material: Copper
Gas Type: Acetylene‑Oxygen
Process: Gouging; Scarfing; Deseaming
Head Type: Cutting Torch

SKU	Type	Tip Size Symbol
900-1-118-2	Cutting Tip	2

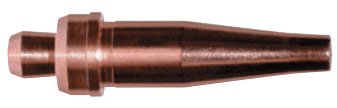

Victor® Style Replacement Tip - 3-101

Features:
• For acetylene‑oxygen torches.
• Fits CA 1260, CA 1350, C 1450, CA 2060, CA 2460, CST 800, C 1400 torches.
Material: Copper
Gas Type: Acetylene‑Oxygen
Process: Hand or Machine Cutting
Head Type: Cutting Torch

SKU	Type	Tip Size Symbol	Wt.
900-3-101-0	Cutting Tip	0	0.13 lb
900-3-101-00	Cutting Tip	0	0.13 lb
900-3-101-1	Cutting Tip	1	0.13 lb
900-3-101-2	Cutting Tip	2	0.14 lb

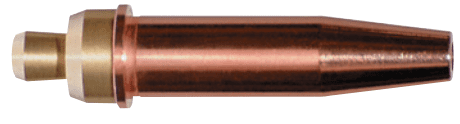

Victor® Style Replacement Tip - GPN Series

Features:
• Durable two‑piece copper construction replacement tip.
• Designed for general hand and machine cutting.
• For propane‑oxygen or natural gas‑oxygen torches.
Material: Copper
Gas Type: Propane‑Oxygen, Natural Gas‑Oxygen
Used With: Propane‑Oxygen, Natural Gas‑Oxygen
Head Type: Cutting Torch

SKU	Type	Tip Size Symbol
900-GPN-2	Cutting Tip	2
900-GPN-3	Cutting Tip	3

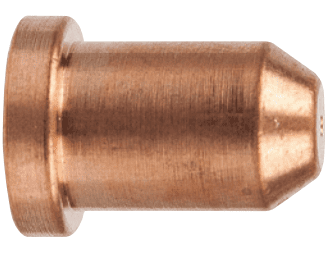

Cutting Tips Thermal Dynamics

Features:
• OEM consumable.
• Designed for cutting torch applications.
Material: Copper
Process: Drag Shield Cutting
Used With: SL60; SL100

SKU	Type	Gas Type
365-9-8209	50-55 Amp	Plasma

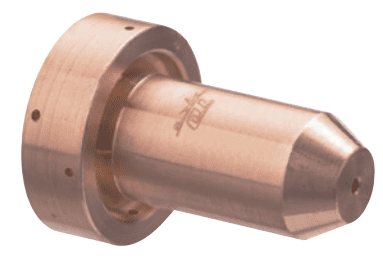

SL100 Tips

Features:
• Standard plasma cut tip.
• Produces fast, quality cut with little to no distortion.
• Genuine manufacturer consumable.
Material: Copper
Used With: SL100

SKU	Type	Head Type
365-9-8253	120 Amp Standoff	Straight

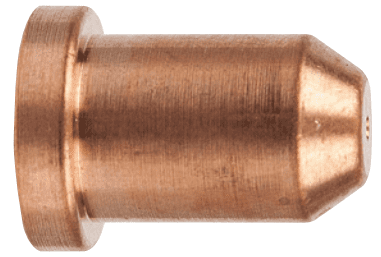

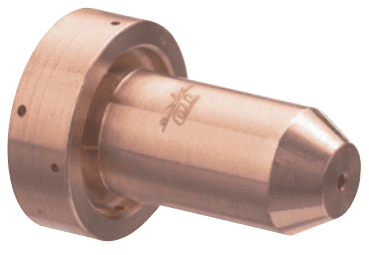

SL60/SL100 Tips

Features:
• Standard plasma cut tip.
• Produces fast, quality cut with little to no distortion.
• Specifically designed for plasma torches.
Material: Copper
Used With: SL60; SL100
Head Type: Straight

SKU	Type	Wt.
365-9-8210	60 Amp	0.01 lb
365-9-8252	60 Amp Drag	0.15 lb
365-9-8211	80 Amp	0.11 lb
365-9-8212	90-100 Amp	0.13 lb

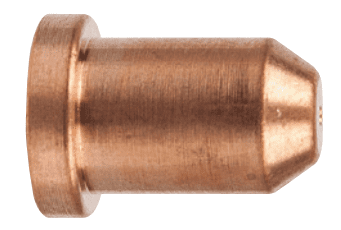

Tips

Features:
• Quality replacement drag tip.
• Produces the best cut quality, narrowest kerf width, fastest cutting speeds, with little to no distortion.
• Specifically designed for plasma torches.
Material: Copper
Used With: SL60; SL100

SKU	Type	Head Type
365-9-8207	40 Amp Drag	Straight

Tip Swirls

Features:
• Manual lighting tip can be used with any Air Acetylene torch (PLF‑A5 or G‑4) handle.
• Features a removable orifice screw and color coded “O” rings (red for acetylene).
Gas Type: Acetylene
Process: High capacity applications

SKU	Tip Size Symbol	Orifice	Used With	Head Type	Wt.
341-0386-0104	A-11	7/16 in	PLF-A5; G-4	Curved	0.2 lb
341-0386-0105	A-14	1/2 in	PLF-A5; G-4	Curved	0.25 lb
341-0386-0106	A-32	3/4 in	PLF-A5; G-4	Curved	0.5 lb
341-0386-0102	A-5	1/4 in	Acetylene	—	—
341-0386-0103	A-8	5/16 in	PLF-A5; G-4	Curved	0.62 lb

3-118 One Piece Cutting Tips

Features:
• Deseaming, scarfing, gouging, weld preparation, removing defective welds, washing rivets.
Gas Type: Acetylene
Used With: MT 200; ST 1000FC; ST 2600FC; ST 900FC; MT 1065; MT 300; MT 5
Head Type: Straight

SKU	Type	Tip Size Symbol
341-0331-0035	118	2

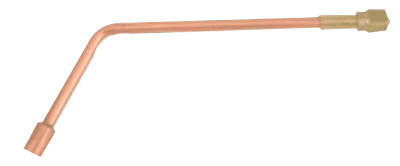

300FC Series Heating Nozzles

Features:
• Multi‑flame heating head for pre‑heating, straightening and priming.
• Individual spiral mixer.
• Brass coupling nut with built‑in snap ring.
• Double O‑ring seal.
• 100% flame tested.
Gas Type: Acetylene; Hydrogen
Used With: 300FC Series Torch Handles
Head Type: Type MFA

SKU	Type	Tip Size Symbol	Orifice	Wt.
341-0323-0260	MFA	10	Size 10	1.37 lb
341-0323-0251	MFA	6	Size 6	1.15 lb
341-0323-0252	MFA	8	Size 8	1.15 lb

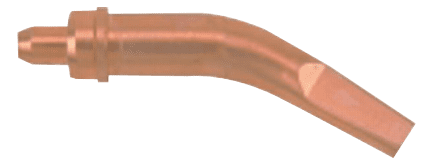

Cutting Tips for Boiler Tube Removal

Features:
• Boiler tube removal.
• Tip is short to insert head and tip inside tube.
Gas Type: Acetylene

SKU	Type	Tip Size Symbol	Orifice	Used With
341-0330-0059	108	1	Size 1	ST2600FC Series
341-0330-0063	108	2	Size 2	MT200; ST1000FC; ST2600FC; ST900FC; MT1065; MT300; MT5

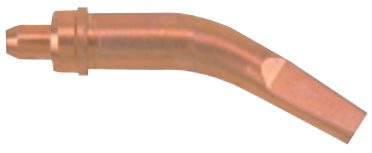

Cutting Tips Round Tip 1-118

Features:
• Deseaming, scarfing, gouging, weld preparation, removing defective welds, washing rivets.
• Round tip.
• Cutaway tip.
Gas Type: Acetylene
Used With: MT200; ST1000FC; ST2600FC; ST900FC; MT1065; MT300; MT5
Head Type: Type 118

SKU	Tip Size Symbol	Orifice
341-0330-0109	0	Size 0
341-0330-0113	2	Size 2
341-0330-0114	4	Size 4

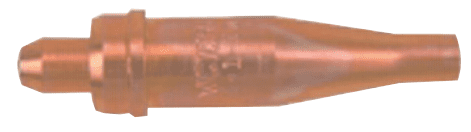

Hand and Machine Cutting Tips

Features:
• Hand and machine torch cutting.
• Machine cutting 30° with torch perpendicular.
Gas Type: Acetylene

SKU	Type	Tip Size Symbol
341-0330-0198	101	0
341-0330-0199	101	1
341-0330-0284	101	2

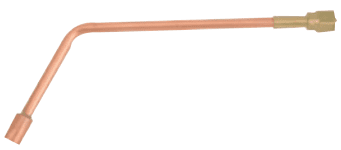

MFA Heating Nozzles

Features:
• Multi‑flame heating head for heat treating, straightening, and priming.
• Individual spiral mixer.
• Brass coupling nut with built‑in snap ring.
• Double O‑ring seal.
• 100% flame tested.
Orifice: Size 12
Gas Type: Acetylene; Hydrogen
Used With: HD310C Series
Head Type: Type MFA

SKU	Type	Tip Size Symbol
341-0323-0261	MFA	12

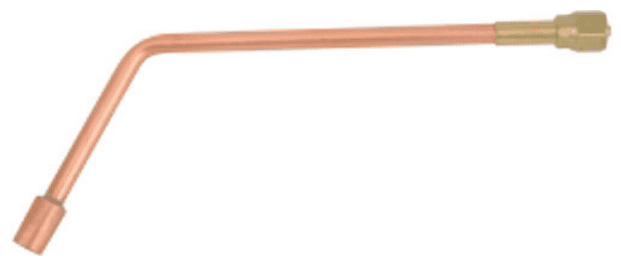

MFA Heavy Duty Heating Nozzles

SKU	Tip Size Symbol	Orifice	Gas Type	Head Type
341-0387-0062	8	Size 8	Acetylene; Hydrogen	Type MFA

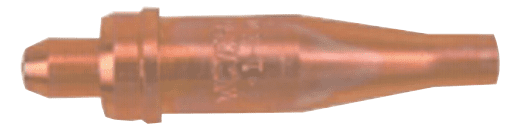

Series 1 Type 101 Cutting Tips

Features:
• Hand and machine torch cutting.
• General purpose tip.
• Genuine manufacturer consumable.
Material: Copper
Gas Type: Acetylene
Process: Cutting
Head Type: Straight

SKU	Type	Tip Size Symbol	Orifice	Used With
341-0330-0012	101	0	Size 0	MT 200; ST 1000FC; ST 2600FC; ST 900FC; MT 1065; MT 300; MT 5
341-0330-0004	101	0	Size 00	MT 200; ST 1000FC; ST 2600FC; ST 900FC; MT 1065; MT 300; MT 5
341-0330-0003	101	0	Size 000	MT 200; ST 1000FC; ST 2600FC; ST 900FC; MT 1065; MT 300; MT 5
341-0330-0005	101	1	Size 1	100FC; J Series; CST 800FC
341-0330-0006	101	2	Size 2	100FC; J Series; CST 800FC
341-0330-0002	101	3	Size 3	MT 200; ST 1000FC; ST 2600FC; ST 900FC; MT 1065; MT 300; MT 5
341-0330-0007	101	4	Size 4	100FC; J Series; CST 800FC
341-0330-0008	101	5	Size 5	MT 200; ST 1000FC; ST 2600FC; ST 900FC; MT 1065; MT 300; MT 5

Series 1 Type GPN One Piece Cutting Tips

Features:
• Hand and machine cutting torches.
• Designed for propane and natural gas usage.
Material: Copper
Used With: MT 200; ST 1000FC; ST 2600FC; ST 900FC; MT 1065; MT 300; MT 5

SKU	Tip Size Symbol	Orifice	Gas Type	Head Type
341-0333-0304	2	Size 2	Propane; Natural Gas	Straight

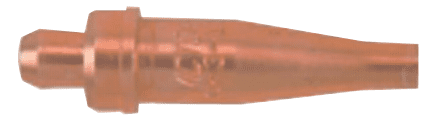

Series 3 Type 101 One Piece Cutting Tips

Features:
• Hand and machine torch cutting.
• Designed for acetylene usage.
• General purpose cutting tip.
Material: Copper
Gas Type: Acetylene
Process: Cutting
Used With: 100FC; J Series; CST 800FC
Head Type: Straight

SKU	Type	Tip Size Symbol	Orifice	Wt.
341-0331-0013	101	0	Size 0	2.96 lb
341-0331-0009	101	0	Size 00	2.97 lb
341-0331-0002	101	0	Size 000	2.99 lb
341-0331-0014	101	1	Size 1	2.97 lb
341-0331-0015	101	2	Size 2	0.19 lb

Type MFTA Heating Tips

Features:
• For pre‑heating before welding, descaling and paint burning, etc.
• Designed for acetylene usage.
• Premium quality replacement heating tip.
Used With: 315FC; CA2460; CA2461; CA2462; ST2600FC; ST100FC; ST900FC; H315FC; HC1200C; MT200; MT300
Head Type: Straight

SKU	Type	Tip Size Symbol
341-0330-0528	MFTA	8

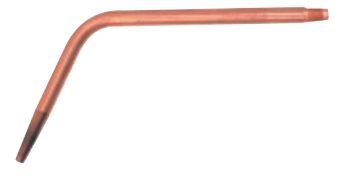

W Series Welding Nozzles

Features:
• Double O‑ring seal.
• 100% flame tested.
• Individual spiral mixer.
• Brass coupling nut with built‑in snap ring.

SKU	Type	Tip Size Symbol	Gas Type	Used With
341-0323-0120	W	1	Acetylene; Hydrogen	300 Series
341-0323-0122	W	3	Acetylene	300 Series; 100 Series
341-0323-0130	W	4	Acetylene; Hydrogen	300 Series
341-0323-0131	W	5	Acetylene; Hydrogen	300 Series

Torches & Handles

Plus Series Torches

Features:
• The heavy‑duty, high capacity welding handle and cutting attachment.
• The new series comes with improved flow, connectivity, durability and reparability for superior ease of use.
• Improved head durability, preheat control valve flow and reduced user fatigue due to improved balance.
• Improved access and reparability of mixer with single nut removal.
• Superior cutting oxygen valve with improved feathering/ease‑on control.
Uses Cutting Tip: Series 1
For Model: WH 315FC+

SKU	Cutting Cap.	Length	Head Angle
341-0381-1932	8 in	10 in	180°
341-0381-1928	8 in	10 in	90°

Plus Series Welding Handles

SKU	Length
341-0382-0093	9 in

Trigger Torches

Features:
• Meet CPSC requirements.
• Self igniting with safety lock, adjustable broad or pinpoint flame.
• Built‑in refillable plastic fuel tank.
Test & Approvals: CSA/US; Meets CPSC Requirements; TUV/GS

SKU	Length
467-MT-76	6 1/2 in

100FC Series Medium Duty Cutting Attachments

Features:
• Die‑forged brass head.
• Spiral mixer blends oxygen and fuel.
• Smooth cutting valve (pull type).
• Stainless steel tubes.
• Brass coupling nut and Double “O” ring steel gives quick gas‑tight seal tightening without wrench.
Test & Approvals: UL Listed
Uses Cutting Tip: Series 3
For Model: 100FC

SKU	Cutting Cap.	Length	Head Angle
341-0381-0418	6 in	8 in	90°

Heavy Duty 300 Series Torch Handles

Features:
• Cover the full range of welding, cutting and heating needs.
• Performance matched cutting attachments are available for each tool handle series.

SKU	Length
341-0382-0015	11 in

Heavy Industry Straight Cutting Torches

Features:
• They combine the spiral and injector mixer principles.
• The result is a high performance torch that operates on any fuel gas.
• Stainless Steel Tubes for greater strength & durability.
• Brass head for maximum durability.
• Designed for heavy cutting applications found in such industries as scrapping, demolition and foundries.

SKU	Cutting Cap.	Length	Head Angle
341-0381-1641	5 in	21 in	90°

Medium Duty 100 Series Torch Handles

Features:
• Performance matched cutting attachments are available for each torch handle series.
• Victor traditional threaded assembly.
Test & Approvals: UL Listed

SKU	Length
341-0382-0032	8 1/2 in

MT 200 Two Hose Machine Cutting Torches

Features:
• Straight through design.
• High performance mixer design.
Test & Approvals: UL Listed
Uses Cutting Tip: Series 1

SKU	Cutting Cap.	Length
341-0380-0215	7 in	8 1/2 in
341-0380-0217	7 in	14 in

ST2600 Series Cutting Torches

Features:
• For use with all fuel gas.
• Cutting capacity 1/8 in to 8 in.
• Includes built‑in patented flashback arrestors and reverse flow check valves for added safety.
Test & Approvals: UL Listed
Uses Cutting Tip: Series 1

SKU	Cutting Cap.	Length	Head Angle
341-0381-1480	8 in	21 in	90°

ST900 Series Straight Cutting Torches

Features:
• Cutting capacity 1/8 in to 5 in.
• Includes built‑in patented flashback arrestors and reverse flow check valves for added safety.
Test & Approvals: UL Listed
Uses Cutting Tip: Series 1

SKU	Cutting Cap.	Length	Head Angle
341-0381-1621	5 in	21 in	90°

MANUAL WELDING

Electrode Holders

Electrode Cap.: 1/4 in
Cable: Model “B” large ball point screw connection
Length: 8 3/4 in

SKU	Process	Amps
360-40B	MIG	400 A at 60% duty cycle

Electrode Holders - High Tong Type

Features:
• Lever designed for better hand clearance and better hold.
• Made from high quality materials for both high conductivity and improved cable connections.
• Ergonomically designed heavy‑duty shock‑proof nylon handle.
Body Material: Brass

SKU	Amps	Electrode Cap.	Cable Cap.	Length
900-A-532	200 A	4 mm	#3	8.46 in
900-A-316	250 A	5 mm	1/0	9.25 in
900-A-732	300 A	6.3 mm	1/0	10.04 in

Electrode Holders - Stub Type

Features:
• Lightweight and easy to use.
• Better maneuverability‑great for tight places.
• Angle‑head allows excellent visibility of production work.
• Efficient grooved jaw design insures firm electrode grip.
Electrode Cap.: 5 mm
Cable Cap.: Jan‑00
Length: 8.78 in
Body Material: Brass

SKU	Process	Amps
900-40-B	Manual Arc Welding	400 A

Lever Designed Electrode Holders

SKU	Amps	Electrode Cap.	Cable Cap.	Length
900-AF-50	500 A	3/8 in	4/0	12 1/4 in
900-AF-2	200 A	4 mm	#3	8.54 in
900-AF-25	250 A	5 mm	1/0	8.54 in
900-AF-3	300 A	6.3 mm	3/0	10.31 in

Manual-Arc Welding Electrode Holders

Features:
• Fully insulated spring.
• Integral grooves.
• Integrated jaw pattern for multi‑position electrode holding.

SKU	Amps	Electrode Cap.	Cable Cap.	Body Material
138-14684	400 A	1/4 in	2 AWG - 1/0 AWG	Copper Alloy
138-14682	300 A	1/4 in	3 AWG - 2/0 AWG	Aluminum Alloy
138-14680	300 A	1/4 in	4 AWG - 2/0 AWG	Copper Alloy
138-14679	250 A	3/16 in	4 AWG - 1/0 AWG	Copper Alloy
138-14681	500 A	3/8 in	4 AWG - 2/0 AWG	Copper Alloy
138-14683	200 A	5/32 in	4 AWG - 1/0 AWG	Aluminum Alloy

LE AF/HT Electrode Holders

Features:
• Upper and lower tongs are made from a high copper alloy for maximum conductivity and strength.
• Handles are molded from a durable glass filled nylon material with a good heat and impact resistance.
• Oval‑point screw cable connection is standard on all models.

SKU	Amps	Electrode Cap.	Length
380-01340	350 A	1/4 in	10 1/2 in
380-01040	350 A	1/4 in	10 in
380-01050	400 A	1/4 in	10 1/2 in
380-01030	300 A	3/16 in	8 1/2 in
380-01330	300 A	3/16 in	9 3/4 in
380-01360	500 A	3/8 in	10 1/2 in
380-01060	500 A	3/8 in	10 1/2 in
380-01020	250 A	5/32 in	8 1/4 in
380-01320	250 A	5/32 in	9 in

Twister Electrode Holders

Features:
• Design minimizes exposed screws, internal metal parts or any current carrying members in the holder for added user safety.
• The entire head assembly can be removed and a new one screwed on in seconds.
Cable Cap.: Mar‑00

SKU	Amps	Electrode Cap.	Length	Body Material
380-01410	400 A	1/4 in	8 15/16 in	—
380-01420	250 A	3/16 in	8 in	Nylon; Glass

Electrode Holders

Features:
• Twist style head provides the gripping force to hold the welding electrode in place.
• Reversible top and bottom insulators.
Cable Cap.: Feb‑00

SKU	Process	Amps	Electrode Cap.	Body Material
358-9110-1181	—	250 A	3/16 in	—
358-9110-1109	Manual Arc Welding	220 A	5/32 in	Copper Alloy

Tite Electrode Holders

Features:
• Features reversible top and bottom insulators.
• Efficient six‑position jaw patterns and fully insulated, protected springs.
Electrode Cap.: 1/4 in
Length: 9 in
Body Material: Copper Alloy

SKU	Process	Amps	Cable Cap.
358-9120-1000	Manual Arc Welding	400 A	Thru 3/0

Tong® Electrode Holders

Features:
• Reversible top and bottom Insulators.
• Efficient six‑position jaw patterns and fully insulated, protected springs.
• Ball‑point cable connection.
Body Material: Copper Alloy

SKU	Amps	Electrode Cap.	Cable Cap.	Length
358-9110-1105	400 A	1/4 in	Double Ball Point - 4/0	12 in
358-9110-1102	250 A	3/16 in	Ball Point - 2/0	9 1/4 in
358-9110-1101	200 A	5/32 in	Ball Point - 2/0	8 1/2 in
358-9110-1103	300 A	7/32 in	Ball Point - 2/0	10 in

Twecotong® Electrode Holders

Features:
• One‑piece ergonomic handle fits comfortably in the palm and minimizes hand fatigue.
• Features fully insulated and protected springs.
• Reversible top and bottom insulators are constructed of quality thermo‑set material for strength and durability at high‑temperatures.
Cable Cap.: Feb‑00
Length: 9 1/2 in
Body Material: Plastic; Copper

SKU	Process	Amps	Electrode Cap.
358-9110-1131	Arc Welding	200 A	4 mm
358-9110-1132	Arc Welding	250 A	4.8 mm

MIG WELDING

Mig Gun Parts & Accessories

Elliptical Contact Tips

Features:
• Elliptical contact tip engages the wall of the gas diffuser locking firmly into place with a 1/4 in turn.
• These tips have a much longer surface area for electrical and heat transfer than fine threaded tips for extended tip life.

SKU	Material	Wire Size	Used With	Overall Length
360-T-062	Brass	1/16 in	Standard air-cooled Bernard Q-Guns and S-Gun MIG Guns	1.5 in
360-T-035	Brass	0.035 in	BTB Series MIG Gun; Dura-Flux Fixed Liner Series; FILTAIR Fume Extraction Series; Legacy Q-Gun; NEW Clean Air Series; S-Gun Series	1.5 in
360-TT-035	Brass	0.035 in	BTB Series MIG Gun; Dura-Flux Fixed Liner Series; FILTAIR Fume Extraction Series; Legacy Q-Gun; NEW Clean Air Series; S-Gun Series	2 in
360-TT-045	Brass	0.045 in	BTB Series MIG Gun; Dura-Flux Fixed Liner Series; FILTAIR Fume Extraction Series; Legacy Q-Gun; NEW Clean Air Series; S-Gun Series	2 in
360-T-045	Copper	0.045 in	BTB Series MIG Gun; Dura-Flux Fixed Liner Series; FILTAIR Fume Extraction Series; Legacy Q-Gun; NEW Clean Air Series; S-Gun Series	1.5 in
360-T-052	Copper	0.052 in	BTB Series MIG Gun; Dura-Flux Fixed Liner Series; FILTAIR Fume Extraction Series; Legacy Q-Gun; NEW Clean Air Series; S-Gun Series	1.5 in

Quik Tip Contact Tips

Features:
• Designed with threaded taper lock that increases tip life by providing excellent heat transfer and electrical conductivity.
• Fits all Best of the Best (BTB) Platform MIG guns ‑ from 200 ‑ 600 amps.
• If gun was manufactured prior to June 1, 2014, then only compatible with Q‑Gun™ and S‑Gun™ Series MIG guns.

SKU	Material	Wire Size	Used With
360-T1045	Copper	0.045 in	Mig Guns
360-T2035	Copper	0.035 in	BTB Series MIG Gun; Dura-Flux Replaceable Liner Series; FILTAIR Fume Extraction Series; Legacy Q-Gun; NEW Clean Air Series; S-Gun Series; W-Gun Series
360-T1116	Copper	1/16 in	Mig Guns

Quik Tips

Features:
• Designed with threaded taper lock between contact tip and gas diffuser.
• Provides excellent heat transfer and electrical conductivity.
Wire Size: 0.045 in
Used With: Bernard™ Q‑Gun™, Bernard™ S‑Gun™
Overall Length: 1.74 in

SKU	Tip I.D.	Material
360-T2045	.045 in	Copper

MIG Contact Tips

Features:
• Works with gas diffuser Bernard Q/S series MIG guns or equivalent guns.
• Industry part number easily recognizable.

SKU	Tip I.D.	Wire Size	Used With
900-000-067	.036 in	0.030 in	M15; M25/25M; M40/40AL
900-11-30	.038 in	0.03 in	135 Mig Guns; Tweco® Mini Mig Guns; Tweco® No. 1 Mig Guns
900-14H-35	.044 in	0.035 in	250/400; Tweco® No. 2, 3, 4 Mig Guns
900-11-35	.044 in	0.035 in	135 Mig Guns; Tweco® Mini Mig Guns; Tweco® No. 1 Mig Guns
900-7489	.044 in	0.035 in	Bernard® EZ Feed MIG Guns; Q-Guns™ Series MIG Guns; S-Guns™ Series MIG Guns
900-14T-35	.044 in	0.035 in	250/400; Tweco® No. 2, 3, 4 Mig Guns
900-14H-45	.054 in	0.045 in	250/400; Tweco® No. 2, 3, 4 Mig Guns
900-14T-45	.054 in	0.045 in	250/400; Tweco® No. 2, 3, 4 Mig Guns
900-14H-52	.064 in	0.052 in	Anchor Brand® 250/400; Tweco® No. 2, 3, 4 Mig Guns
900-14H-116	.073 in	.0625 in	250/400; Tweco® No. 2, 3, 4 Mig Guns
900-000-068	0.041 in	0.035 in	M15; M25/25M; M40/40AL
900-14-35	0.044 in	0.035 in	250/400; Tweco® No. 2, 3, 4 Mig Guns
900-14-45	0.054 in	0.045 in	250/400; Tweco® No. 2, 3, 4 Mig Guns
900-14-52	0.064 in	0.052 in	Best Welds® 250/400 Gun; Tweco® No.2/No.3/No.4 Gun

Eliminator® Style Contact Tips

Features:
• Machined from a copper alloy tubing providing a consistent and smooth inside diameter surface.
• Patented contact tip providing a cam style connection into the mating gas diffuser.
Test & Approvals: CE
Wire Size: 0.045 in
Type: Standard

SKU	Tip I.D.
358-1160-1613	0.054 in

Heavy Duty Contact Tips

Features:
• Easy identification ‑ Each contact tip is marked showing Part No. and wire diameter.
• Inside diameter tolerance is held to +/‑.003 in.
• Machined from a copper alloy tubing providing a consistent and smooth inside diameter surface.
• Contact tips manufactured from extruded or gun‑drilled copper alloy.
• Contact tips in either threaded and/or twist lock.
Type: Optional Heavy-Duty
Used With: No. 2, 3, & 4 Guns
Overall Length: 1.5 in

SKU	Tip I.D.	Material	Wire Size
358-1140-1204	0.054 in	DHP Copper Alloy	0.045 in
358-1140-1206	0.073 in	DHP Copper Alloy	1/16 in

Standard Contact Tips For Weldskill Guns

Features:
• For Weldskill® guns.
Wire Size: 0.045 in
Type: Standard Contact Tip
Used With: 250A & 400A Guns
Overall Length: 1.50 in

SKU	Tip I.D.	Material
358-1140-1244	0.054 in	Copper Alloy

WeldSkill Contact Tips

SKU	Tip I.D.	Wire Size	Length	Material
358-1140-1167	0.044 in	0.035 in	1.5 in	122 DHP Copper Alloy

Centerfire Diffusers

Features:
• Easy‑to‑use and high performing.
• Provide better arc starts, less spatter and more consistent welds.
• Mates better with contact tip for better conductivity.
Material: Brass

SKU	Type	Used With	Size Group
360-DS-1	Diffuser	Smaller Tapered Nozzles	Small
360-D-1	Gas Diffuser	Centerfire HD Nozzles; Q-Gun	Large
360-D118Q	Gas Diffuser	For Tweco® & Lincoln® MIG Guns	Small

Gas Diffusers

Features:
• Industry part number easily recognizable.
• Meets or exceeds OEM quality and performance.
Material: Brass

SKU	Type	Used With
900-4335	Bernard® Gas Diffuser	Bernard® Style MIG Guns & 4200 and 7400 Series Contact Tips, 200-300A
900-52FN	Gas Diffuser	Best Welds 250 Amp; Tweco® No. 2 Mig Guns; No. 3 & 4 Nozzles
900-054A	Gas Diffuser	Best Welds 400 Amp; Tweco® No. 2 & 4 Mig Guns
900-169-728	Gas Diffuser	M25/25M; M40.40AL
900-0052	Gas Diffuser (Standard)	Best Welds 250 Amp; Tweco® No. 2 Mig Guns
900-404-3	Gas Diffuser Retaining Head	Tregaskiss® Style Mig Guns

Shock Washer/Insulators

Features:
• Industry part number easily recognizable.
• Meets or exceeds OEM quality and performance.

SKU	Type	Used With
900-0032	Insulator for Slide on Nozzle	Best Welds 250 A; Tweco® No. 2 Mig Guns
900-034A	Insulator for Slide on Nozzle	Best Welds 400 A; Tweco® No. 4 Mig Guns
900-34CT	Insulator-Coarse Threaded	Best Welds 400 A; Tweco® No. 4 Mig Guns

Insulators

Features:
• Permits lower operating temperatures to avoid overheating.
• Improves nozzle seal.

SKU	Type	Used With
358-9443-3183	Insulator	For Extreme Angle-Arc K4000 Torch

MIG Torch Gun Diffusers

Features:
• For traditional style guns.
• Reliable.
Material: 360 Brass Alloy
Overall Length: 1.25 in

SKU	Type	Used With
358-1540-1100	Diffuser	No. 400 Gun

Spray Master™ Heavy Duty Torch Gun Diffusers

Features:
• Field repairable cable connection.
• Steel spring strain reliefs.
• One‑piece molded handle for high impact strength.

SKU	Type	Used With
358-1520-1130	Diffuser	250 A Spray Master MIG Guns

Standard Nozzle Insulators

Features:
• Field repairable cable connection.
• Steel spring strain reliefs.
• One‑piece molded handle for high impact strength.

SKU	Type	Used With
358-1340-1100	Insulator	24 Series Standard Nozzle, 34 A

MIG Welding Liners

Features:
• 100% tested prior to shipment to ensure smoothest wire feed.
• Liners won’t gap when bent.
• Quick and simple replacement without gas.
Wire Material: High Carbon
Used With: Legacy Q‑Gun

SKU	Type	Length	Wire Size	Wire Size
360-L3A-15	Universal	15 ft	0.035 in	0.045 in
360-L4A-15	Universal	15 ft	0.045 in	1/16 in

Mig Liners

Features:
• Industry part number easily recognizable.
• Meets or exceeds OEM quality and performance.

SKU	Length	Wire Size	Wire Size	Used With
900-44-116-15	15 ft	.0625 in	.0625 in	Guns: M10, M15, M25/25M, M40/40AL
900-194-011	15 ft	0.030 in	0.035 in	Guns: M10, M15, M25/25M, M40/40AL
900-35-40-15	15 ft	0.030 in	0.035 in	Guns: M10, M15, M25/25M, M40/40AL
900-42-3035-15	15 ft	0.030 in	0.035 in	Guns: M10, M15, M25/25M, M40/40AL
900-194-012	15 ft	0.035 in	0.045 in	Guns: M10, M15, M25/25M, M40/40AL
900-42-4045-15	15 ft	0.040 in	0.045 in	Guns: M10, M15, M25/25M, M40/40AL
900-44-3545-15	15 ft	0.040 in	0.045 in	Guns: M10, M15, M25/25M, M40/40AL
900-44-116-25	25 ft	.0625 in	.0625 in	Guns: M10, M15, M25/25M, M40/40AL
900-44-3545-25	25 ft	0.035 in	0.045 in	Guns: M10, M15, M25/25M, M40/40AL

WeldSkill Conduit Liners

Features:
• Zinc plated spring wire to minimize corrosion on the metal surface.
• Each wire conduit has a brass alloy machined stop on the back end.
• Easy identification ‑ Part No.
• rolled stamped on the outside surface of the brass stop.
Wire Size: 0.035 in
Wire Size: 0.045 in
Wire Material: Steel

SKU	Used With	Length
358-1440-1140	300 A to 450 A	15 ft

Nozzle Kleener® Tools

Features:
• Engineered to remove spatter without scarring nozzle, tip or gas diffuser areas, without disassembly.
• Ground and hardened to 55rc.

SKU	Size Group	Wt.
388-007002X	1/2 in Nozzle; 5/16 in Tip	0.21 lb
388-007004X	5/8 in Nozzle; 3/8 in Tip	0.18 lb
388-007003X	5/8 in Nozzle; 5/16 in Tip	0.20 lb

Centerfire Nozzles

Features:
• Nozzles have built‑in spatter shield that smooths and concentrates gas flow.
• Nozzles allow fixed contact tip positioning at flush, 1/8 in and 1/4 in recess and 1/8 in extension for consistent welds.
• Provide better arc starts, less spatter and more consistent welds.

SKU	Nozzle Style	Bore Size	Used With
360-NT-3800C	Flush/Tapered	3/8 in	Large Centerfire™ Diffuser
360-NST-3818B	1/8 in Tip Recess	3/8 in	Small Centerfire Diffuser
360-NS-5818C	1/8 in Tip Recess	5/8 in	Small Centerfire Diffuser
360-N-5814C	1/4 in Tip Recess	5/8 in	Large Centerfire Diffuser
360-N-5818C	1/8 in Tip Recess	5/8 in	Large Centerfire Diffuser
360-NS-5818B	1/8 in Tip Recess	5/8 in	Q-Gun
360-N-5818B	1/8 in Tip Recess	5/8 in	Q-Gun
360-NS-1218C	1/8 in Recess	1/2 in	Small Centerfire Diffuser
360-NS-1218B	1/8 in Tip Recess	1/2 in	Small Centerfire Diffuser

Centerfire™ HD Gas Nozzles

Features:
• Couple the Centerfire HD Nozzle Body (N‑HDC) with a Centerfire HD Nozzle Cone to form a complete Centerfire HD Nozzle.
• One nozzle body and one nozzle cone required.
• Use Centerfire HD Nozzles with standard Centerfire 4423R Insulator Caps, D‑1 Gas Diffusers and ‘T’ Series Contact Tips.
Used With: Bernard Air‑Cooled and W‑Gun™; Water‑Cooled MIG Guns; Fume Extraction MIG Guns; Dura‑Flux FCAW Guns

SKU	Nozzle Style	Bore Size
360-5818	1/8 in Tip Recess	5/8 in

Mig Nozzles

Features:
• Easy‑to‑use and efficient performance.
• Provide better arc starts, less spatter and more consistent welds.

SKU	Nozzle Style	Bore Size	Used With
360-NST-3800B	Flush	3/8 in	Q-Gun™ Series MIG Guns
360-N-5800C	Flush	5/8 in	Large Centerfire Diffuser

Nozzle Assemblies

Features:
• Features a removable nozzle cone that lowers downtime and consumable costs.
• Contains an increased wall thickness and insulating material to reduce the number of changeovers caused by heat degradation.
Used With: Tweco® Spraymaster 250 MIG guns

SKU	Nozzle Style	Bore Size
360-N1C58HQ	Copper Plated, Threaded	5/8 in

Quik Tip Nozzles

Features:
• Nozzles are available in threaded and slip‑on styles with a variety of orifice diameters for optimal shielding gas coverage.
• Use Quik Tip Contact Tips that are designed with a threaded taper lock that increases contact tip life by providing excellent heat transfer and electrical conductivity.
• A quick twist is all it takes to install Quik Tip Contact Tips.
• In case of burn nack, another quick twist will get you back on the job in moments.
Used With: Mig Guns

SKU	Nozzle Style	Bore Size
360-N1C58Q	Plated Copper, Threaded	3/4 in

Quik Tip™ Consumables Nozzles

Features:
• Nozzles available in threaded and slip‑on styles with a variety of orifice diameters for optimal shielding gas coverage.
• A quick twist is all it takes to install Quik Tip Contact Tips.
• Quik Tip Contact Tips are designed with a threaded taper lock that increases tip life by providing excellent heat transfer and electrical conductivity.
Used With: Quik Tip Series 2 Contact Tip

SKU	Nozzle Style	Bore Size
360-N2C38HQ	Copper Plated, Threaded	3/8 in

23 Series Nozzles

Features:
• Industry part number easily recognizable.
• Meets or exceeds OEM quality and performance.

SKU	Nozzle Style	Bore Size	Used With
900-23-50	1/8 in Recess, Self- Insulated	1/2 in	Tweco® 250/400 Amp No. 2, 3 & 4 Mig Guns
900-23-37	1/8 in Recess, Self- Insulated	3/8 in	Tweco® No. 2, 3 & 4 Mig Guns
900-23-62	1/8 in Recess, Self- Insulated	5/8 in	Tweco® 250/400 Amp No. 2, 3 & 4 Mig Guns
900-23T-37	Self-Insulated, Tapered	3/8 in	Tweco® 250/400 Amp No. 2, 3 & 4 Mig Guns

24 Series Nozzles

Features:
• Industry part number easily recognizable.
• Meets or exceeds OEM quality and performance.

SKU	Nozzle Style	Bore Size	Used With
900-24A-62SS	1/8 in Short-Stop, Recess	5/8 in	Tweco® 400 Amp No. 4 Mig Guns
900-24A-62	Adjustable	5/8 in	Tweco® 400 Amp No. 4 Mig Guns
900-24CT-62S	Coarse Thread	5/8 in	Tweco® 450 Amp No. 4 Mig Guns

Adjustable MIG Gun Nozzles

Features:
• Reliable quality and performance.
• For traditional style guns.
Used With: 250 Amp Tweco® No. 2 Mig Guns

SKU	Nozzle Style	Bore Size
900-22-50	Adjustable	1/2 in

MIG Gun Nozzle

Features:
• Reliable quality and performance.
• Requires Gas Diffuser 52.
Used With: Anchor Brand 250; Tweco No. 2 Mig Guns

SKU	Nozzle Style	Bore Size
900-22-62	Adjustable	5/8 in

MIG Gun Nozzle Adapters and Retainers

Features:
• Reliable quality and performance.
• For Miller® and Hobart MIG welding guns.

SKU	Used With
900-169-729	Miller®M25/25M, M40/40AL; Hobart MIG Welding Guns

MIG Gun Nozzles

Features:
• Reliable quality and performance.
• For Miller® and Hobart MIG welding guns.

SKU	Nozzle Style	Bore Size	Used With
900-169-724	1/8 in Tip Recess	1/2 in	Miller®M25/25M, M40/40AL; Hobart MIG Welding Guns
900-169-725	1/8 in Tip Recess	5/8 in	Miller®M25/25M, M40/40AL; Hobart MIG Welding Guns
900-169-715	Flush	1/2 in	Miller®M10/M15; Hobart H-9/H-10 MIG Welding Guns
900-200-258	Flush	1/2 in	Miller®M25/25M, M40/40AL; Hobart MIG Welding Guns
900-169-726	Flush	5/8 in	Miller®M25/25M, M40/40AL; Hobart MIG Welding Guns

Mig Nozzles

Features:
• Industry part number easily recognizable.
• Meets or exceeds OEM quality and performance.

SKU	Nozzle Style	Bore Size	Used With
900-401-6-62	1/8 in Recess, Heavy-Duty Insulated	5/8 in	Tregaskiss® XS180, XS260, XS300
900-4391	Heavy-Duty Insulated	5/8 in	Bernard® Q/S MIG Guns; 7400/1500 Series Contact Tips; 4235/4335 Gas Diffuser

Self-insulated MIG Gun Nozzles

Features:
• Reliable quality and performance.
• Part number displayed on exterior surface.
Used With: Tweco® 135 Amp Mini; No. 1 Mig Guns

SKU	Nozzle Style	Bore Size
900-21-50	1/8 in Recess	1/2 in

23 Series Nozzles

Features:
• For traditional style guns.
• Nozzle threads onto the conductor tube assembly.
Used With: No. 3 Gun (Self‑Insulated)

SKU	Nozzle Style	Bore Size
358-1230-1120	Self-Insulated, 1/8 in. Tip Recess	5/8 in

24 Series Nozzles

Features:
• For traditional style guns.
• Used in medium and heavy-duty welding application.
Used With: No. 4 Gun

SKU	Nozzle Style	Bore Size
358-1240-1424	Coarse Thread, 1/8 in. Tip Recess	5/8 in

Heavy Duty Style Nozzles

Features:
• For Spray Master™ style guns.
• Used in heavy-duty welding application.

SKU	Nozzle Style	Bore Size	Used With
358-1220-1306	1/8 in. Tip Recess	1/2 in	250 Amp MIG Guns
358-1240-1201	1/8 in. Tip Recess	5/8 in	Part No. HD54-16 (Stock No. 1540-1136); Part No. HD54-14 (Stock No. 1540-1135); Part No. HD54-EL (Stock No. 1540-1137)

WeldSkill 23 Series Nozzles

Features:
• Tapered three‑piece nozzle design includes nozzle housing, nozzle insert and nozzle insulator that’s made from G7 silicone material, providing the electrical insulation needed from the gas diffuser.
• Easy identification.
• Does not require an additional insulator.
• Nozzle threads onto the gas diffuser.
Used With: 52FN; WS52FN Gas Diffusers Or MS450; WM400; Tweco #4 Style MIG Gun Conductor Tubes

SKU	Nozzle Style	Bore Size
358-1230-1012	1/8 in Tip Recess	5/8 in

Mig Torch Stand Magnetic Base

Features:
• Helps keep torch away from table clutter.
• Protects torch head from inadvertent damage.
• Magnetic base offers great flexibility as it attaches to any steel surface.
• Magnetic base prevents slippage of stand.
Material: Magnet; Steel
Style: Stand with Magnetic Base
Length: 5.5 in

SKU	Used With	Type
900-BW-MMTS	MIG Torch	Welding Accessory

Mig Guns

Air Cooled MIG Guns

Features:
• Designed to use Tweco® style front end consumables.
• Comfort grip trigger and handle.
• Easy swivel gun tube.
• Optional Miller® style conductor tube and front end consumables available.
Cable Length: 15 ft

SKU	Gas Type	Welding Amp @ Duty Cycle	Wire Size
900-250153035M	Argon/CO2	280 A @ 60 %; 250 A @ 80 %	0.03 in - 0.035 in
900-250153545M	Argon/CO2	280 A @ 60 %; 250 A @ 80 %	0.035 in - 0.045 in
900-400153545M	Argon/CO2	400 A @ 60 %; 350 A @ 80 %	0.035 in - 0.045 in

MIG Guns For Miller® Consumables

Features:
• Convenient mig guns are designed for use with Miller® style front end consumables.
• Comfort grip trigger and handle for easy usage.
• Heavy-duty spring strain relief.
Welding Amp @ Duty Cycle: 250 @ 80 % A; 280 @ 60 % A
Wire Size: 0.03 in ‑ 0.035 in
Cable Length: 15 ft

SKU	Cooling Method
900-250M153035M	Air

WeldSkill® Air Cooled MIG Guns

Features:
• Fiber insulated conductor tube.
• Three‑wire cable hose.
• For use with standard Tweco® consumables.
Test & Approvals: CE
Welding Amp @ Duty Cycle: 250 A @ 60 %
Wire Size: ‑ 0.045 in
Cable Length: 15 ft

SKU	Gas Type	Cooling Method	Wire Size	Cable Length
358-1027-1032	Mixed Gases	Air	0.045 in	15 ft

PLASMA CUTTING

Plasma Parts

Shield Caps

Features:
• Specifically designed for the SL60 or SL100 plasma 1 Torch.
• Suitable for all Thermal Dynamics Cutmaster plasma cutters.
• For use with Maximum Life Shield Cup to protect plasma cutting tip when performing drag shield cutting tasks at 70 amps or above.

SKU	Type	For Unit
365-9-8236	80A Shield Cap	SL 60; SL 100
365-9-8235	Shield Cap, Drag, 50A-60A	SL 60; SL 100

Shield Cups for SL 60, SL 100

Features:
• Specifically designed for the SL60 or SL100 plasma 1 Torch.
• Suitable for all Thermal Dynamics Cutmaster plasma cutters.

SKU	Used With
365-9-8218	SL 60; SL 100
365-9-8237	SL 60; SL 100

1Torch™ Electrodes

Features:
• Designed for use with 1Torch® RPT torches.
• OEM consumable.

SKU	For Unit
365-9-8232	SL100
365-9-8215	SL60; SL100

Plasma Electrodes

Features:
• Helps improve cutting performance.
• OEM consumable.
• Withstand rigorous use under nearly any condition.

SKU	For Unit	Material	Type	Amps
365-9-8402	PCH/M 102	Copper; Hafnium	Cutting	80 A
365-9-0096	SL40	—	—	20 A; 40 A

Start Cartridges

Features:
• 1Torch™ RPT torch is the first plasma cutting torch that performs with virtually all plasma cutting power supplies.
• 1Torch works with high frequency start systems.

SKU	Type	For Unit
365-9-8213	Start Cartridge	SL 100; SL 60

Plasma Tips

Features:
• Extended tip.
• Provides maximum visibility and accessibility.

SKU	Type	For Unit
365-9-8208	40 Amp, Standoff	SL60; SL100

Plasma Torches

TX504 Torch Swirls

Features:
• Convenient self-lighting triggers.
• Quick disconnect couplings between handle and tips.

SKU	Gas Type	Applications
341-0386-1293	MAPP®; Propane	High Capacity Applications

SOLDERING & BRAZING

Soldering/Brazing Kits

Basic Pencil Flame Torch Kits

Features:
• Brass burn tube for durability.
• Solid brass regulators for durability.
• Adjustable flame for controlled heat output.
• Produces 1/2” wide pencil flame for light work.
Gas Type: Propane
Includes: 14.1 oz. Propane Cylinder; UL2317 Torch

SKU	Process	Flame Type
189-368374	Heating; Melting; Soldering; Thawing	Adjustable

Multi-Application MAPP® Kits

Features:
• Pressure regulated to operate in all directions.
Gas Type: MAPP® (Methyl Acetylene-Propadiene)
Includes: 16 oz MAPP® Cylinder; TS4000T Torch Head

SKU	Process
189-361484	Brazing; Soldering; Sweating; Melting; Heating

Multi-Use Torch Kits

Features:
• Trigger-start ignition easily ignites the flame.
• Flame control valve easily sizes flame and extinguishes when finished.
• Versatile webbed flame completes a variety of household projects including small diameter soldering, thawing, melting and heat application.
Gas Type: Propane
Includes: 14.1 oz Propane-Filled Cylinder; TS3500 Torch

SKU	Process	Flame Type
189-TS3500KC	Heating; Soldering	Adjustable

Self-Igniting Torch Kits

Features:
• Trigger start for ease of lighting.
• Stainless steel burn tube and brass tip for durability.
• Adjustable flame control.
Gas Type: Propane
Includes: TS3500 Torch

SKU	Process	Flame Type
189-361519	Heating; Melting; Soldering; Thawing	Adjustable

SureFire™ Self Igniting Torch Kits

Features:
• High intensity, larger flame tip.
• Instant on/off ignition for ease-of-use and one-handed operation.
• Large solid brass knob for easy variable flame control.
• Cast aluminum body construction for safety and durability.
Gas Type: MAPP
Includes: Torch; Cylinder

SKU	Process	Flame Type
189-361492	Heating; Melting; Soldering; Thawing	Adjustable Webbed

Soldering and Brazing Kits

Features:
• For situations where Swirl Technology is too much, Sof-Flame torch kits offer proven durability and performance for plumbing applications in harsh environments.
• Tips have a threaded connection and feature a removable orifice screw.
• Use the Snappy Adapter to connect “A” style tips.
Gas Type: Acetylene
Includes: AR-B Regulator; WA-400 Handle; AH-12 Hose; S-4 Tip; B Tank Connection

SKU	Process
341-0386-0090	Welding; Soldering

Soldering/Brazing Torches

Basic Pencil Flame Torches

Features:
• Produces a high volume 1/2” pencil point flame for detail work.
Process: Soldering; Heating

SKU	Gas Type	Body Material
189-UL2317	Propane	Brass

Heat Shrink Torches

Features:
• Tackle large jobs easily with an ultra-wide brush flame.
• With dual fuel versatility, this torch is ideal for large surface projects like heat shrinking, woodworking, metalworking, vinyl wrapping, and cooking.
Process: Cooking; Heating; Heat Treating; Metal Work; Woodworking

SKU	Gas Type	Body Material
189-361472	Propane; Map-Pro	Brass, Stainless Steel

High Heat Torch

Features:
• Work faster and more efficiently with maximum heat.
• Ideal for job site projects including large soldering, brazing, heat treating and light welding.
• Large, optimized swirl flame provides maximum heat output.
• Cast aluminum body for durability.
• Pressure regulated for consistent performance when tilted or momentarily inverted.
• Run-lock button keeps the torch lit for continuous use.

SKU	Gas Type	Process
189-ts8000BT	MAPP® (Methyl Acetylene- Propadiene); Propane	Brazing; Heat Treating; Large Diameter Soldering; Light Welding
189-361524	MAPP® (Methyl Acetylene Propadiene)	Brazing; Heat Treating; Large Diameter Soldering

Jumbo Flame Torches

Features:
• Produces high-volume 1 1/2” flame for heavy-duty soldering and heating jobs.
• Brass burn tube and solid brass regulators for durability.
• Fuel control knob.
• Adjustable flame control.
• Ergonomically designed comfort grip.
Process: Soldering; Heating

SKU	Gas Type	Body Material
189-361473	Propane	Brass

Trigger Start Micro Torches

Features:
• Micro flame butane torch for light, detailed work.
• Trigger start for ease of use.
• Refillable for convenience.
Process: Soldering
Includes: Electrical Soldering Tip

SKU	Gas Type
189-ST2200T	Butane

Trigger Start Swivel Head Torches

Features:
• 360 degree swivel torch to access tight spots.
• Trigger start makes lighting more convenient by eliminating the need for a sparker.
• Efficient swirl flame produces maximum heat output.
• Double “O” ring connection to help prevent leakage.
• Pressure regulated for consistent performance.
Process: Brazing; Heat Treating; Large Diameter Soldering

SKU	Gas Type	Body Material
189-TS99T	Propane; Map-Pro	Brass

Trigger-Start Hose Torches

Features:
• Instant on/off trigger igniter for simple one-handed operation.
• Adjustable flame control knob for ease in switching between different applications.
• Solid brass regulator is pressure-regulated to burn in any direction.
• Stainless steel burn tube constructed for durability and built to last.
• Lock button keeps torch lit for finger-free use.
Process: Soldering; Heating
Includes: Fat Boy Fuel Holster

SKU	Gas Type	Body Material
189-BZ8250HT	Propane; Map-Pro	Stainless Steel, Plastic

Instant Ignition Trigger Torches

Features:
• Very hot turbine flame with adjustable valve.
• Lights with the squeeze of a button.
• Replacement tip end.
• Cylinders Sold Separately.
Process: Soft Solder 1/4 - 2-1/2 in; Silver Brazing 1/4 - 1-1/4 in

SKU	Gas Type
328-GP-600	Propane; FG2; MAPP

TIG WELDING

Tig Torch Parts & Accessories

Power Cable Adapters

Features:
• Forged one-piece construction.
• Order adapters separately if needed; not included in torch packages.

SKU	Used With	Thread - TPI or Pitch
900-105Z57	One-Piece Air-Cooled Torch Packages	3/8 in - 24
900-45V62	One-Piece Air-Cooled Torch Packages	7/8 in - 14

Back Caps

Features:
• Add a trusty tool to your kit with this industry standard part.
• High quality back caps offer a reliable solution.
Length: 1 7/8 in

SKU	Type	Used on Torch(es)
900-57Y04	Short	17; 18; 26

Collet Bodies

Features:
• Add a trusty tool to your kit with this industry standard part.
• High quality collet bodies offer a reliable solution.
Material: Copper

SKU	Used On	Size
900-10N28	17, 18, 26	1/8 in
900-10N32	17, 18, 26	3/32 in
900-13N28	9, 20, 22, 25	3/32 in

Collets

Features:
• Add a trusty tool to your kit with this industry standard part.
• High quality collets offer a reliable solution.
Material: Copper

SKU	Used On	Size
900-10N25	17;18;26	1/8 in
900-10N24	17;18;26	3/32 in
900-13N23	9;20;25	3/32 in

Gas Lense Collet Bodies

Features:
• Gas lenses provide a more efficient stream of shielding gas to the welding process.
• The gas lens virtually eliminates turbulence in the gas shielding stream as it emerges from the nozzle.
• Two-piece construction.
Material: Brass/Copper

SKU	Used On	Size	Type
900-45V26	17;18;26	3/32 in	Medium Gas Lens Collet Body
900-45V44	9;20;22;25	3/32 in	Small Gas Lens Collet Body
900-45V64	17;18;26	3/32 in	Large Gas Lens Collet Body
900-995795	17;18;26	1/8 in	Large Gas Lens Collet Body
900-45V27	17;18;26	1/8 in	Medium Gas Lens Collet Body
900-45V45	9;20;22;25	1/8 in	Small Gas Lens Collet Body

Gas Lens Collet Bodies

Features:
• Virtually eliminates turbulence in the gas shielding stream as it emerges from the nozzle.
• Long stable stream allows the electrode to be extended farther beyond the end of the nozzle for improved visibility of the weld zone.
Material: Brass/Copper

SKU	Used On	Size
366-45V27	A-150, A-200, A-250, W-350, W-410, W-225 Modular, and W-500 Pencil Auto TIG Torches	1/8 in
366-45V26	A-150, A-200, A-250, W-350, W-410, W-225 Modular, and W-500 Pencil Auto TIG Torches	3/32 in
366-45V43	9; 20; 22; 24; 25	1/16 in
366-45V45	WP-9, WP-9V, WP-20, WP-25 Series Torches	1/8 in
366-45V44	WP-9, WP-9V, WP-20, WP-25 Series Torches	3/32 in

Large Diameter Gas Lens Collet Bodies

SKU	Size
366-995795	1/8 in

Alumina Nozzle TIG Cups

Features:
• Exceptionally high impact resistance, heat resistance and thermal conductivity.
• Higher heat resistance than lava nozzles.
• Most popular nozzle type in TIG welding.
• Resist splatter build-up.
• Recommended for most welding operations except for use in confined areas.
• Made from high strength alumina.
• Has very good electrical insulating properties.

SKU	Used On Torch(es)	Nozzle Size	Orfice Opening Size	Length	Type
900-54N14	17; 18; 26	8	1/2 in	1 5/8 in	Gas Lens
900-57N74	9; 12; 17; 18; 20; 22; 25; 26; 27	8	1/2 in	1 7/8 in	Large Gas Lens
900-53N88	9; 12; 17; 18; 20; 22; 25; 26; 27	10	5/8 in	1 7/8 in	Large Gas Lens
900-53N87	9; 12; 17; 18; 20; 22; 25; 26; 27	12	3/4 in	1 7/8 in	Large Gas Lens

Cup Gaskets

Features:
• Industry standard part.
• High quality.
Used on Torch (es): 17; 18; 26

SKU	Width	Height
900-54N63	1.2 in	0.6 in

Power Cables

Features:
• Industry standard part number is easily recognizable.
• Heavy-duty construction.

SKU	Length	Used With	Material
900-45V04R	25 ft	20; 24W; 25	Nylon Braided Rubber Hose
900-57Y03R	25 ft	9; 17	Rubber

1.5% Lanthanated Tungsten Electrodes

Features:
• Non-radioactive substitute for 2% thoriated tungsten.
• Similar characteristics to ceriated tungsten.
Material: 1.5% Lanthanated

SKU	Dia.	Length	Wt.
900-187GL	1/8 in	7 in	0.64 lb
900-3327GL	3/32 in	7 in	0.63 lb

2% Ceriated Ground Tungsten Electrodes

Features:
• Different electrical characteristics from thoriated.
• Long-lasting.
Material: 2% Ceria Ground

SKU	Dia.	Length	Wt.	Type
900-1167GC2	1/16 in	7 in	0.23 lb	Tungsten Electrode
900-187GC2	1/8 in	7 in	0.65 lb	Tungsten Electrode
900-3327GC2	3/32 in	7 in	0.63 lb	Tungsten Electrode

2% Lanthanated Tungsten Electrodes

Features:
• Non-radioactive substitute for 2% thoriated tungsten.
• Similar characteristics to ceriated tungsten.
Test & Approvals: Specifications: AWS A5.12M/A5.12:2009 (ISO 6848:2004 MOD) CSA W117.2-M87

SKU	Dia.	Length	Wt.	Type
900-187GL2	1/8 in	7 in	10.0 oz	Tungsten Electrode
900-3327GL2	3/32 in	7 in	6.1 oz	Tungsten Electrode

E3 Tungsten Electrodes

Features:
• Longer life than thoriated electrodes.
• Non-radioactive additives.
• Can be used in both AC and DC processes.
• Excellent arc starting and stability

SKU	Dia.	Length	Wt.
900-1167GE3	1/16 in	7 in	3.5 oz
900-187GE3	1/8 in	7 in	10.0 oz
900-3327GE3	3/32 in	7 in	6.1 oz
900-3/32X7E3-3	3/32 in	7 in	.14 lb

Mild Steel Electrodes

Features:
• Longer life than thoriated electrodes.
• Non-radioactive additives.
• Can be used in both AC and DC processes.
Test & Approvals: AWS A5.1
Material: Carbon Steel

SKU	Dia.	Length	Wt.	Type
6010 Alloy—Recommended for pipe and non-critical, small diameter piping. Traditional DC+ choice for dirty, rusty or coated steel.
900-6010-18X5	1/8 in	14 in	5 lb	E6010
900-6010-18X50	1/8 in	14 in	50 lb	E6010
6011 Alloy—For AC welders. Deep penetration makes this acceptable for dirty, painted, greasy or galvanized metal. Best choice for sheet metal edge.
900-6011-18X5	1/8 in	14 in	5 lb	E6011
900-6011-18X50	1/8 in	14 in	50 lb	E6011
6013 Alloy—General purpose welding in all positions. Ideal for sheet metal fabrication on clean stock. Superior bead appearance with medium penetration.
900-6013-18X5	1/8 in	14 in	5 lb	E6013
7014 Alloy—Highest deposit rate and fastest speed. All position welds usually on irregular, poor fit and thicker steel.
900-7014-18X5	1/8 in	14 in	5 lb	E7014
7018 Alloy—All positions, iron powder type electrode. X-Ray quality welds. Great for medium grade carbon and cold rolled steels. Welds on AC or DC reverse polarity.
900-7018-18X5	1/8 in	14 in	5 lb	E7018
900-7018-18X50	1/8 in	14 in	50 lb	E7018
900-7018-332X5	3/32 in	14 in	5 lb	E7018
900-7018-332X50	3/32 in	14 in	50 lb	E7018
900-7018-532X5	5/32 in	14 in	5 lb	E7018

Pure Ground Tungsten Electrodes

Features:
• Generally used in the welding of aluminum or magnesium.
• Good arc starting stability when used with AC.
• Tip forms clean balled end.

SKU	Dia.	Length	Wt.
900-1167G	1/16 in	7 in	0.23 lb
900-187G	1/8 in	7 in	0.66 lb
900-3327G	3/32 in	7 in	0.41 lb

Zirconiated Ground Tungsten Electrodes

Features:
• Typically used for welding with higher AC currents on nonferrous metals.
• Also used for high speed welding.

SKU	Dia.	Length	Wt.
900-187GZ	1/8 in	7 in	0.65 lb
900-3327GZ	3/32 in	7 in	0.11 lb

Atom Arc 7018 Electrodes

Features:
• Premium quality electrode.
• Wide range of welding parameters.
• Reduced post weld clean up.

SKU	Dia.	Length	Wt.
537-255011827	1/8 in	14 in	10 lb
537-255011819	1/8 in	14 in	50 lb
537-255013328	3/32 in	14 in	10 lb
537-255013310	3/32 in	14 in	50 lb
537-255015315	5/32 in	14 in	50 lb

Ez Purge Tapes

Features:
• For conventional uses in the field such as heating, air conditioning, refrigeration and acting as a vapor barrier.
• Use to cap pipe ends during transport.
• Controls the release of gas by sealing the root gap.
• Aluminum coated adhesive withstands temperature up to 500 °F (260 °C).
• Halogen and chlorofluorocarbon-free.

SKU	Type	Width	Length
047-EZ-T2.0	Roll	2 1/2 in	75 ft

Water Soluble Paper

Features:
• Provides a convenient and cost effective method for creating purge chambers for pipe welding.
• Low air permeable purge gas barrier for TIG welding.
• Excellent barrier for retaining noble gas (argon and argon/helium mix).
• Simple and fast construction.
• Dissolves effortlessly and rapidly during water or steam hydro-test, leaving no residue in pipeline.
Test & Approvals: EPA; CE

SKU	Width	Length
047-ASWT-2	2”	300’
047-ASW-35/R-15	15 1/2”	165’

Tig Torch Stand Magnetic Base

SKU	Used on Torch(es)	Type
900-BW-MTTS	Tig Torches	Welding Accessory

Tungsten Holders

Features:
• Holds four different sizes of tungsten.
• Pocket clip on holder for easy carrying.
• Aluminum body.

SKU	Type
905-0-100-H	Tungsten Holder

Tig Torches & Torch Bodies

17 Series TIG Torches

Features:
• Air-cooled TIG torch body.
• With fingertip gas control valve.
• Delivers high-capacity performance on thin to medium gauge materials.
Material: Silicone Rubber
Cooling Method: Air
Includes: Includes handle, vinyl power cable, long back cap, gas hose and water hose.

SKU	Head Type	Cable Length
900-17V-25-R	Rigid; w/Valve	25 ft

17FV TIG Torch Body

Features:
• Flexible neck.
• Features fingertip gas control valve.
• Comfortable ribbed handle.
Material: Silicone Rubber
Cooling Method: Air
Includes: Torch Body

SKU	Head Type	Cable Length
900-17FV	Flex w/Valve	0 ft

17FV-25 TIG Torch Kit

Features:
• Flexible neck.
• Features fingertip gas control valve.
• Comfortable ribbed handle.
• Package kit includes TIG Torch Body, handle, power cable and long back cap.
• Kit includes handle, power cable and long back cap.
Material: Silicone Rubber
Cooling Method: Air
Includes: Includes handle, power cable and long back cap.

SKU	Head Type	Cable Length
900-17FV-25-R	Flex w/Valve	25 ft

17V TIG Torch Body

SKU	Head Type
900-017V	With Valve

9FV TIG Torch Body

Features:
• Quick-release tungsten adjustment.
• Flexible neck.
• Features fingertip gas control valve.

SKU	Head Type
900-09FV	Flex w/Valve

WP-17FV Air Cooled Tig Torch Bodies

Features:
• Flexible neck.
• With fingertip gas control valve.
• Heavy-duty two-piece power cable and ribbed handle are standard.
• Parts are interchangeable with WP-18, WP-26, and WP-26V models.
Cooling Method: Air
Includes: Torch Body; Flex Head; Gas Valve

SKU	Head Type
366-WP-17FV	Flexible

WP-17FV Air Cooled Tig Torch Kits

SKU	Head Type	Cable Length
366-WP-17FV-25-R	Flexible	25 ft

WP-17V Air Cooled Tig Torch Kits

Features:
• With or without fingertip gas control valve.
• Heavy-duty two-piece power cable and ribbed handle are standard.
• Parts are interchangeable with WP-18, WP-26, and WP-26V models.
Cooling Method: Air
Includes: Torch Body; Long Back Cap; 1PC Rubber Power Cable; Gas Valve; Handle

SKU	Head Type	Cable Length
366-WP-17V-25-R	Angled	25 ft

WP-20 Water Cooled Tig Torch Bodies

Features:
• Compact and well-balanced.
• Efficient, around-the-head water cooling for trouble free performance and long life.
• Parts are interchangeable with WP-9, WP-9P, and WP-25 models.
Cooling Method: Water
Includes: Torch Body; Cup Gasket

SKU	Head Type
366-WP-20	Angled

WP-20 Water Cooled Tig Torch Kits

SKU	Head Type	Cable Length
366-WP-20-25-R	Angled	25 ft

TORCH & WEED BURNERS

Self-Igniting Outdoor Torches

Features:
• The easy-start torch is designed to handle a variety of tasks.
• Helps light grills and fire pits without bending over or reaching.
• Use to control weeds on concrete or gravel without using chemicals and light fires.
• Trigger-start ignition easily ignites the flame.
• Large outdoor flame.
• Solid brass tip.
• Slip-resistant grip handle.
Gas Type: Propane
Handle Length: 36 in
Hose Length: 36 in
Includes: JT850 Torch

SKU	Output Power
189-JT850	20,000 Btu/h

BlazeBurner KP-320 Series Propane Torch Kits

Features:
• Flame adjustment valve.
• POL excess flow check valve and “B” connection.
• Lightweight and durable.
Gas Type: Propane
Handle Length: 32 in
Hose Length: 10 ft
Includes: AP-20M Torch; Piezo Electric Ignitor Tip; HPX-10 ft Hose

SKU	Output Power	Operating Pressure
328-KP-320MA	500,000 Btu	20 psi

Hotspotter All Purpose Propane Torches

Features:
• Flame tools are for exterior maintenance and repair.
• Hotspotter is an all-purpose propane torch that delivers at full cylinder pressure with no smoke and no fumes.
• Ergonomic handle with adjustable trigger.
• Hooks up to standard 20 lb. propane tank.
Test & Approvals: Meets NFPA 51 Specifications; CSA Approved
Gas Type: Propane
Handle Length: 31 in
Hose Length: 10 ft

SKU	Output Power	Type	Includes
312-WB-101	550,000 Btu/h	Heavy-Duty Open Flame Torch	Brass Propane Tank Adaptor; Brass Flow Control Shut-Off Valve; Spark Ignitor; Cast Iron & Steel Nozzle; Hose
312-WB-102	550,000 Btu/h	Standard Duty Open Flame Torch	Brass Propane Tank Adaptor; Brass Flow Control Shut-Off Valve; Spark Ignitor; Welded Tube Nozzle; Hose

Hotspotter All Purpose Propane Torches with
Push-Button Igniter

Features:
• Flame tools are for exterior maintenance and repair.
• Hotspotter is an all-purpose propane torch that delivers at full cylinder pressure with no smoke and no fumes.
• Ergonomic handle with adjustable trigger.
• Push button igniter for fast and safe lighting.
• Hooks up to standard 20 lb propane tank.
Handle Length: 31 in
Includes: Welded Tube Nozzle; Hose with POL and Excess Flow Check; Wrenches

SKU	Output Power	Hose Length
312-WB-100	550,000 Btu	10 ft

Hotspotter Replacement Parts

Features:
• Flame tools are for exterior maintenance and repair.
• Hotspotter is an all-purpose propane torch that delivers at full cylinder pressure with no smoke and no fumes.
• Ergonomic handle with adjustable trigger.
• Push button igniter for fast and safe lighting.
• Hooks up to standard 20 lb. propane tank.
Type: Neoprene

SKU	Hose Length	Gas Type
312-WB-100-25	10 ft	Propane

WELDING & CUTTING ACCESSORIES

Anti-Spatter & Chemicals

Anti-Spatters

Features:
• Helps protect MIG gun nozzles, contact tips, accessories and all welding zones during single- and multi-pass welding.
• Non-flammable.
• Reduces spatter build-up on MIG nozzles, prevents spatter adhesion.
Physical Form: Liquid
Color: Clear

SKU	Capacity Vol.	Chemical Compound
905-620-16OZ	16 oz	Solvent-Based
905-620-24OZ	24 oz	Methylene Chloride

Nozzle Dip Gels

Features:
• Prevents spatter build up on nozzles and tips.
• Odorless—no unpleasant or harmful odors.
Chemical Compound: Petroleum Jelly
Type: Anti-Spatter & Nozzle Shield
Color: Blue
Applications: MIG Welding

SKU	Capacity Vol.	Packing Type
905-NOZZLE-DIP	16 oz	Jar

Spat Safe Plus Anti-Spatters

Features:
• Prevents spatter adhesion.
• Non-messy formula—washes off easily.
• Environmentally friendly.
Chemical Compound: Water-based
Physical Form: Liquid
Color: Milky White
Applications: Protects parent metal, fixtures, nozzles, contact tips, welding zones, and accessories

SKU	Capacity Vol.	Packing Type
905-630-16OZ	16 oz	Aerosol Can

Welder’s Anti-Spatter Sprays

Features:
• Water-based formula allows easy clean-up without the use of solvent cleaners.
• Low odor.
• Rust-inhibiting additive prevents flash rust on in-process and surrounding metal surfaces.
• Non-hazardous decomposition.
Chemical Compound: Water; Dimethyl Ether; Lactic Acid; White Mineral Oil
Type: Anti-Spatter Spray Coating
Color: Milky-White Emulsion

SKU	Capacity Vol.	Physical Form
125-03083	16 oz	Liquid

Anti-Spatter 200

Features:
• Non-flammable.
• Provides weld prep protection on parts to be stored.
• Silicone Free.
• Liquid may be applied by brush or roller.
• Provides protection to MIG gun nozzles, contact tips, accessories and all weld zones during single and multi-pass welding.
Chemical Compound: Lecithin; Methylene Choride; Silicone-Free
Type: Solvent
Color: Clear
Applications: MIG Gun Nozzles; Contact Tips; Weld Zones

SKU	Capacity Vol.	Packing Type
368-DF200-16	16 oz	Aerosol Can

Enviro-Spat Water Based Anti-Spatters

Features:
• A superior non-solvent alternative anti-spatter designed to weld through wet.
• Contains no chlorinated solvents, fluorocarbons, silicones or hydrocarbon compounds.
• Easily removed with water rinse.
• Paint compatible-recommended for water based paints.
• Prevents weld spatter from adhering to MIG nozzles, contact tips and related accessories.
Chemical Compound: Surfactants
Type: Non-Solvent
Color: Orange
Applications: MIG Gun Nozzles; Contact Tips; Weld Zones

SKU	Capacity Vol.	Packing Type
368-DF400-16	16 oz	Aerosol Can

Nozzle Gels

Features:
• Provides excellent protection against weld spatter build-up on Mig gun nozzles, contact tips, positioners, stud welding chucks and electrode holders on all automatic and semi-automatic welding apparatus.
• Will not cause porosity.
Chemical Compound: Petrolatum
Color: Blue
Applications: MIG Gun Nozzles; Contact Tips; Positioners; Stud Welding Chucks; Electrode Holders on Welding Apparatus

SKU	Capacity Vol.	Packing Type
368-DF731-16	16 oz	Plastic Jar

Ultra Brand HTR120 Solutions

Features:
• Quickly, safely and economically removes heat tint and discoloration from weld heat effected zones.
• Most commonly used on stainless steel and aluminum although it is effective on other metal surfaces as well.
Chemical Compound: Phosphoric Acid
Physical Form: Liquid
Type: Removal Solution
Color: Clear
Applications: Stainless Steel

SKU	Capacity Vol.	Packing Type
368-HTR120-4X1	1 gal	Container

Anti-Spatters

Features:
• High-performance spatter release solution protects welding equipment, jigs and work surfaces from unwanted spatter.
• Readily biodegradable formula with no added color or scent.
• Rinses residue free for use prior to plating or painting.
• Free of silicone, Methylene Chloride and solvents.
• Nonflammable and non-corrosive formula.
• Safe for painted and plated metals.
Chemical Compound: Aqueous mixture
Physical Form: Liquid
Color: Clear

SKU	Capacity Vol.	Packing Type
676-1410000413454	1 gal	Jug
676-1410001213452	32 oz	Plastic Container with Spray Trigger
676-1400000113457	5 gal	Container

Dry Weld Spatter Protectants

Features:
• Powder formula dries to a white film.
• Just brush or wipe off residue after welding.
• Does not contain silicone.
• Surface can be painted after use.
Chemical Compound: Talc
Type: Anti-Spatter
Color: White

SKU	Capacity Vol.	Physical Form
425-SC0941000	12 oz	Liquid

Lube-Matic® Combo-Paks

Features:
• Cleans wire and reduce burnback 50%.
• Pre-treated with Lube Matic® liquid.
• Lubrication allows smooth feeding of wires with poor cast, helix, rust and long feed liners.
Chemical Compound: Red Pad Contains No Chemicals; Black Pad Impregnated with Alkyl-Aryl Siloxane Copolymer
Physical Form: Solid
Type: One Wire Pad; One Lube Pad

SKU	Color
388-007062	One Red; One Black

Lube-Matic® Liquids

Features:
• Helps feed all mild steel, fabricated, and core wires.
• Cuts rust and reduces wire drag 60%.
• Great for longer distance feed.
Chemical Compound: Methylene Chloride; Alkyl-Aryl Siloxane Copolymer
Type: Wire Lube
Color: Light Yellow
Applications: Welding

SKU	Capacity Vol.	Physical Form
388-007040	3.75 fl oz	Liquid

Lube-Matic® Lube Pads

Features:
• Pre-treated with Lube Matic® liquid.
• Lubrication allows smooth feeding of wires with poor cast, helix, rust and long feed liners.
Chemical Compound: Impregnated with Alkyl-Aryl Siloxane Copolymer
Physical Form: Solid
Color: Black

SKU	Applications
388-007060	Steel Wire

Lube-Matic® Wire Kleener® Pads

Features:
• Clean wire and reduce burnback 50%.
• Reduces wire drag by 60% and feeds wire more smoothly.
Physical Form: Solid
Type: Lube Pad
Applications: Aluminum and Steel Wire

SKU	Packing Type
388-007061	Pouch

NOZZLE-DIP® HD® Anti-Spatters

Features:
• Excellent cooling properties for longer tip and nozzle life.
• Can dip hot or cold, gel will not migrate into liner.
• Non flashing, biodegradable, paintable and non-toxic.
Chemical Compound: Cocamide Diethanolamine
Physical Form: Gel

SKU	Capacity Vol.	Packing Type
388-YOR-101-1PT	1 pt	Plastic Jar
388-007094	1 qt	Can

Nozzle-Kleen #2® Anti-Spatters

Features:
• Solvent-based, paintable, and non-flammable.
• Protects nozzles, diffusers, and tips.
• Smoke and odor free.
Chemical Compound: Methylene Chloride; Oleic Acid
Physical Form: Liquid
Color: Clear

SKU	Capacity Vol.	Packing Type
388-007022	16 oz	Aerosol Can

Nozzle-Kleen® Heavy Duty Anti-Spatters

Features:
• Outstanding fixture protection.
• Excellent for stainless steel.
• Non-flammable, paintable, no fluorocarbons and ozone friendly.
Chemical Compound: Methylene Chloride; Alkyl-Aryl Siloxane Copolymer
Physical Form: Liquid
Color: Clear
Applications: Pulsed Welding; Argon Rich Mixtures

SKU	Capacity Vol.	Packing Type
388-007020	16 oz	Aerosol Can

NOZZLE-KLEEN® Spat-R-Pruf® Anti-Spatters

Features:
• Convenient solvent-based, quick-drying aerosol that allows for pre-heat, higher duty cycles, and higher temperature applications.
• Paintable, non-flammable, and has no fluorocarbons.
• No methylene chloride.
Chemical Compound: White Mineral Oil; N-Butane; Propane; Oleic Acid
Physical Form: Liquid
Color: Colorless to Amber

SKU	Capacity Vol.	Packing Type
388-YOR-107-A	20 oz	Aerosol Can

Weld-Kleen® 350 Anti-Spatter

Features:
• Economical and safe.
• Biodegradable, non-toxic & paintable.
• Can be frozen.
Applications: Most Base Metal Applications

SKU	Capacity Vol.	Packing Type	Chemical Compound
388-007090	1 gal	Bottle	Water-Based Mixture
388-007089	1 qt	Spray Bottle	Water-Based Mixture
388-007088	13.64 oz	Aerosol Can	Water-Based; Dimethyl Ether
388-007091	5 gal	Pail	Water-Based Mixture
388-007092	55 gal	Drum	Water-Based Mixture

Weld-Kleen® Heavy Duty Anti-Spatters

Features:
• Solvent-based, paintable, and non-flammable.
• Protects fixtures, parts, and clamps.
• Smoke- and odor-free.
Chemical Compound: Methylene Chloride; Oleic Acid
Color: Clear

SKU	Capacity Vol.	Packing Type
388-007030	20 oz	Aerosol Can
